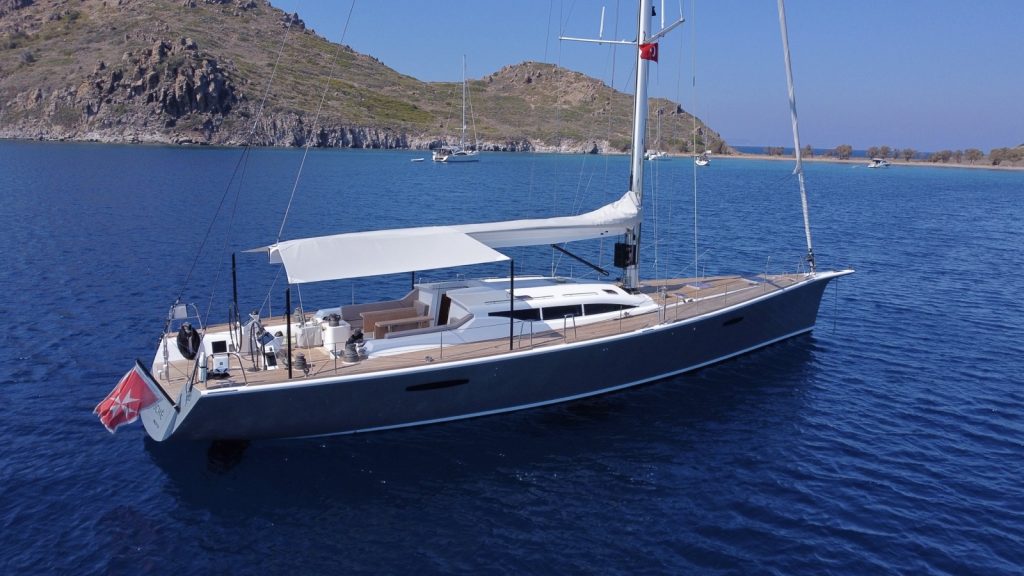

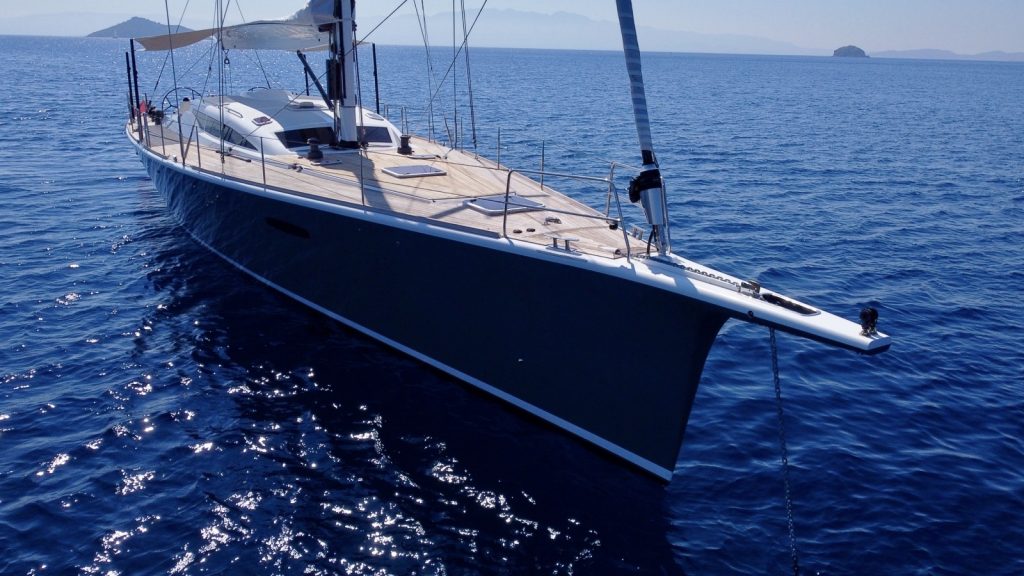

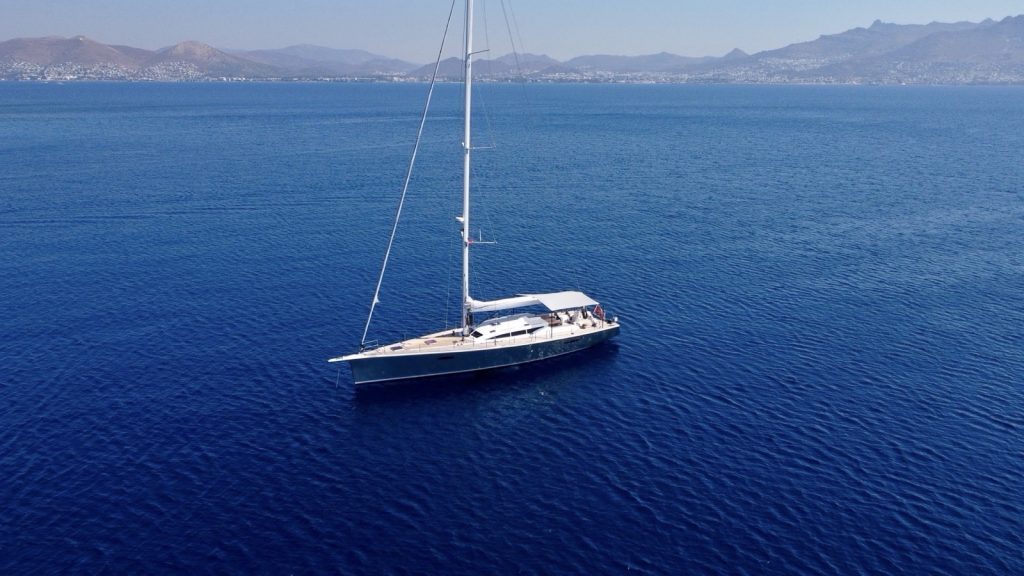

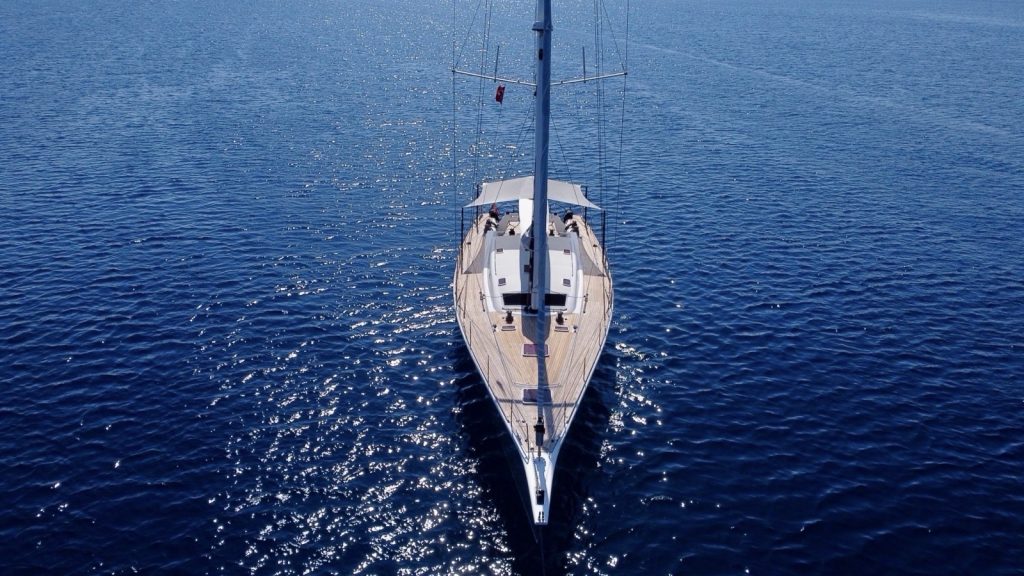

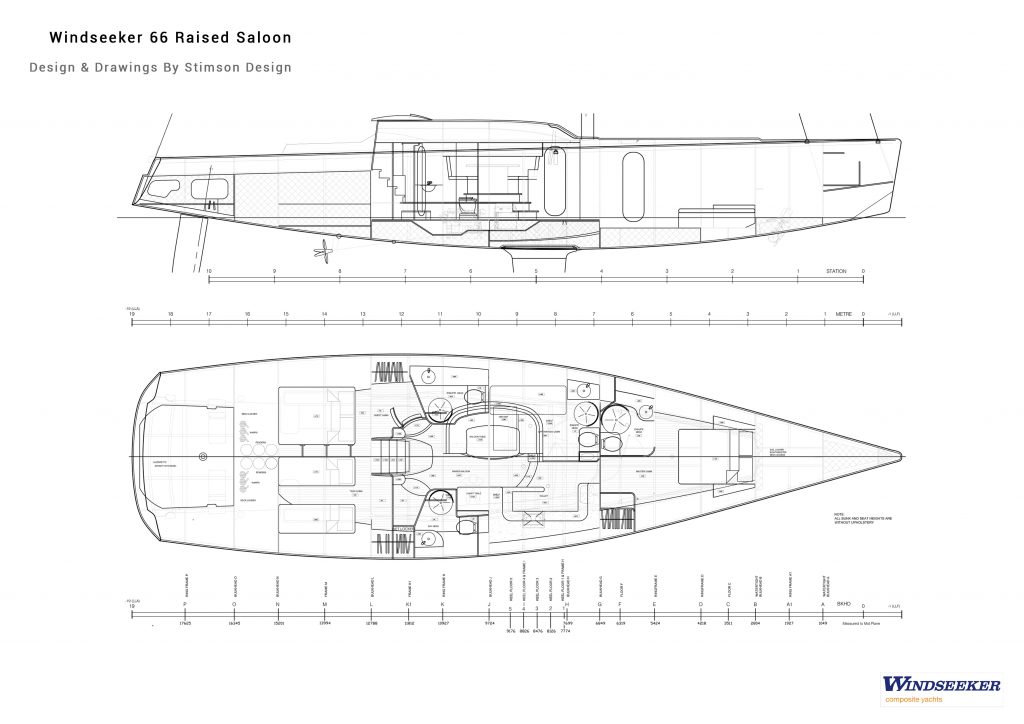

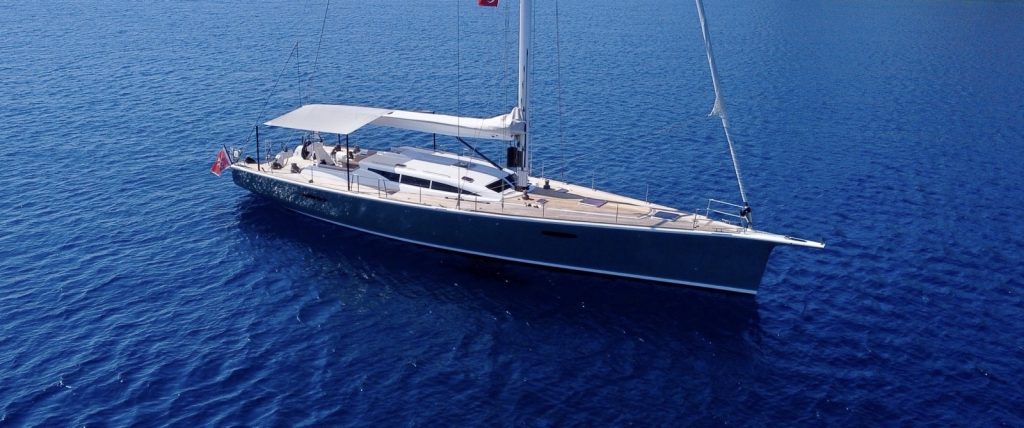

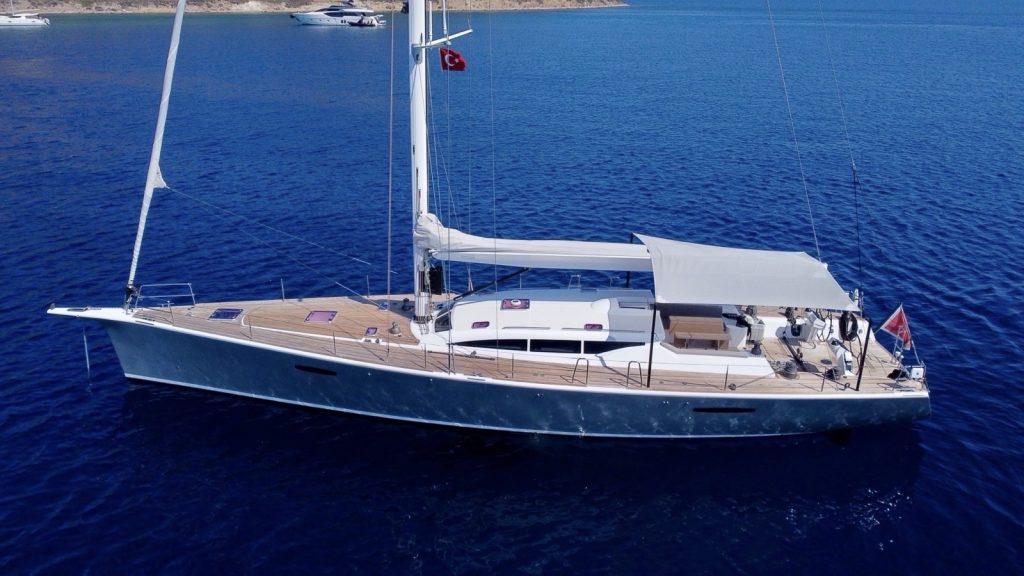

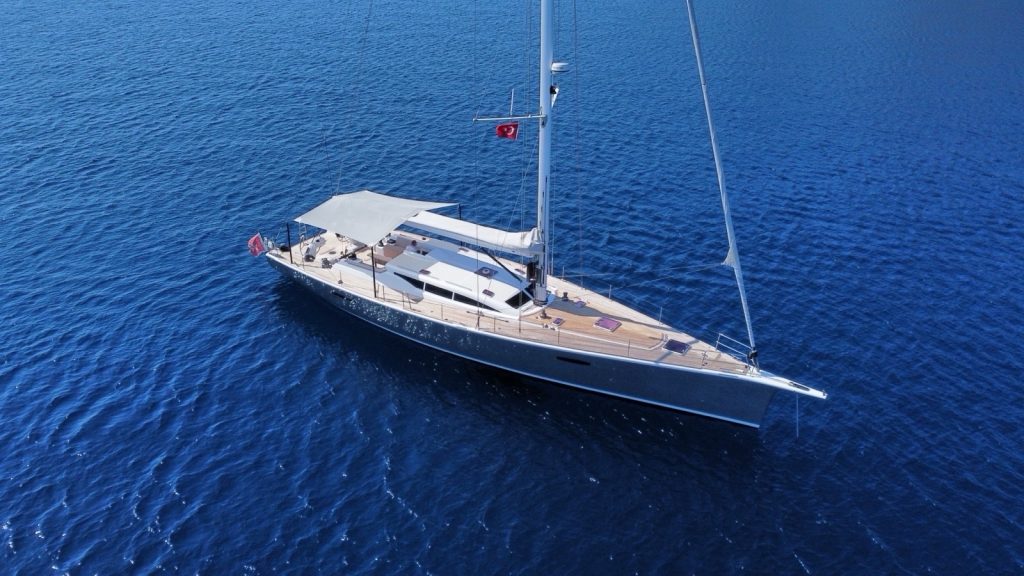

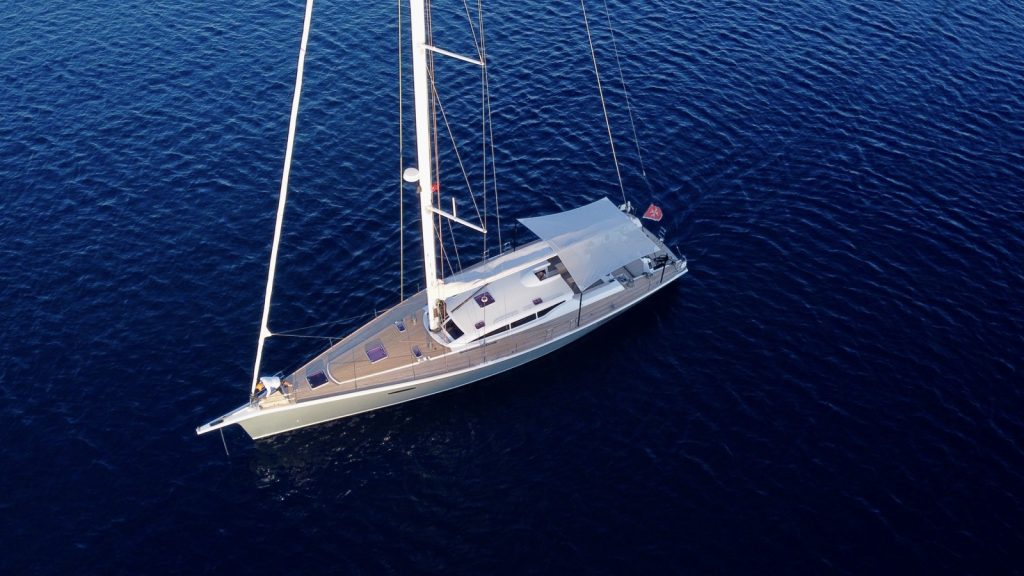

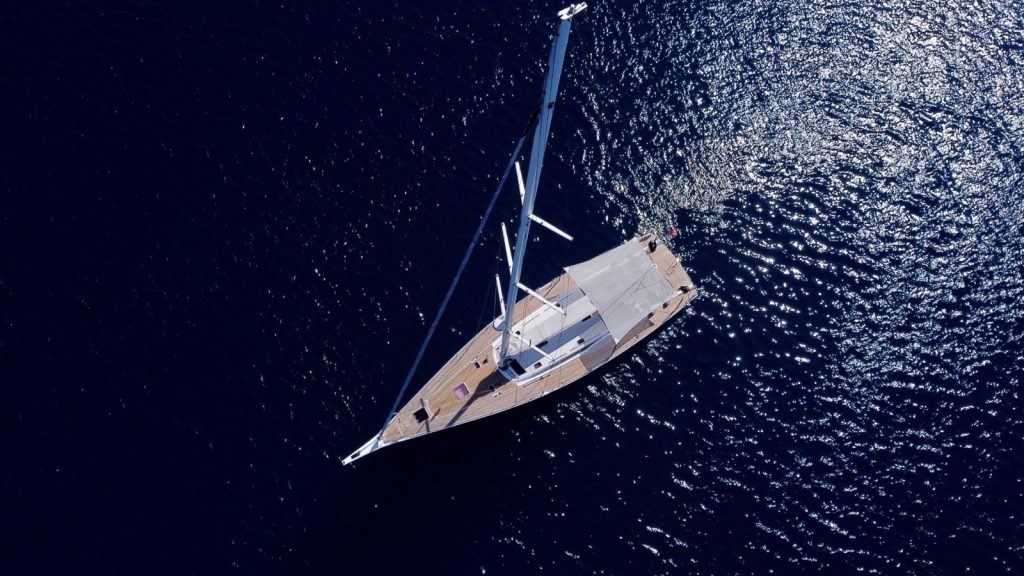

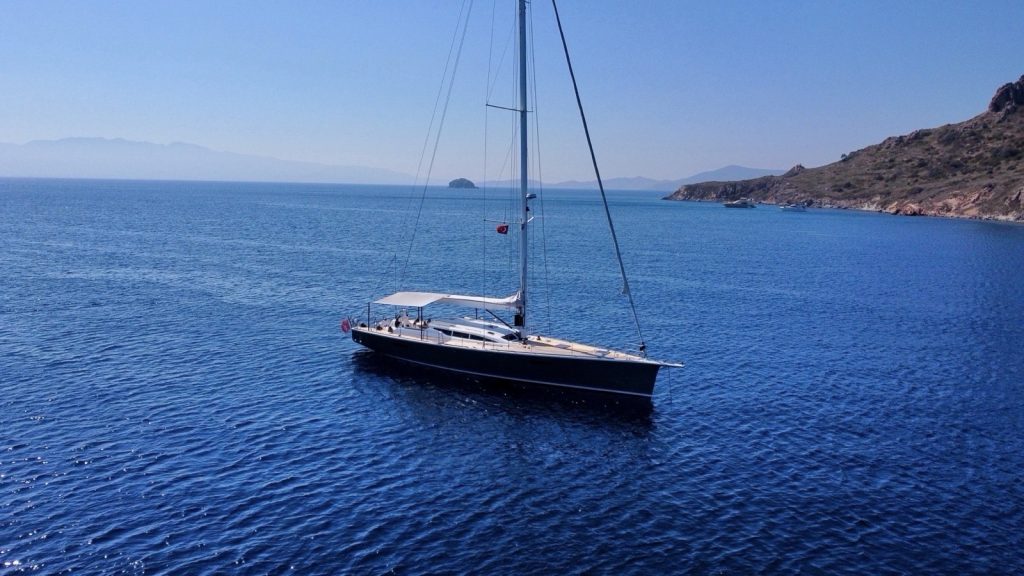

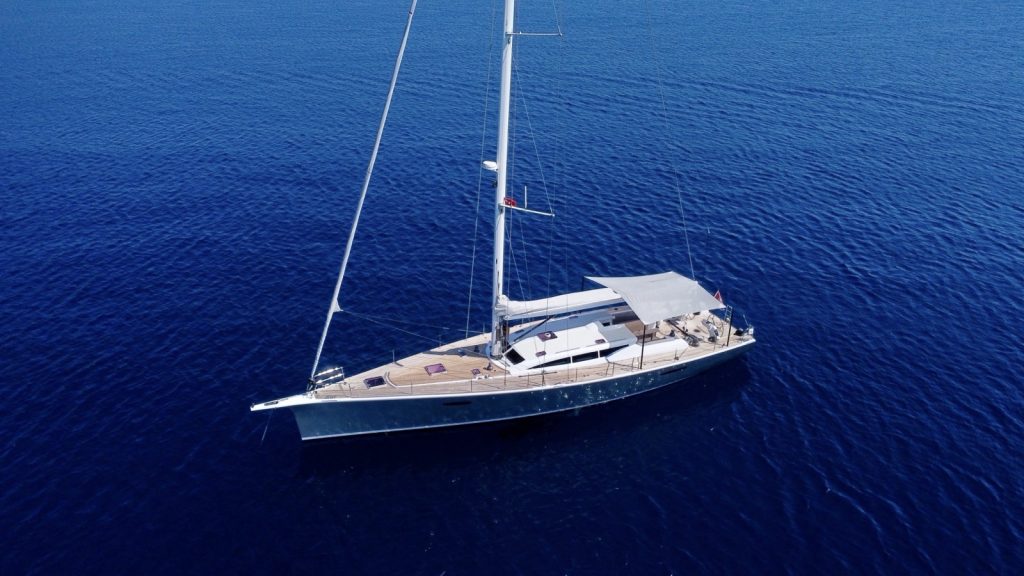

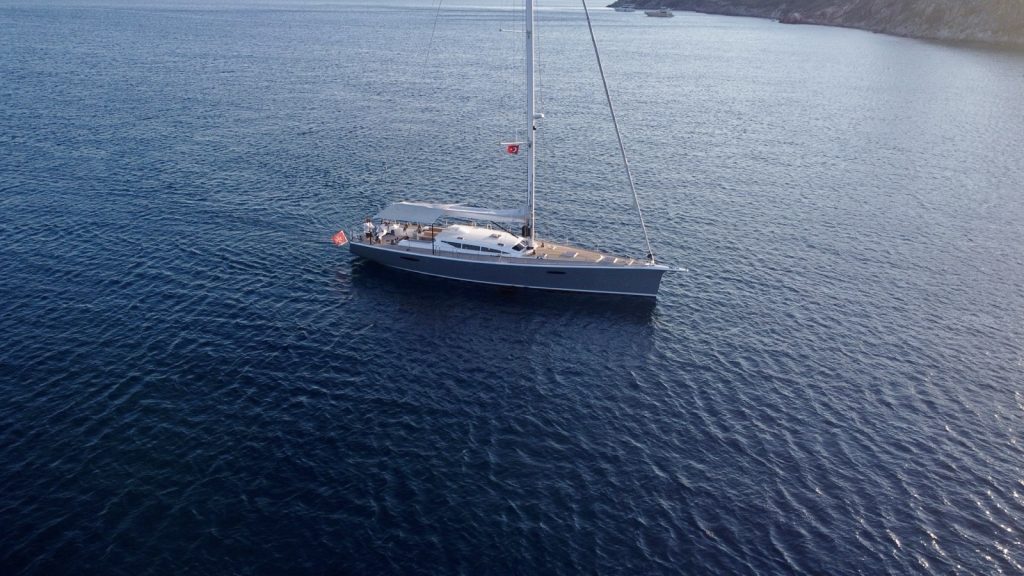

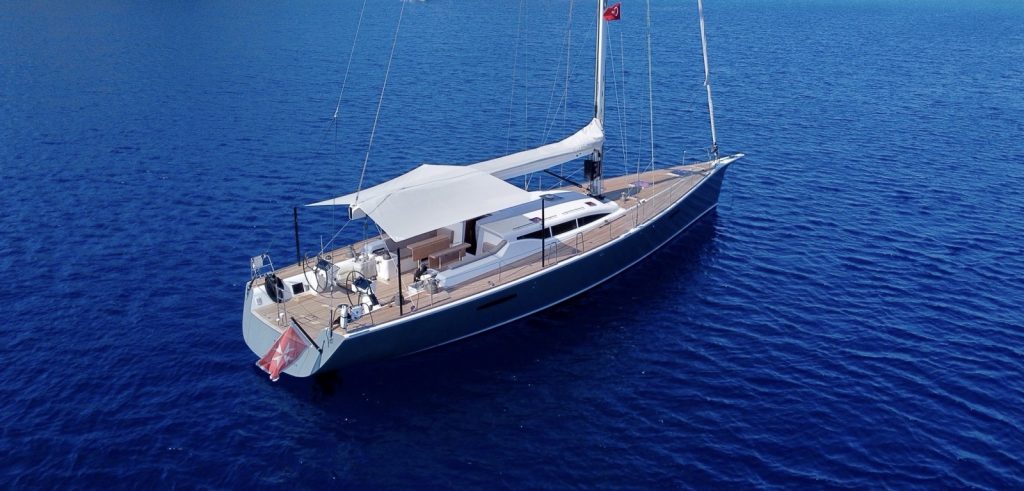

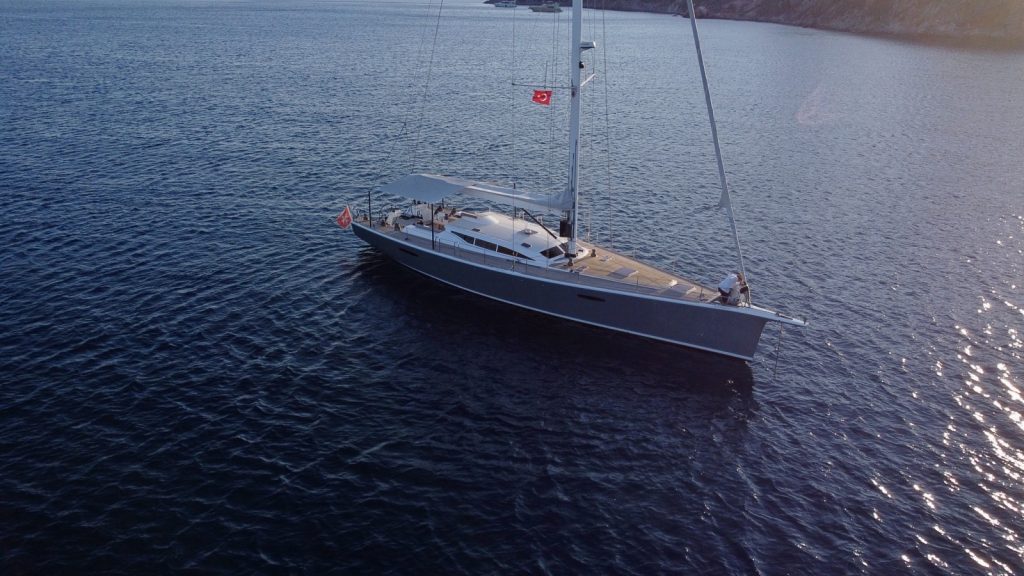

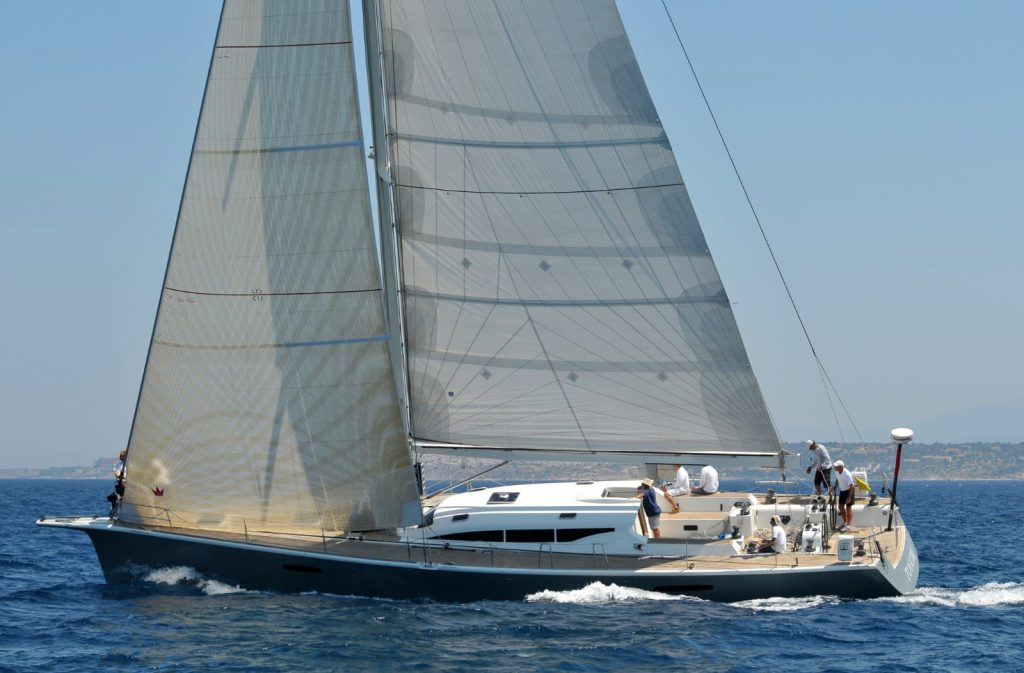

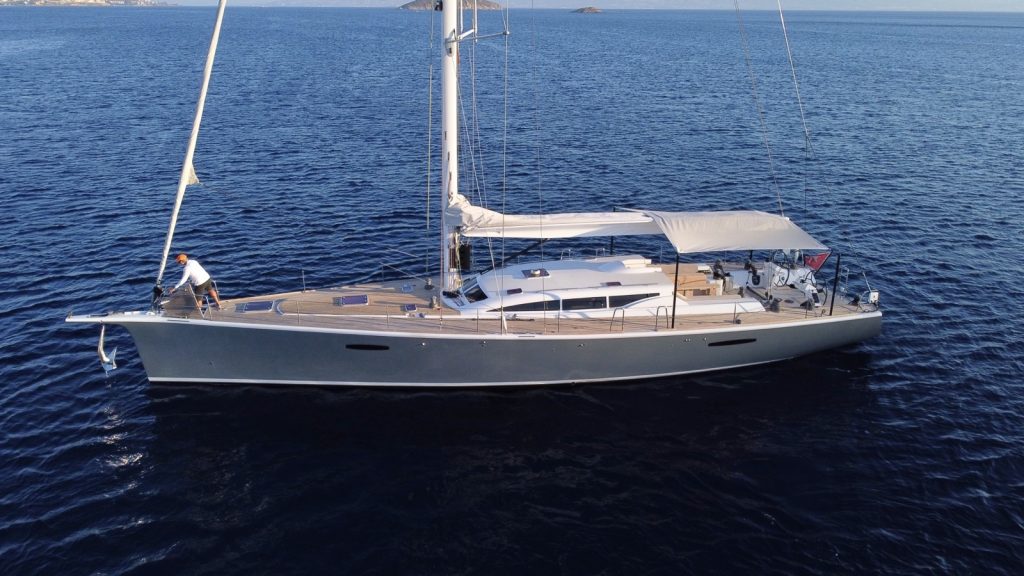

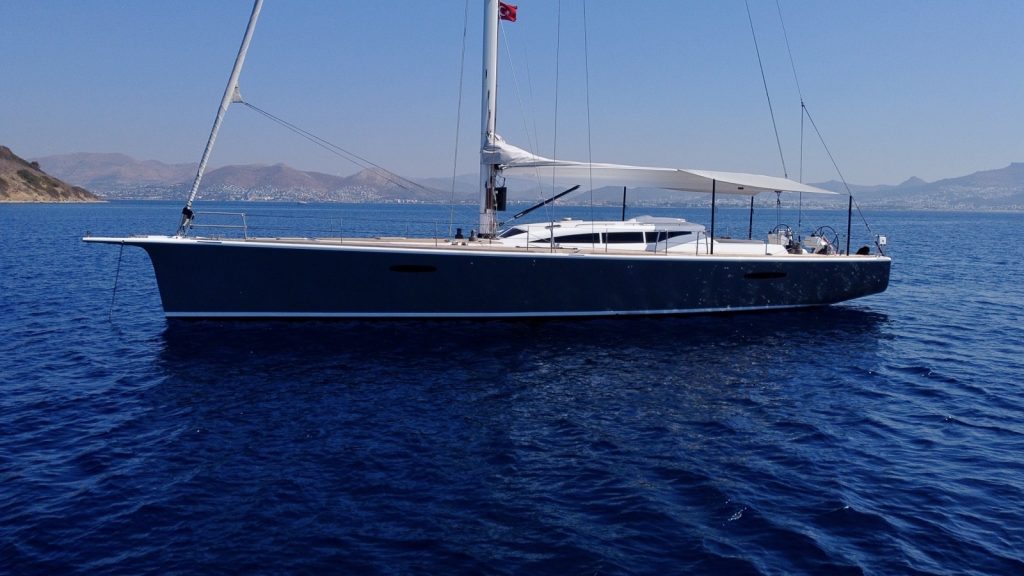

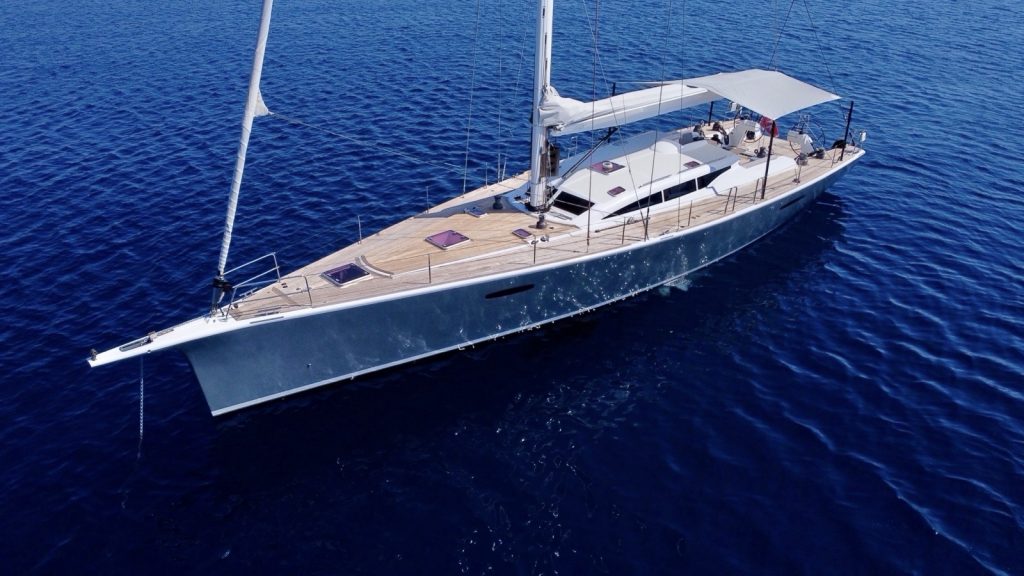

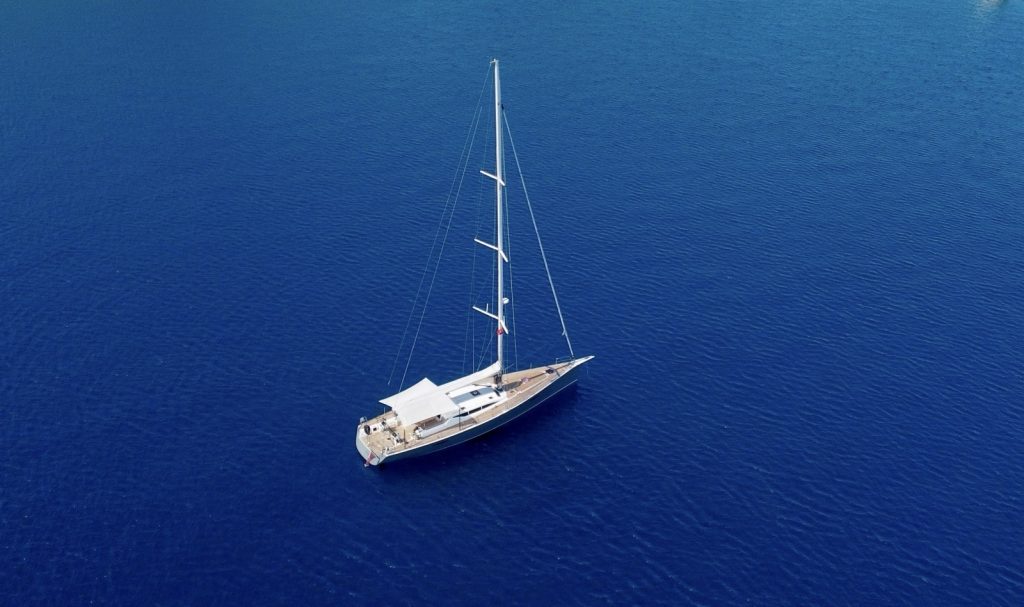

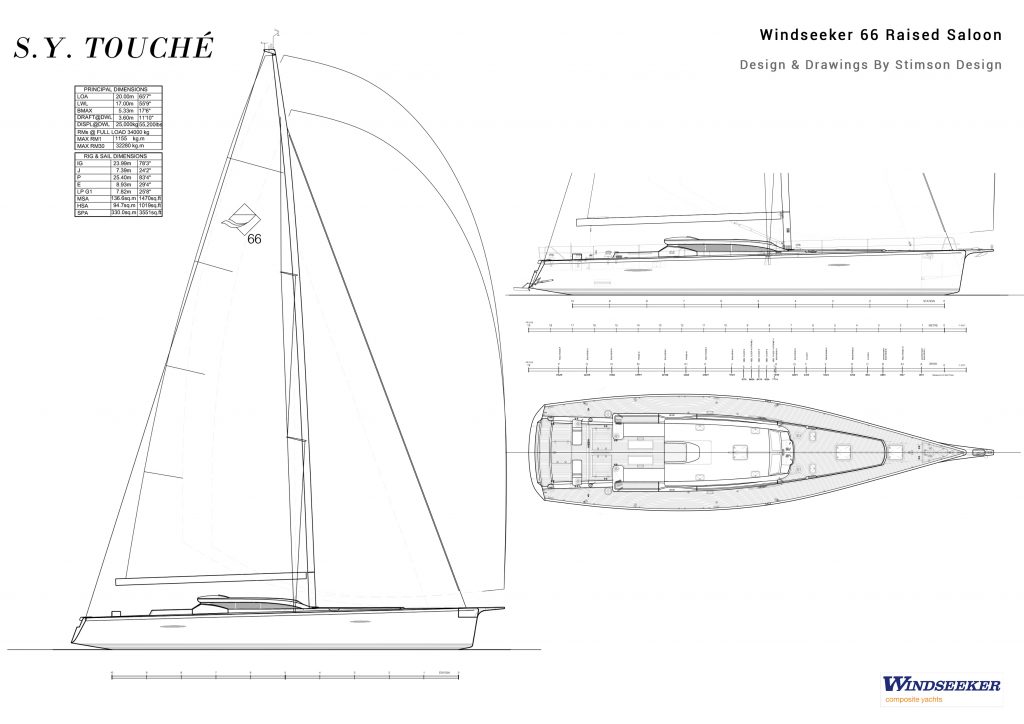

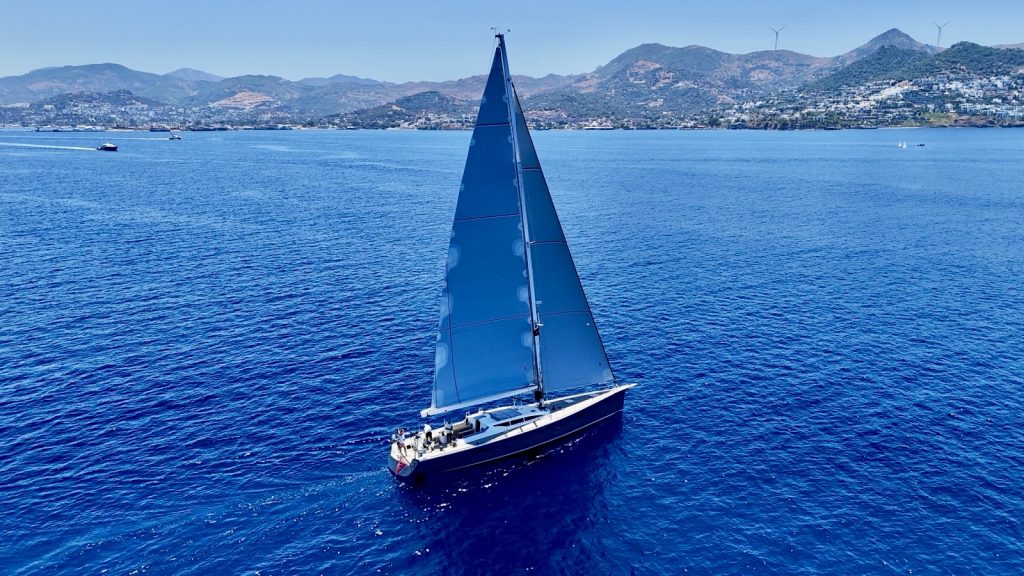

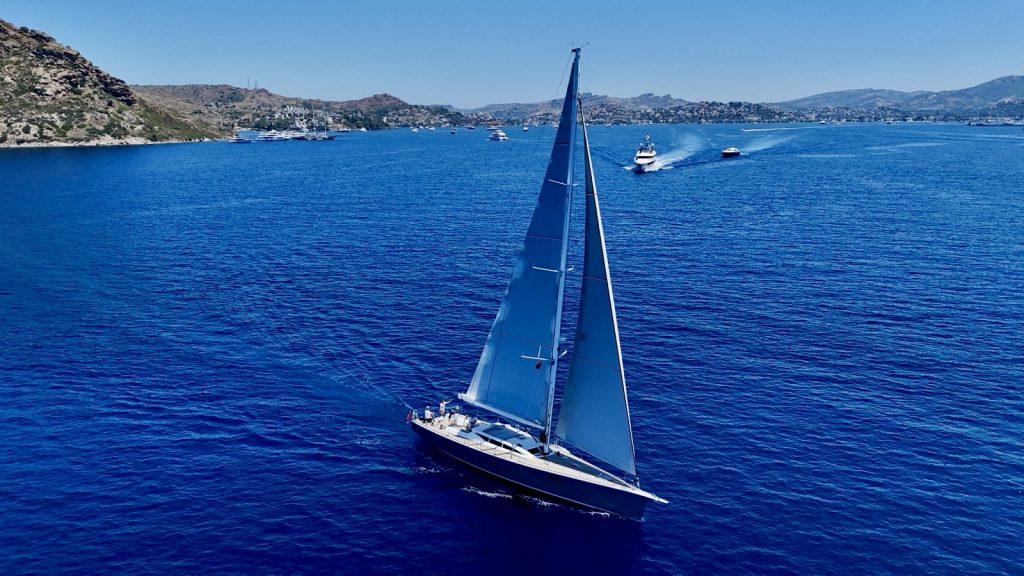

TOUCHE Stimson 66 ft

Dimensions

• LOA: 20.03  meters
• LWL : 18.30 meters
• Draft: 3,60 meters /
• Max Beam: 5,33 meters
• Displacement: 27,5 T
• Gross Tonnage : 36,99
• Flag: Maltease

Tankage

• Fresh Water Capacity: 1,000 lt
• Black Water capacity: 2 x 375 lt
• Fuel Capacity:  1000 lt

Sails One Sails

• Main Sail: 130 M2
• Furling Genoa (%106): 95 M2
• Asymetrical Sail: 385 M

Construction

• The strip plank cedar core hull is sheathed with E-glass and epoxy
• The deck is a male-moulded, vacuum-consolidated E-glass/epoxy/ PVC foam laminate
• Engineering : High Modulus
• Watertight bulkheads in Forepeak
• Mast support is solid epoxy e-glass laminate
• Hydrodynamically optimised low drag lead bulb with cast iron keel fin. A high surface upper flange allows distrubution of grounfing forces to the structure of the boat.
• Composite rudder built over carbon stock

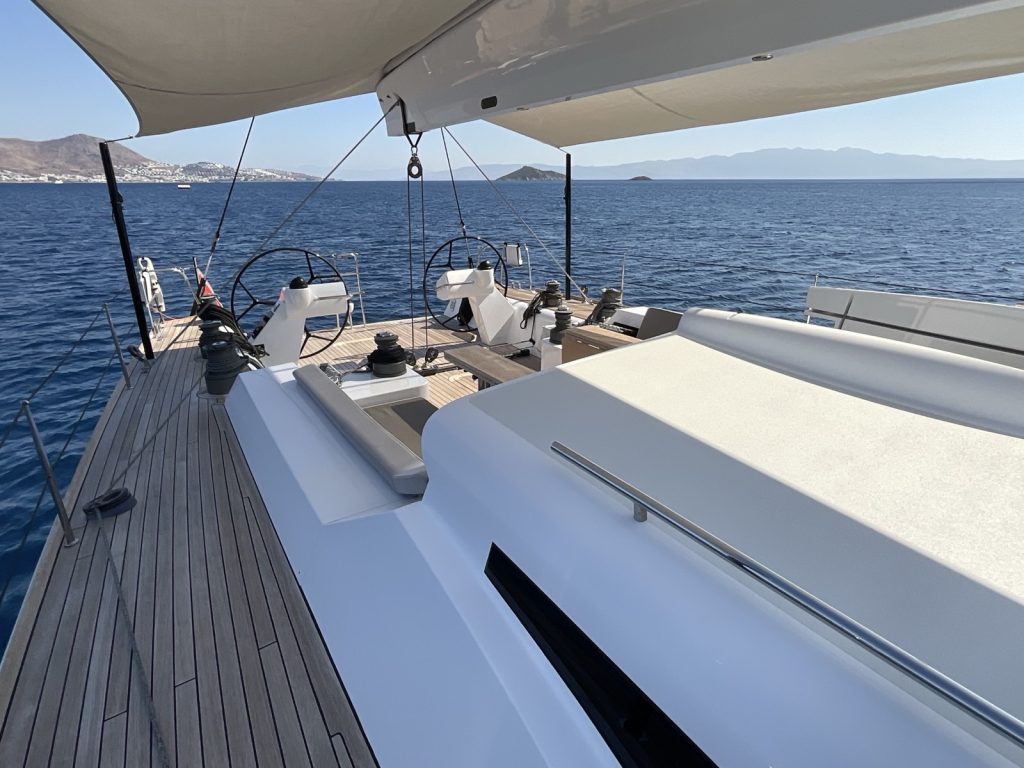

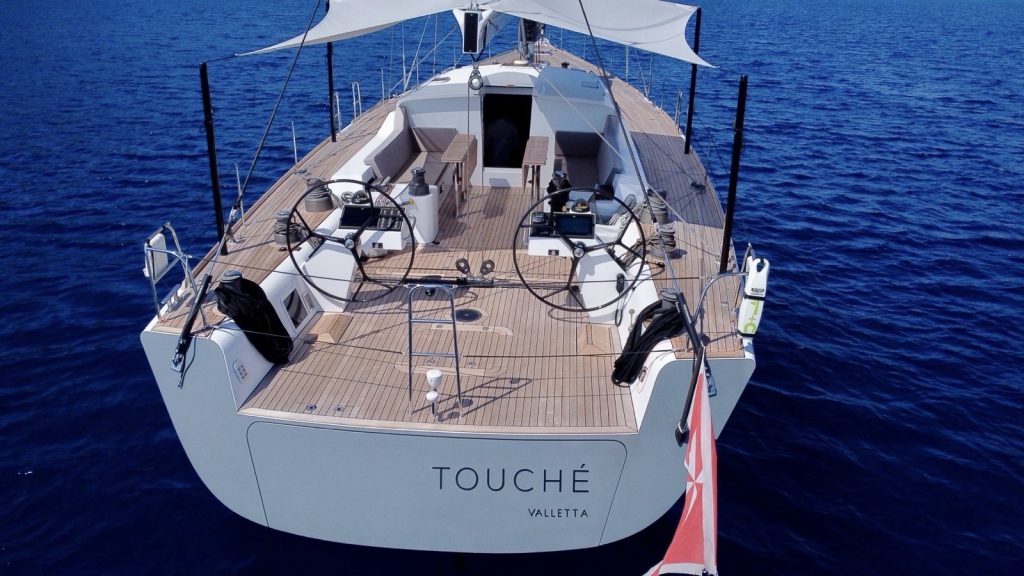

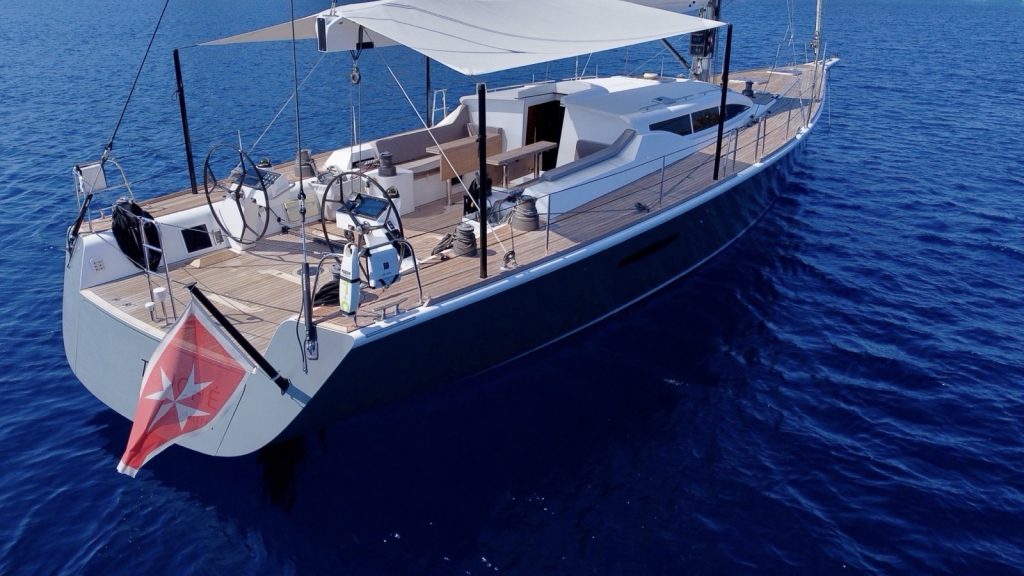

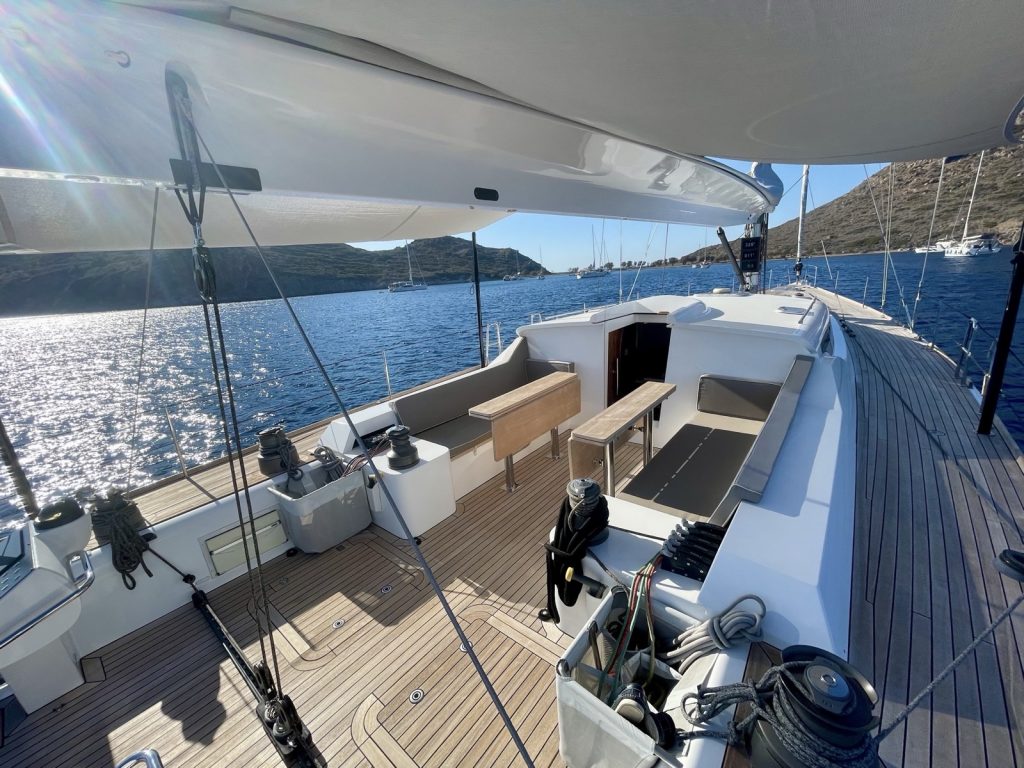

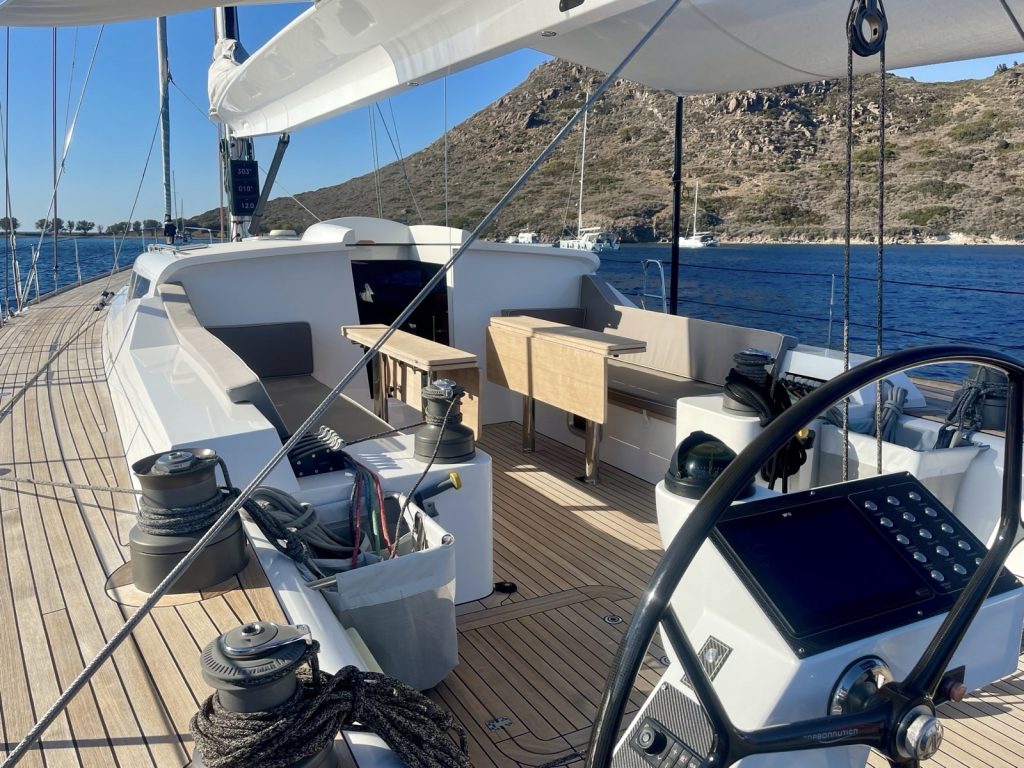

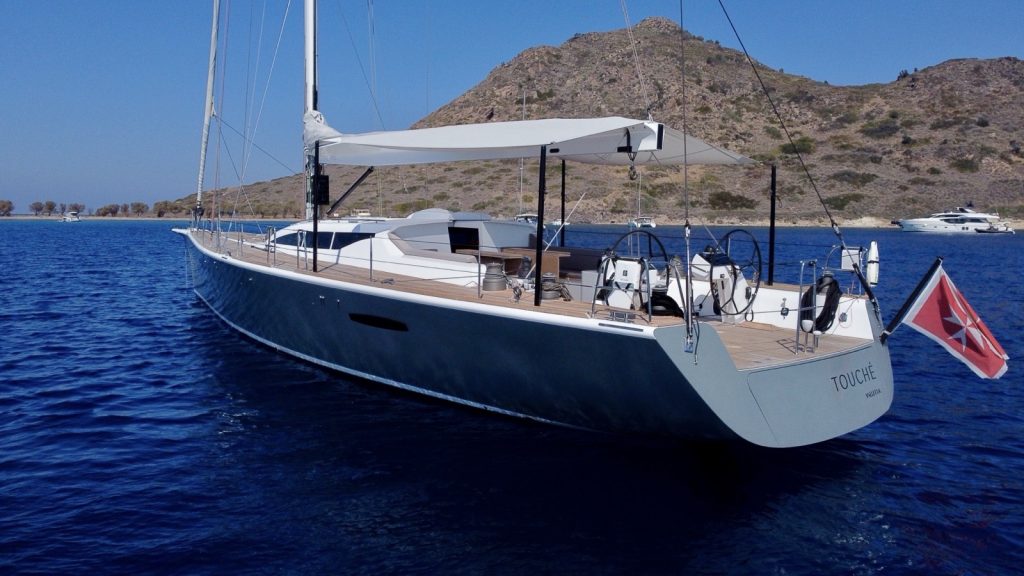

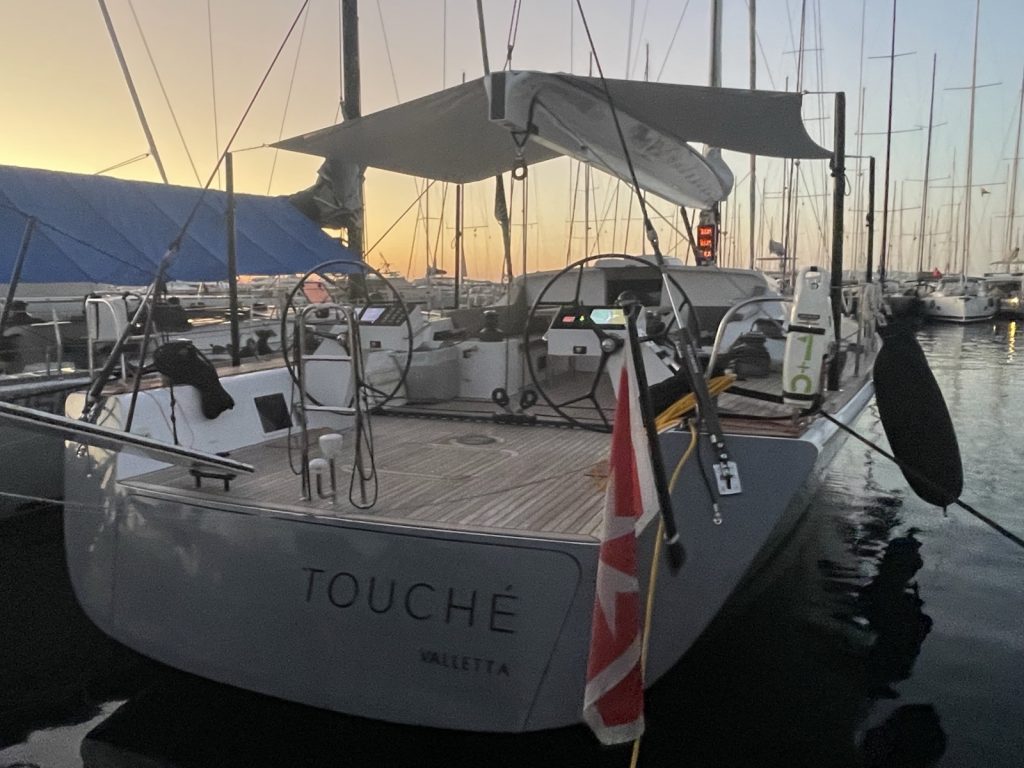

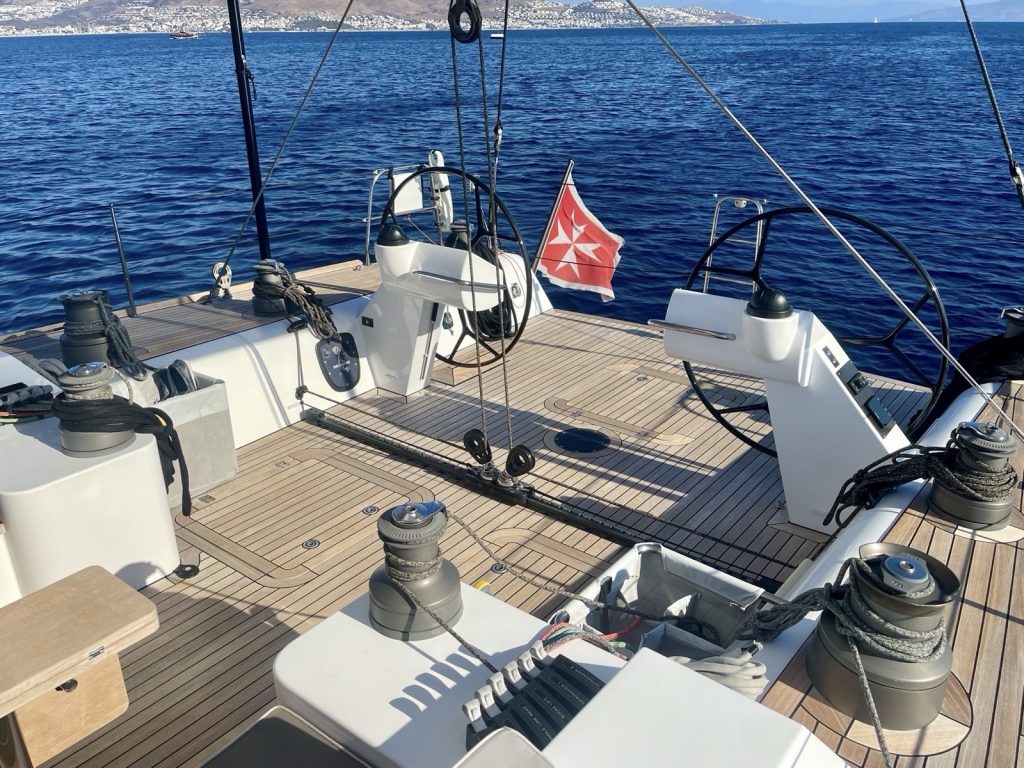

Cockpit

• Tow foldable full opening large cockpit tables with SS legs
• Cushions renewed
• Carbon steering wheels
• Carbon foldable passerella Carbon Nautica 3,2m
• Lewmar Winches

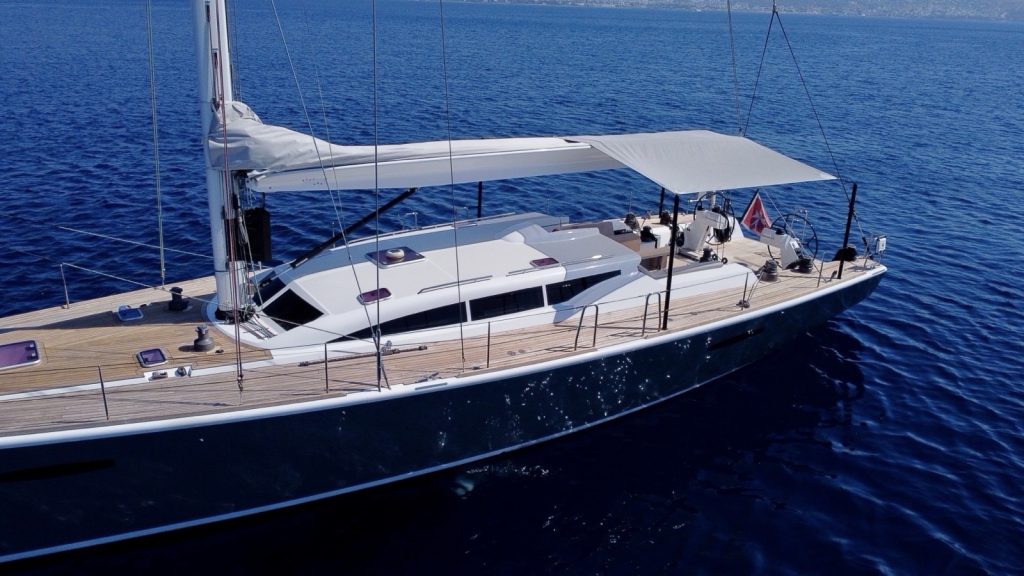

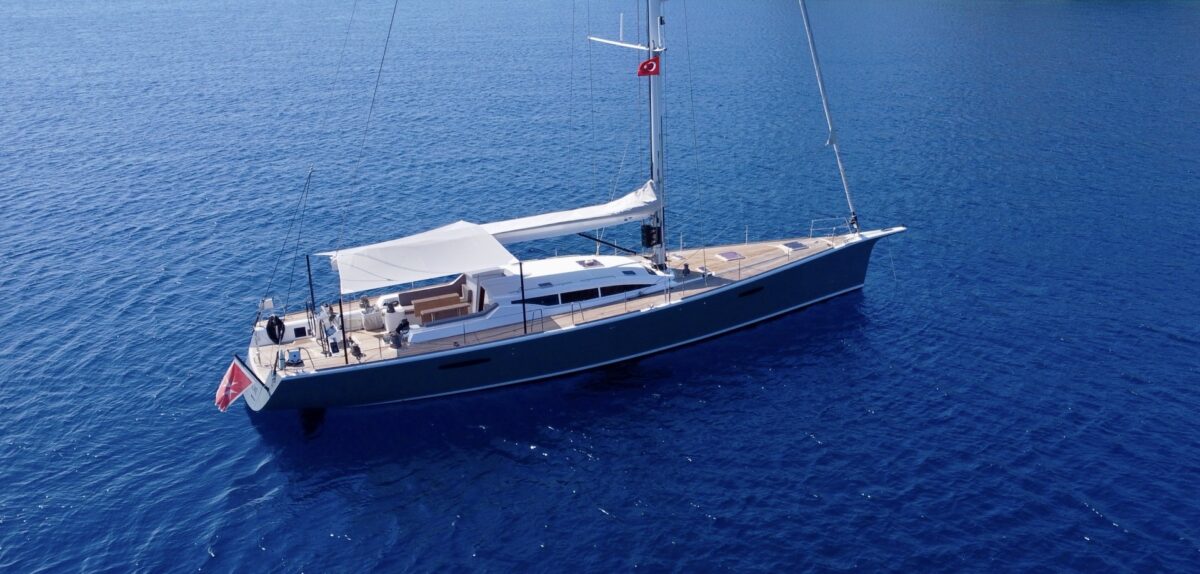

• Sun awening with six carbon poles on cockpit and deck (60 sqm)
• Isotherm small fridge

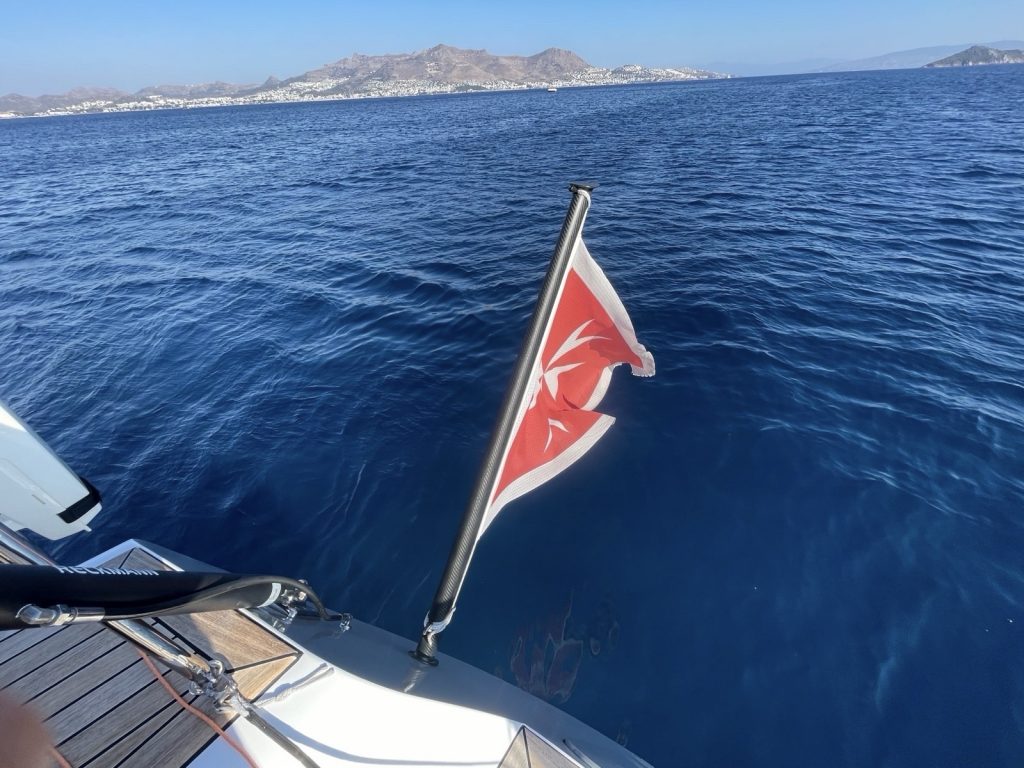

• Custom Carbon flag mast

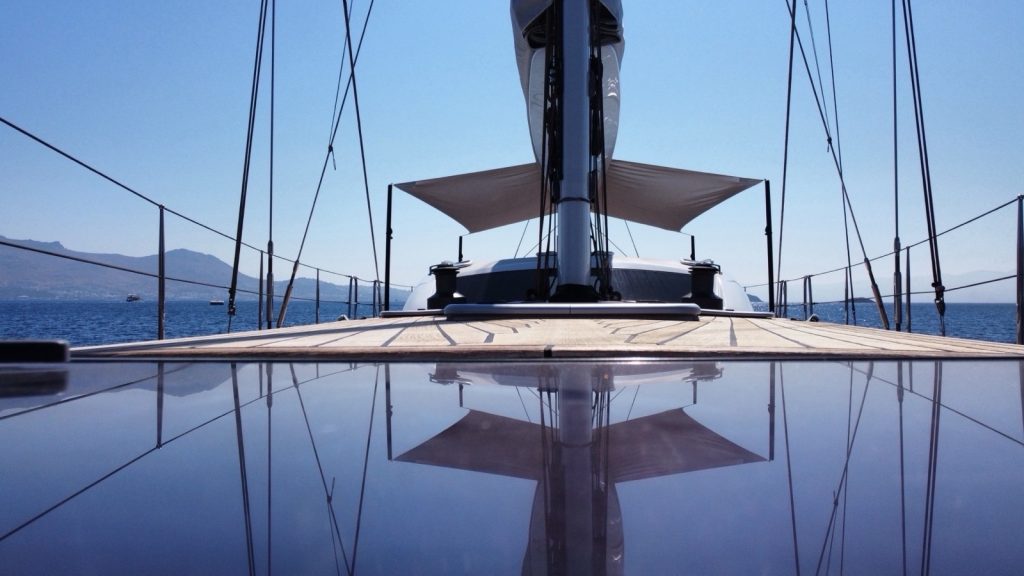

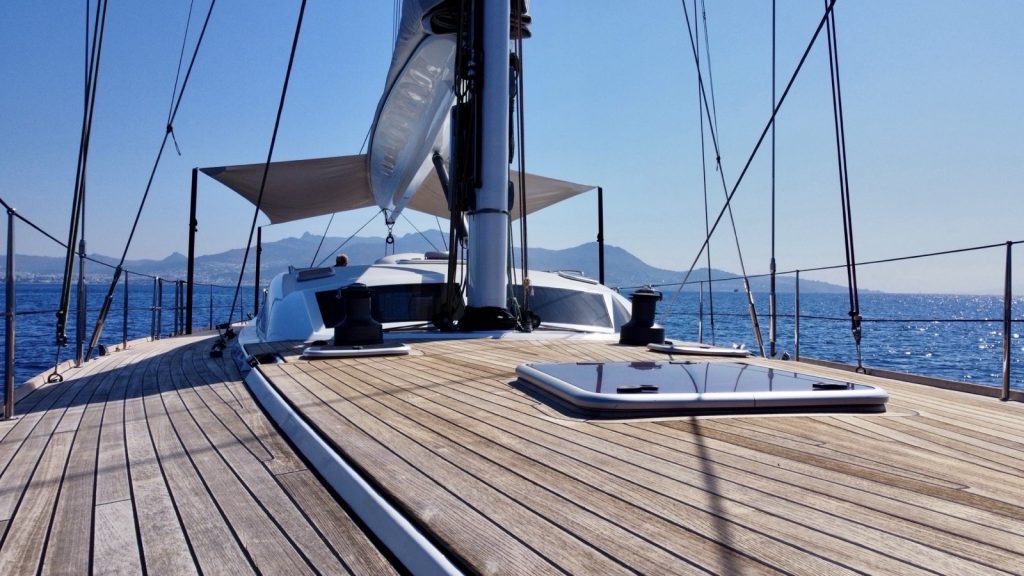

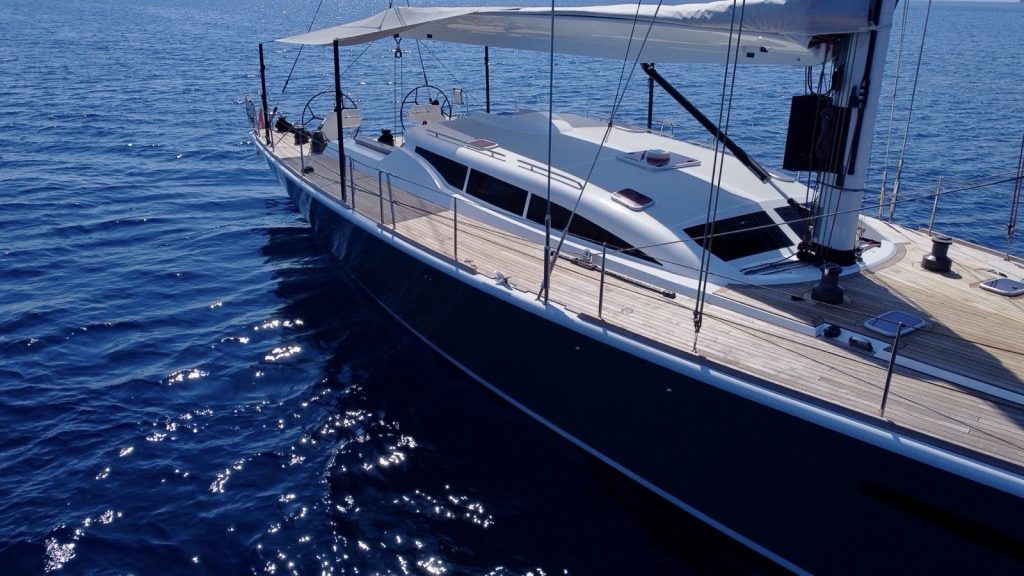

Deck Fittings & Deck equipements

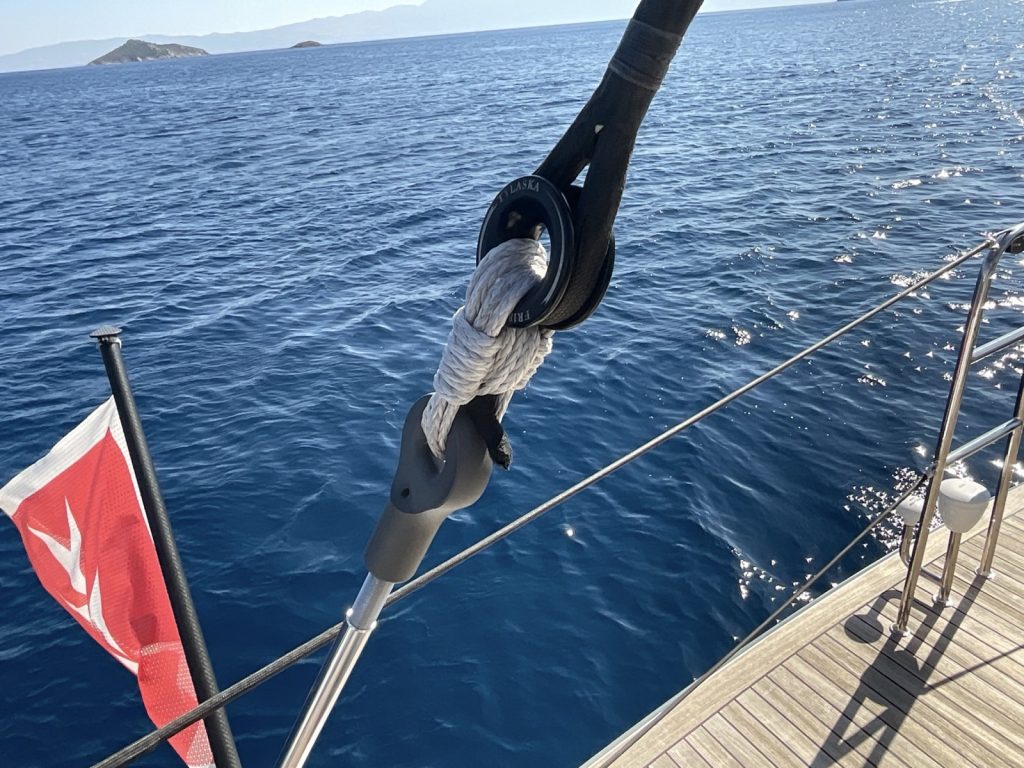

• Carbon bowsprit without bobstay for practicality in anchoring.

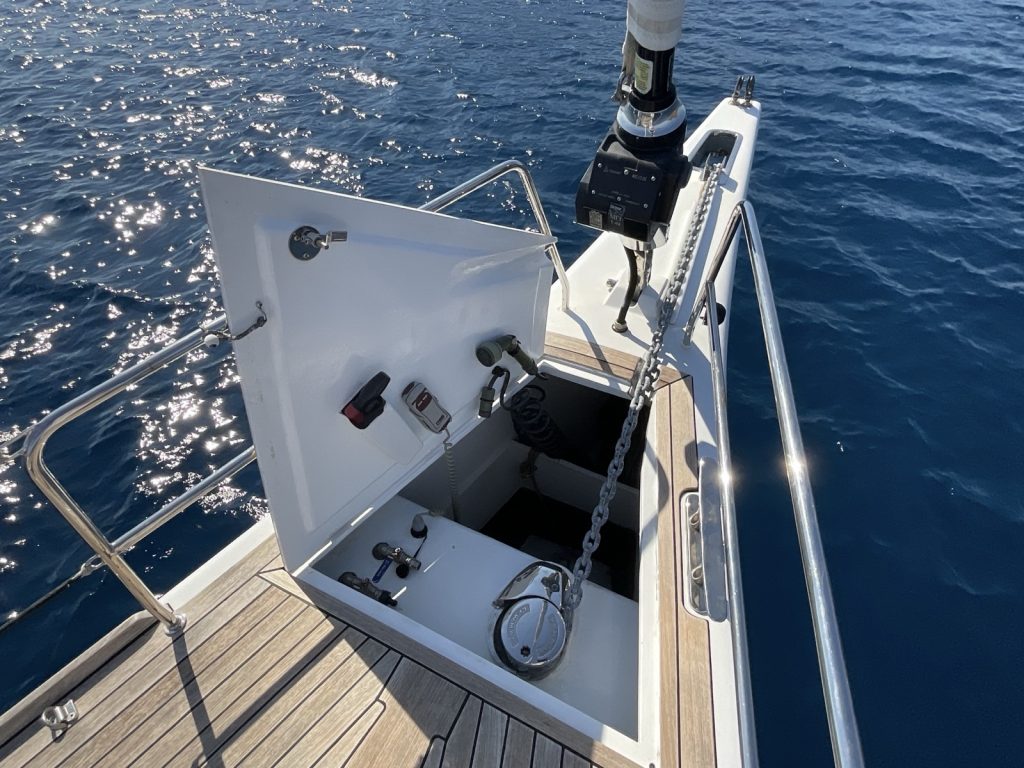

• A Lewmar V5 electric anchor windlass is recessed in achor well. Ultra 45 Kg anchor, 150 meter
• Lewmar and spinlock deck hardware
• SS mooring cleats, 2 in front, 2 in middle, 2 in aft
• Aquasignal navigation lights
• Solimar Low flush composite hatches and Lewmar low profile hatches
• Chainplates in carbon composite
• Sliding companionway hatch with water drainage
• Self Tailing electrical Lewmar winches
• Dynema Guardrails (Custom made)
• Spinlock Clutches

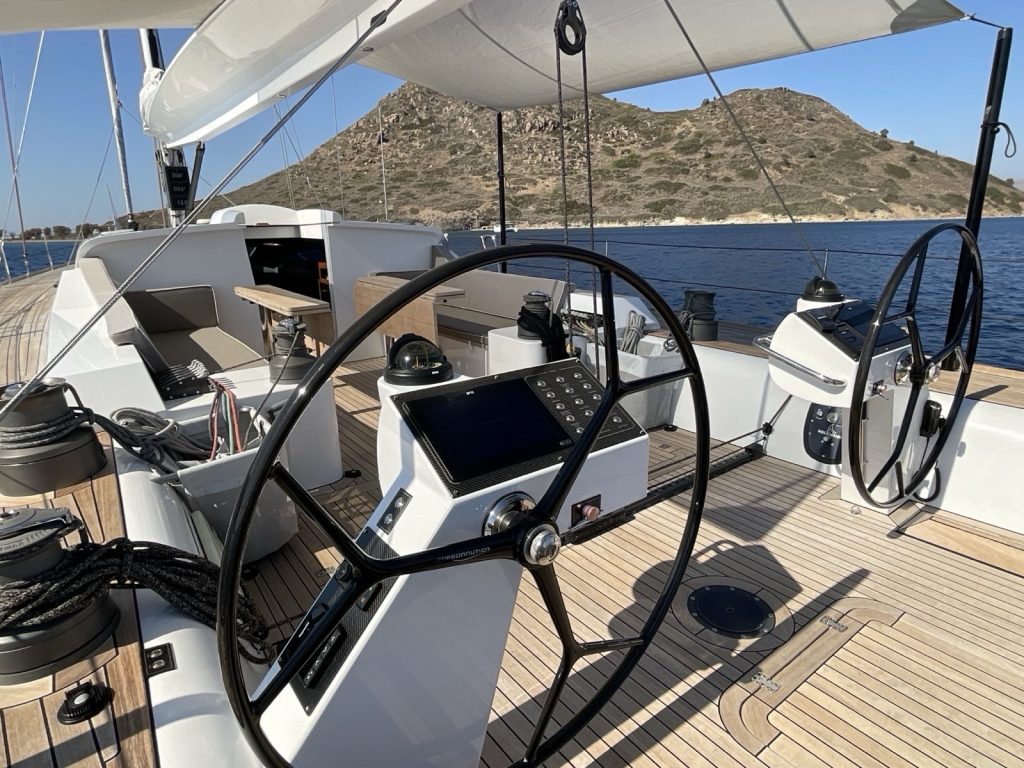

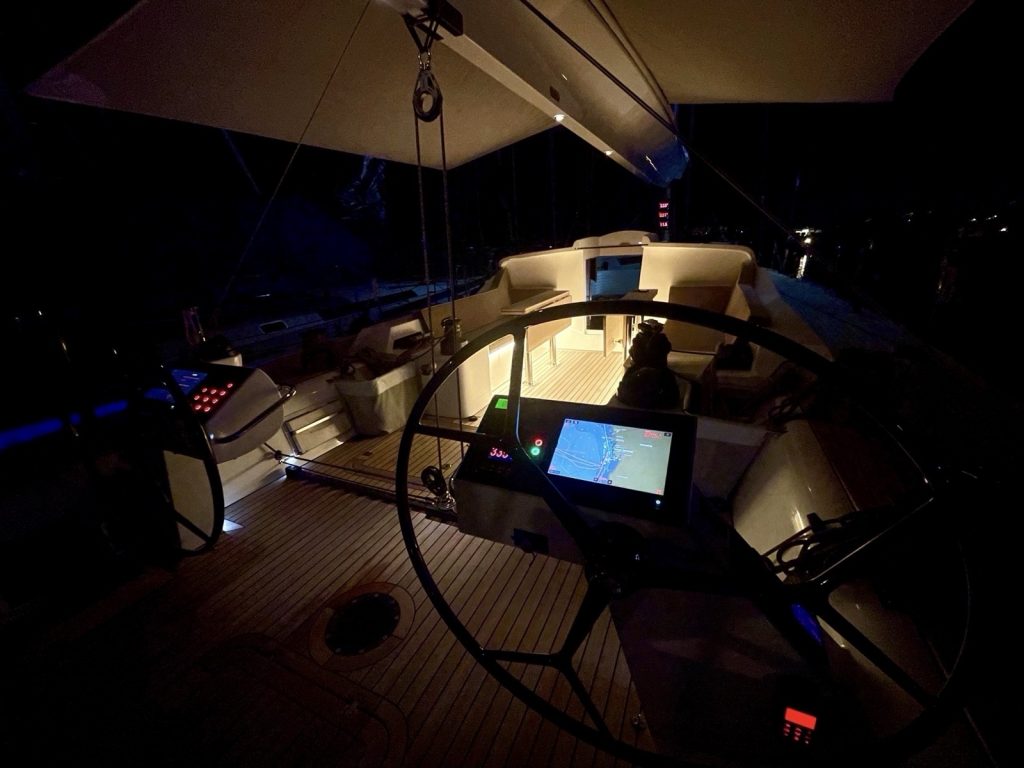

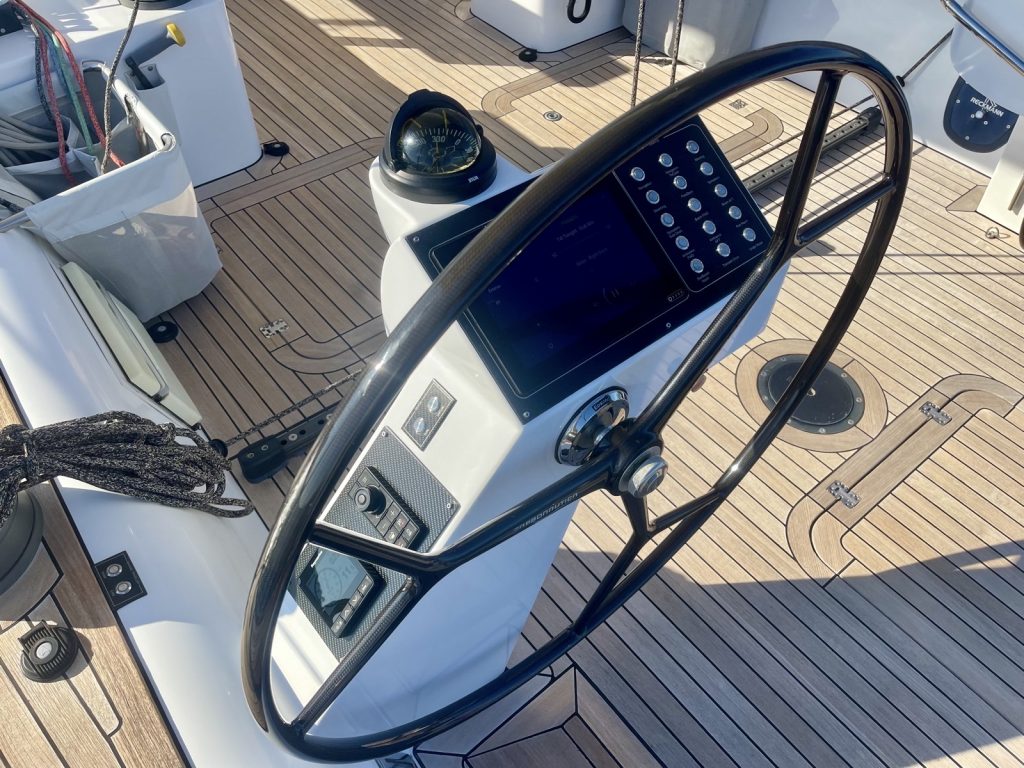

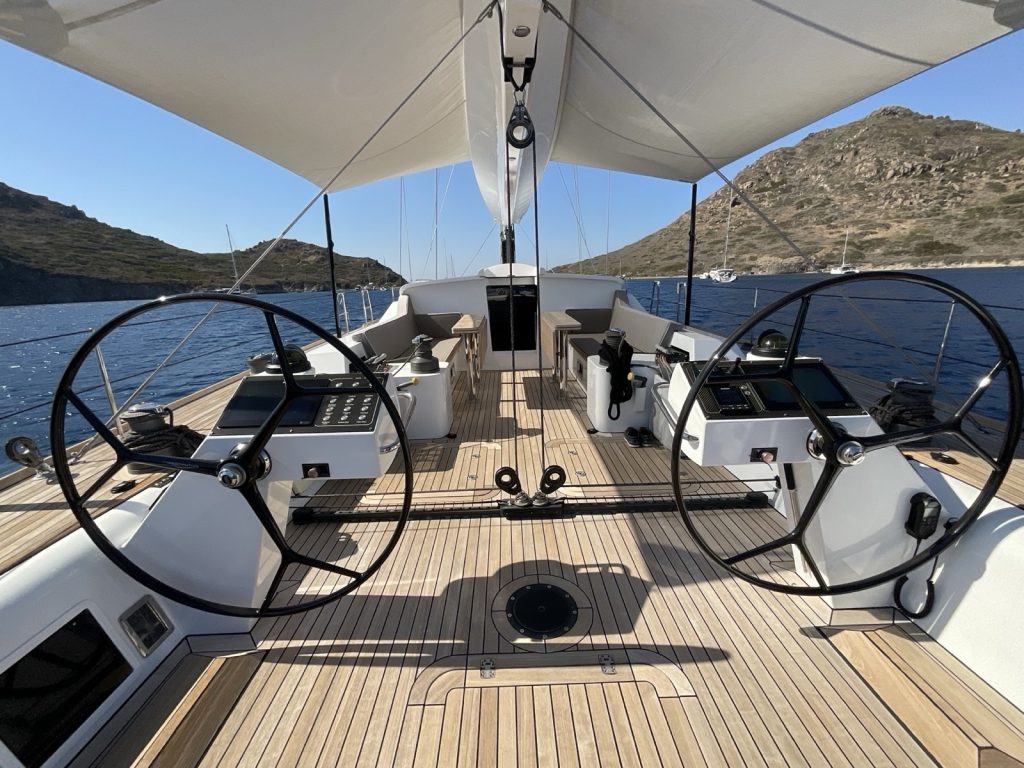

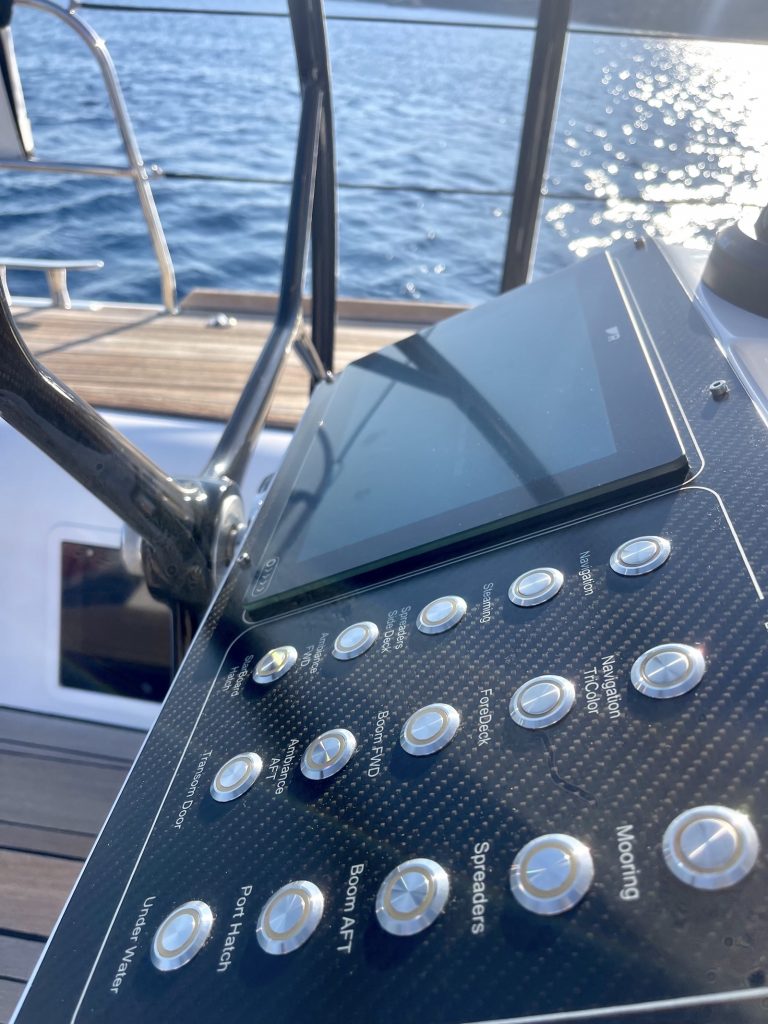

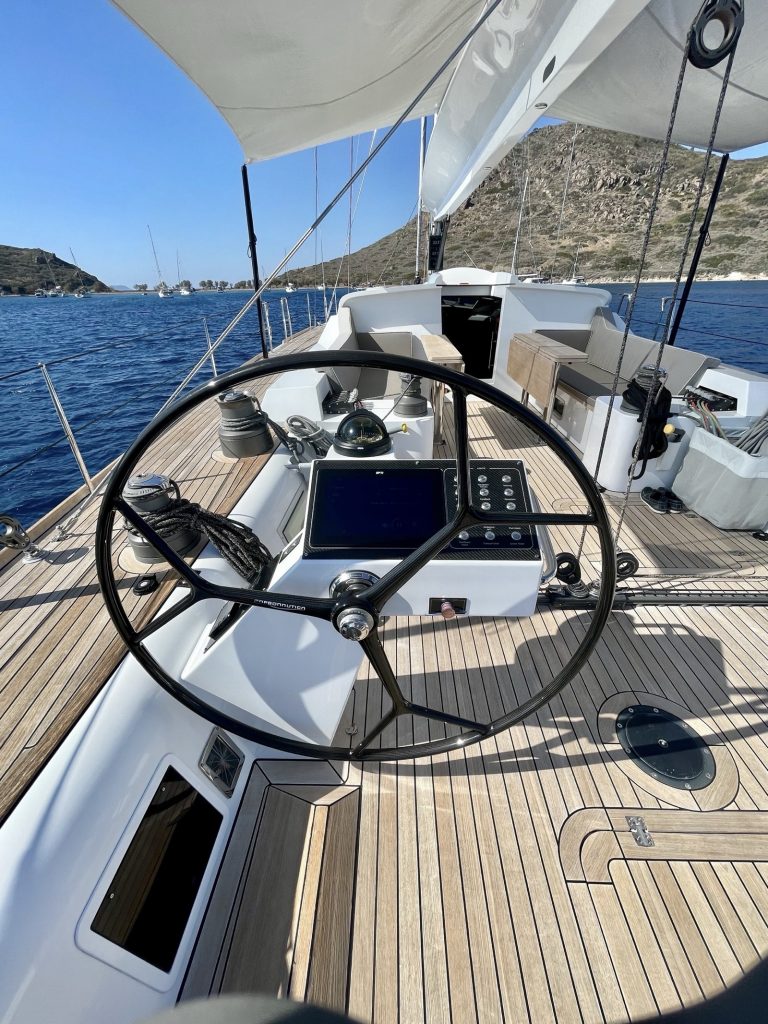

• 2 steering console pedestals with Raymarine instruments and carbon steering wheels (Carbon nautica)
• Emergency steering
• Hydraulically operated folding stern platform, stowage for dingy

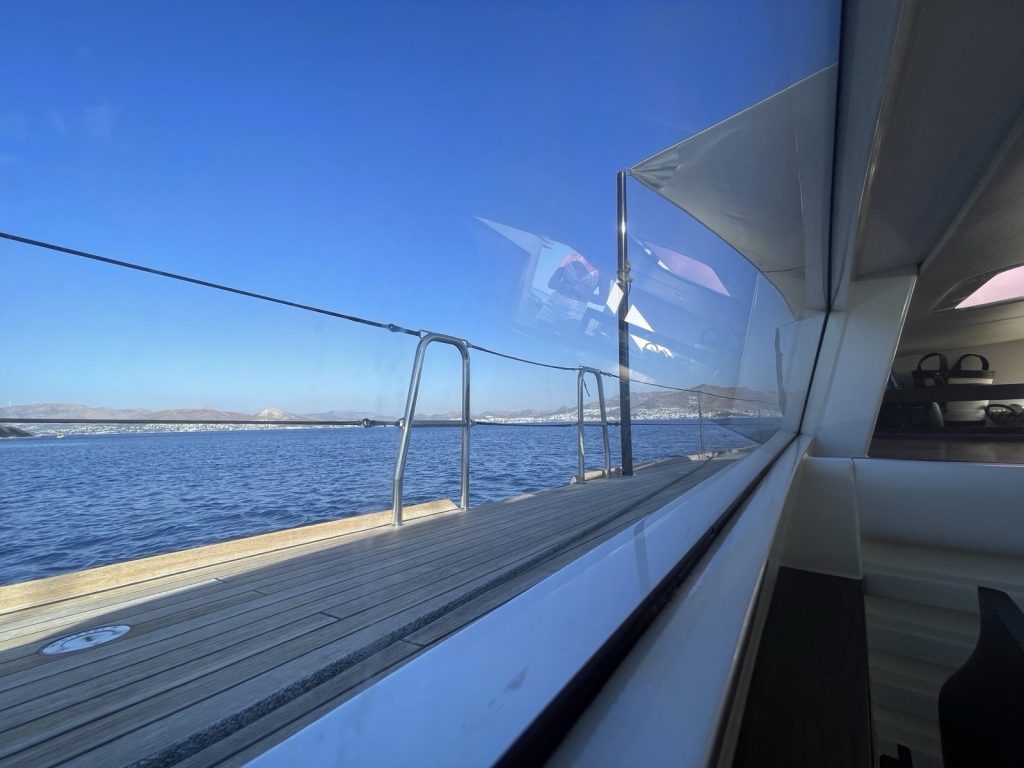

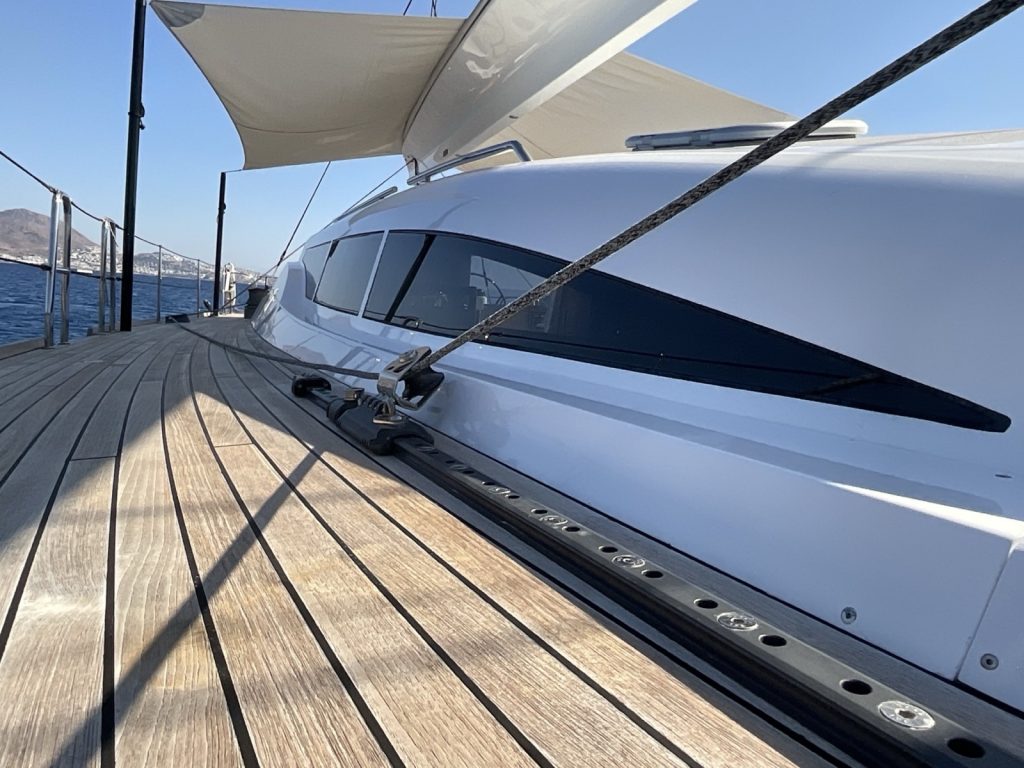

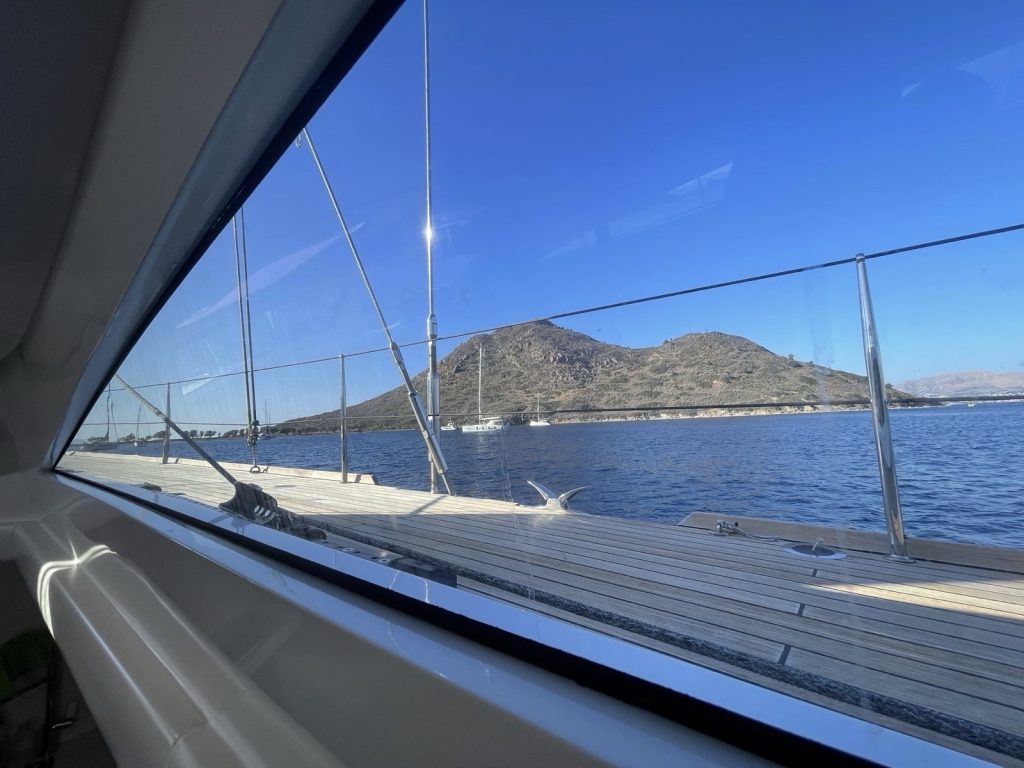

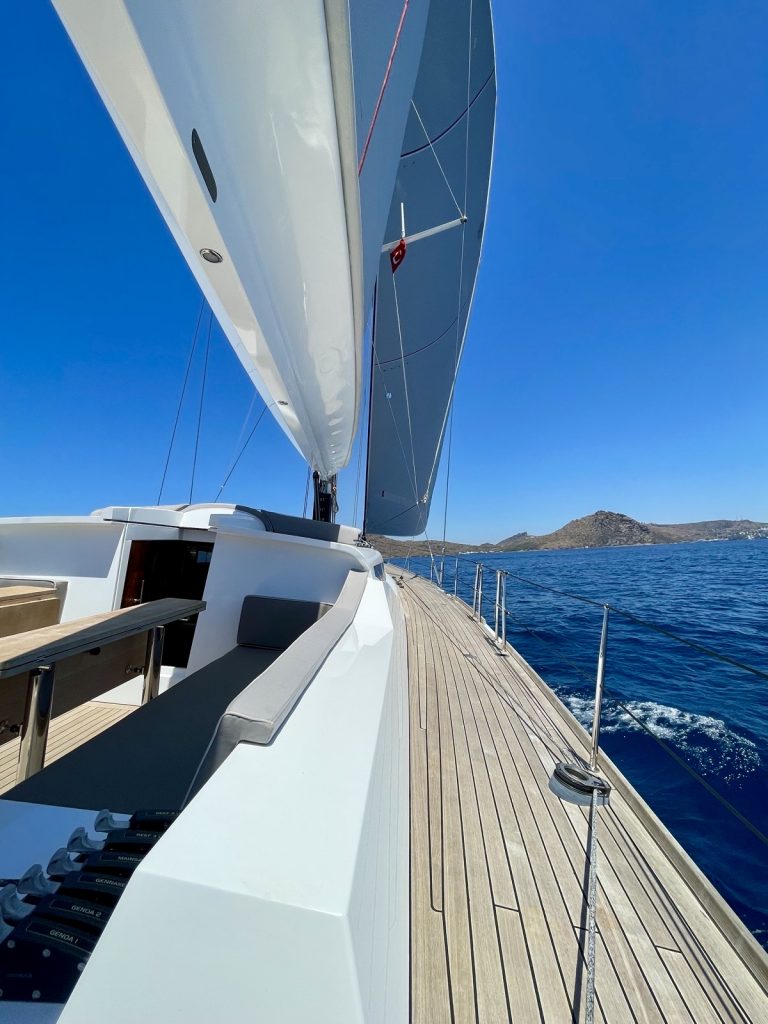

• Teak decking overall
• Teak cockpit table
• SS swim ladder with teak steps
• Hot and cold cockpit shower
• Fenders inflatable (Fendertex)

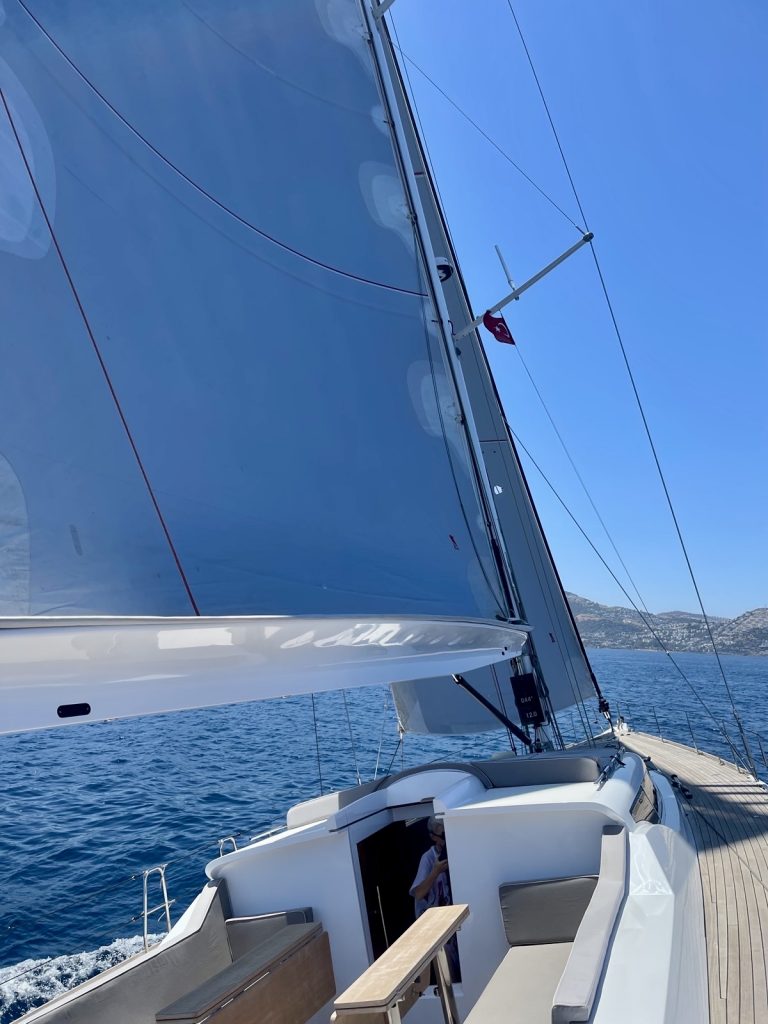

Mast and Rigging

• Keel stepped Sparcraft Performance Aluminum mast with swept back spreaders
• Oracle coated mast
• Hydraulic mast step and mast jack

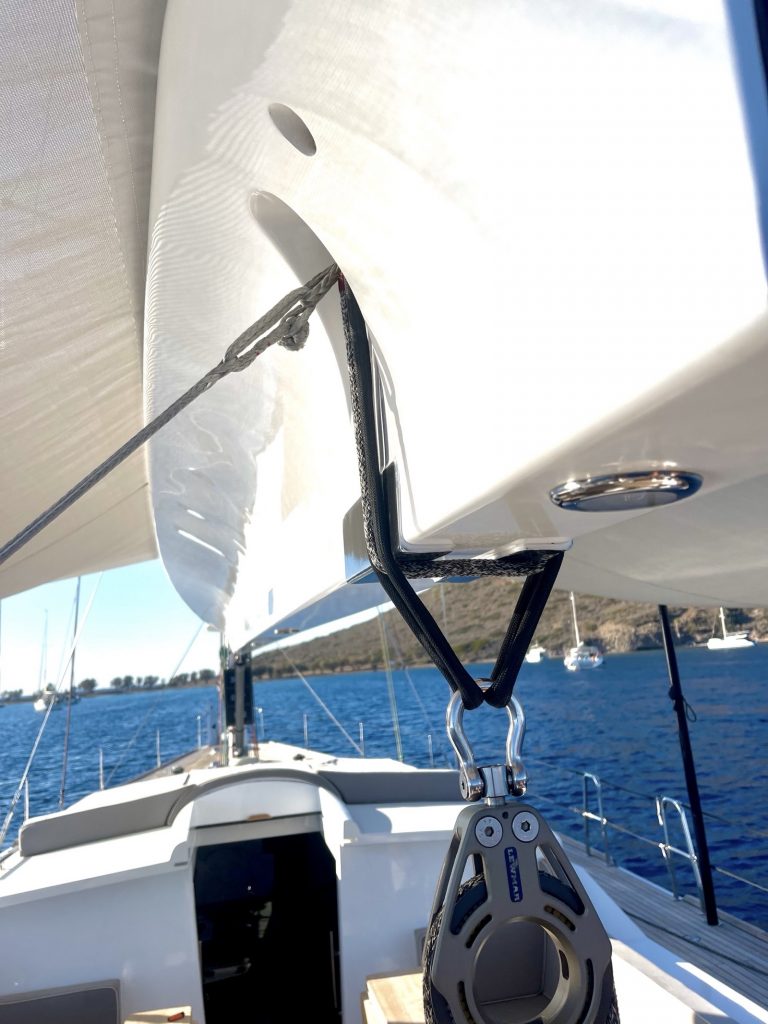

• Park Avenue Carbon Boom
• Reckmann Hydraulic Vang, Rod and Dynema Backstay, Outhaul
• Rod Standing Rigging
• Antal Electrical Furling Jib
• Deck lights and mooring light
• Main sail hydraulic traveller

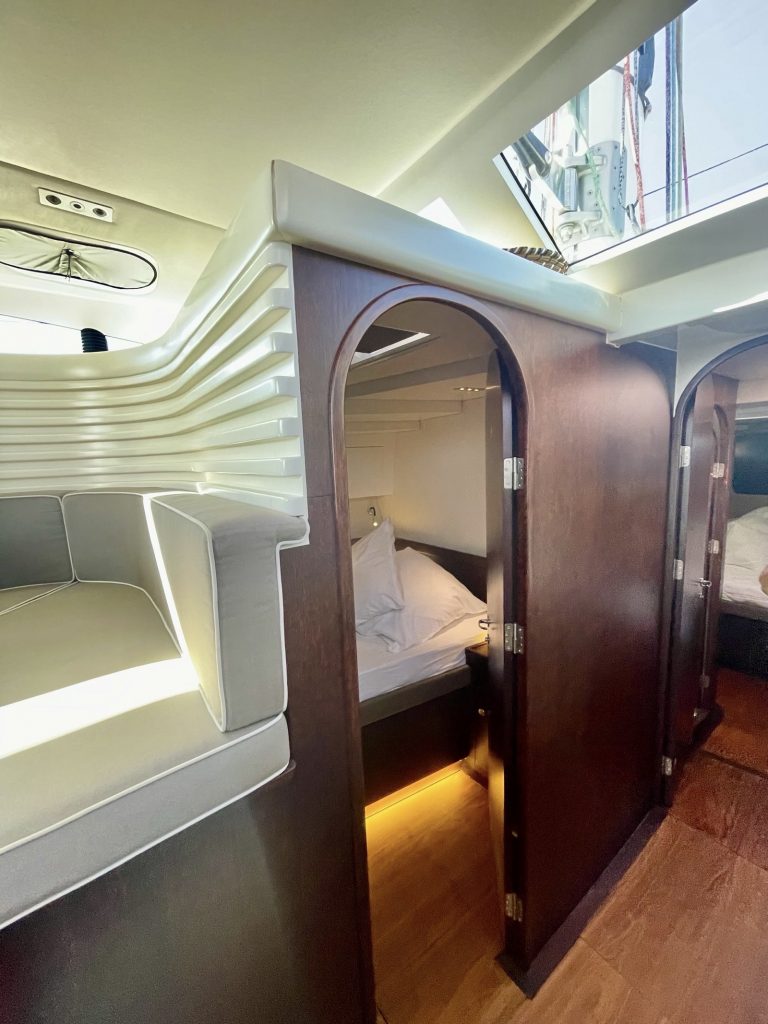

Accomodations

• All joinery in veneered marine plywood
• Joinery and panles varnished with satin gloss varnish
• Laminated doors
• Shades or curtains for all hatches, windows and portholes Led lightning through-out
• Completely renewed in 2021

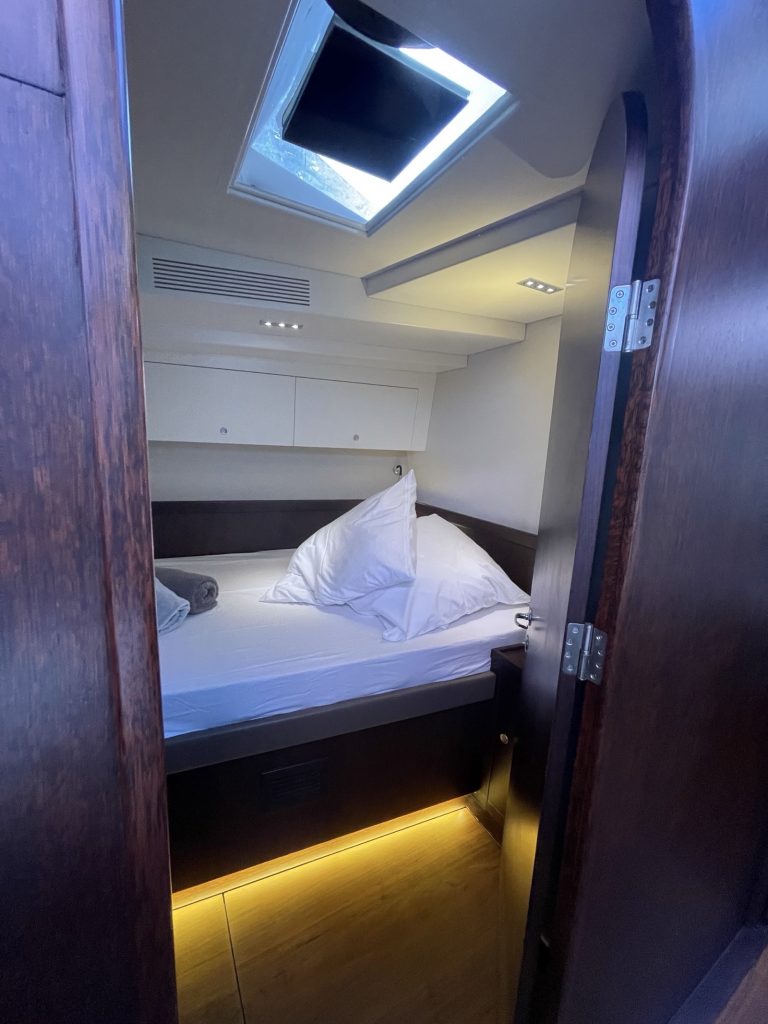

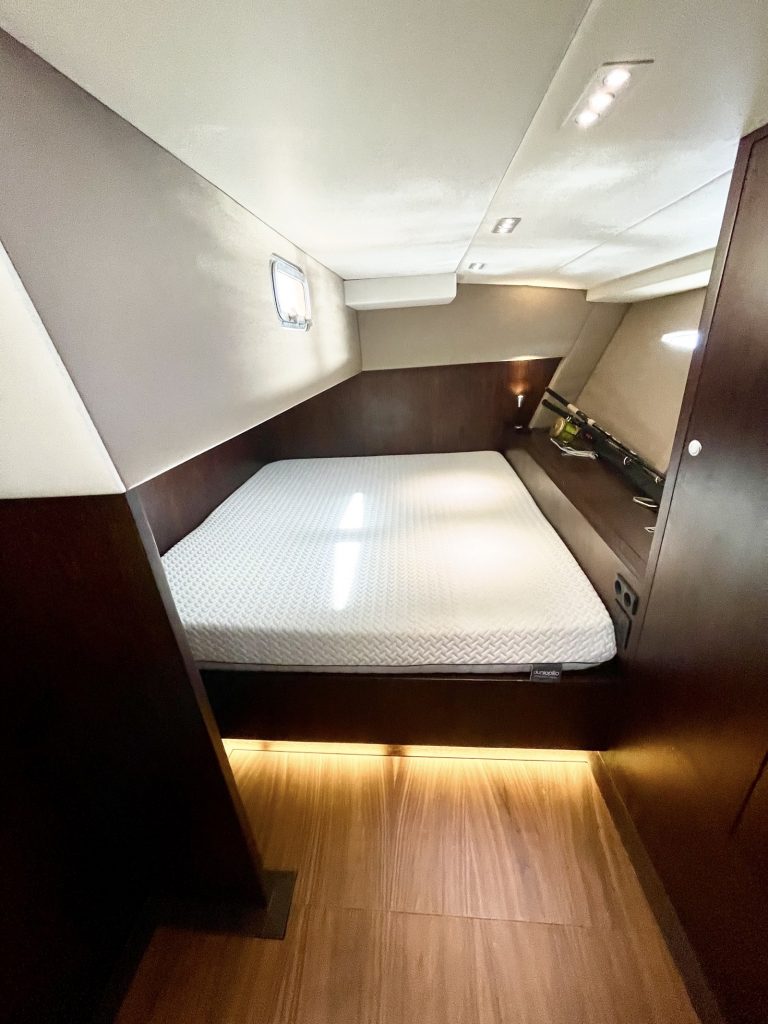

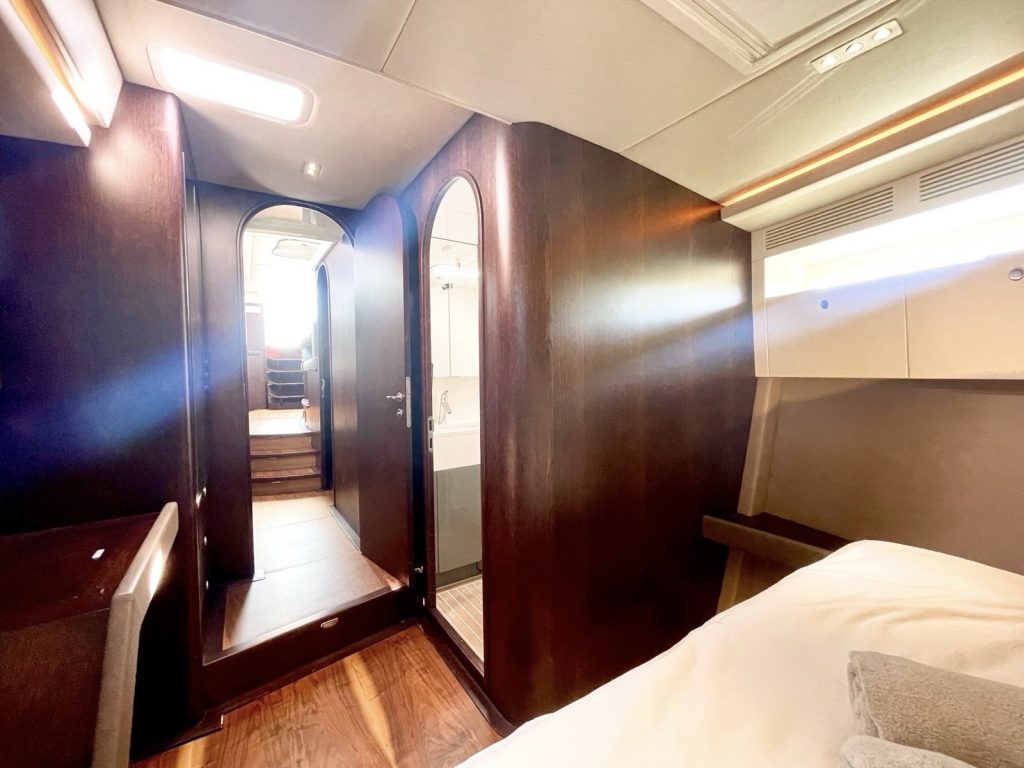

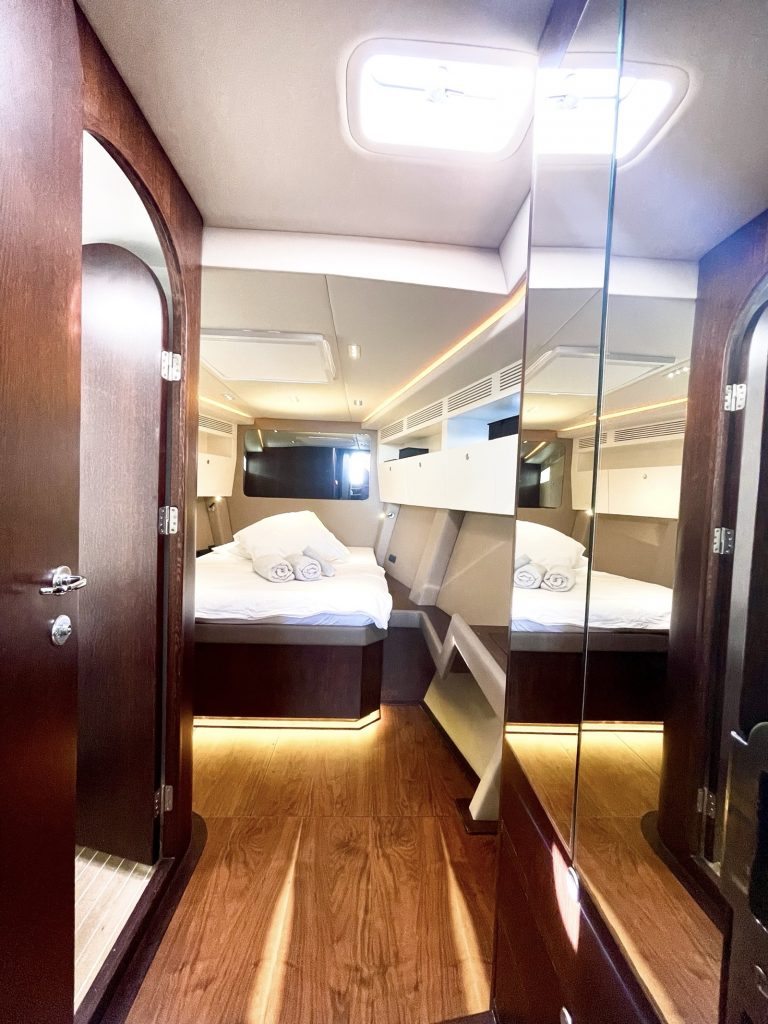

Owner’s Cabin Forward

• Full-size double bed
• Shelf and lockers.
• Mattress 12 to 15cm foam, fabric covered
• Stowage under the bed
• A large hanging locker to starboard against the main bulkhead,
• A comfortable settee to the starboard
• Opening hatches with roller blinds on the cabin ceiling.
• 220 V outlet, AC controllers

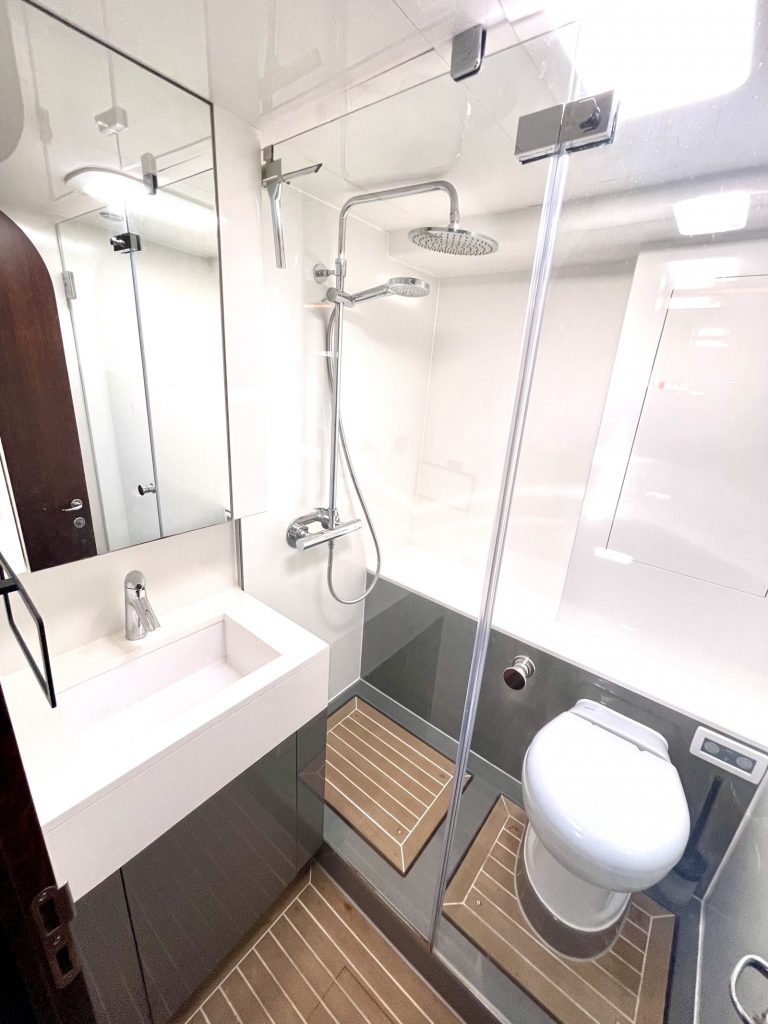

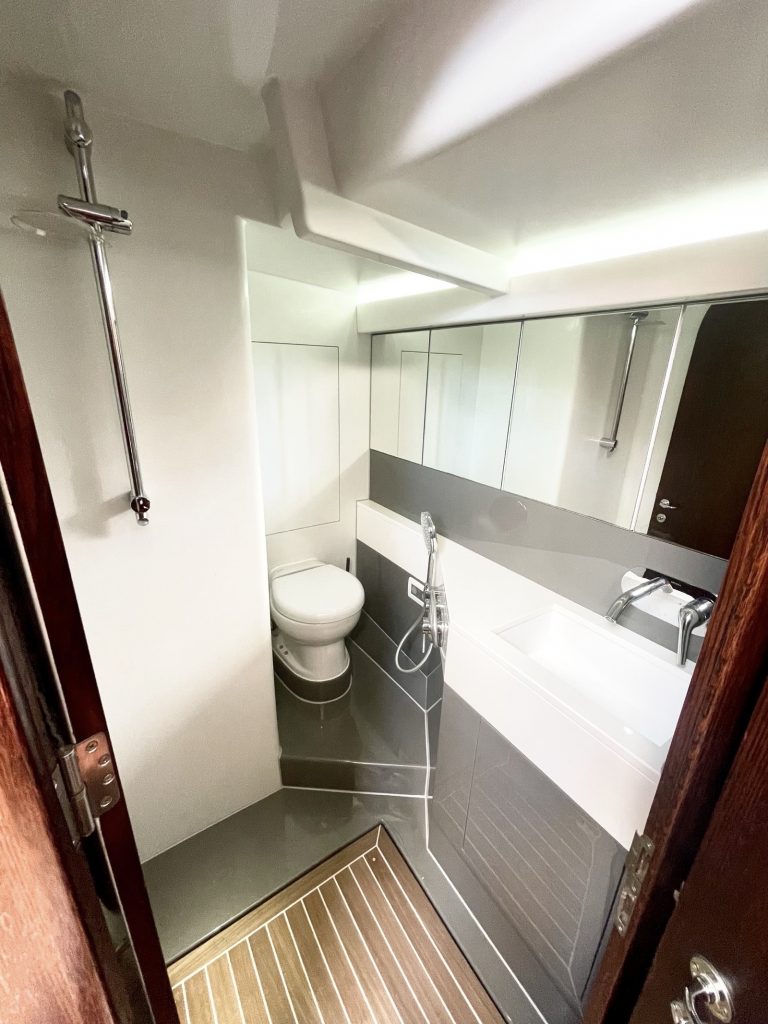

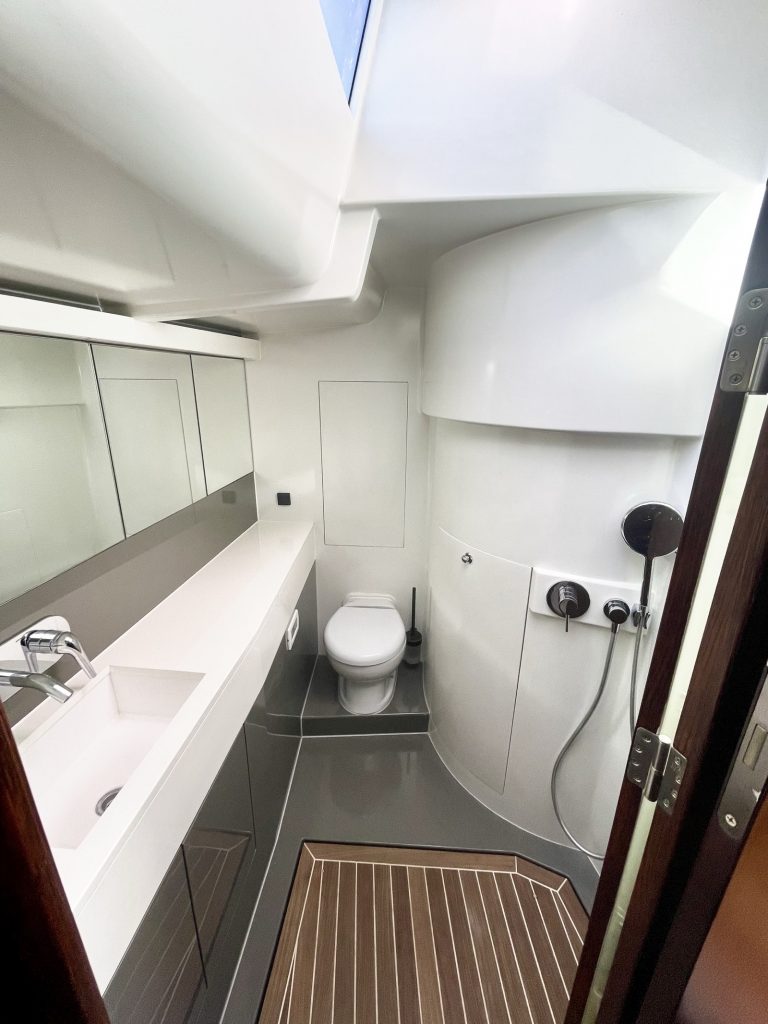

Owner’s Cabin Toilet Compartment

• Separate enclosed shower
• Pressurised hot/cold water.
• Electrical marine head (Tecma) with a black water tank
• Teak floors
• Lockers below the washbasin
• Cabinets above and below the wash basin
• 220 V outlet

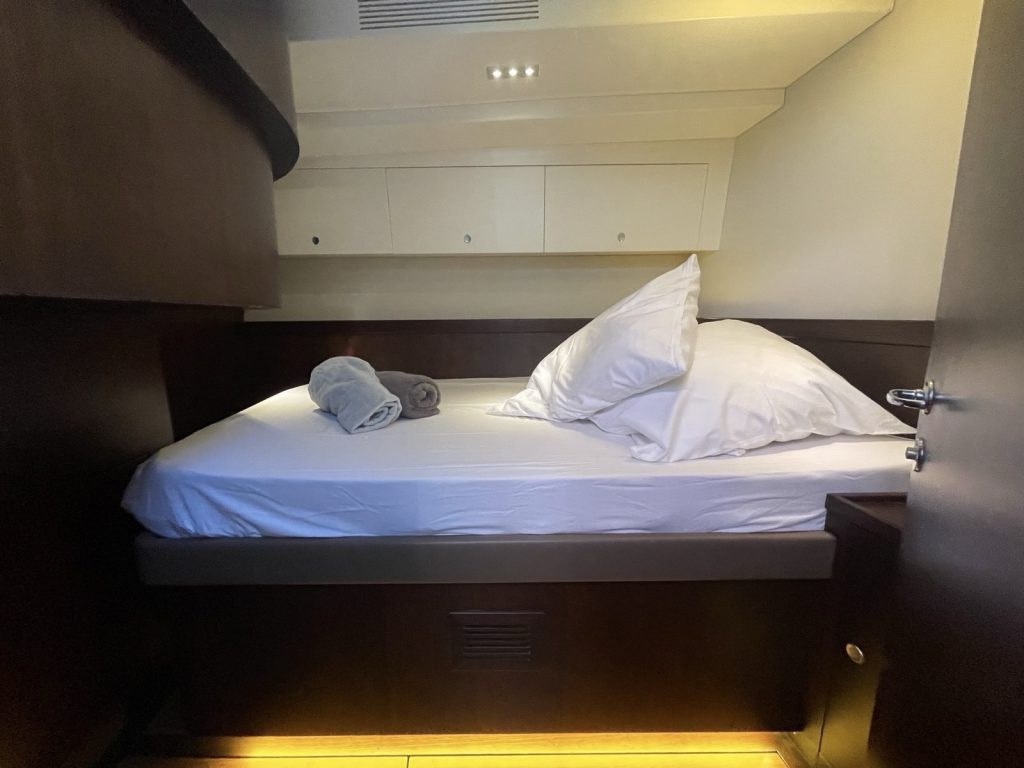

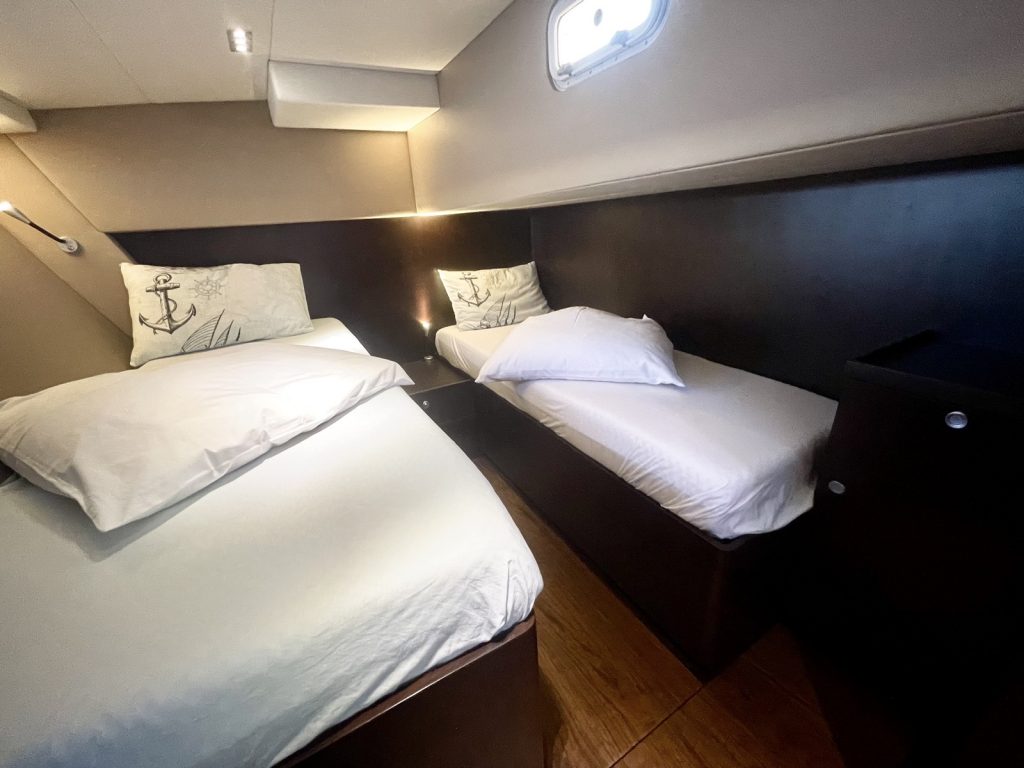

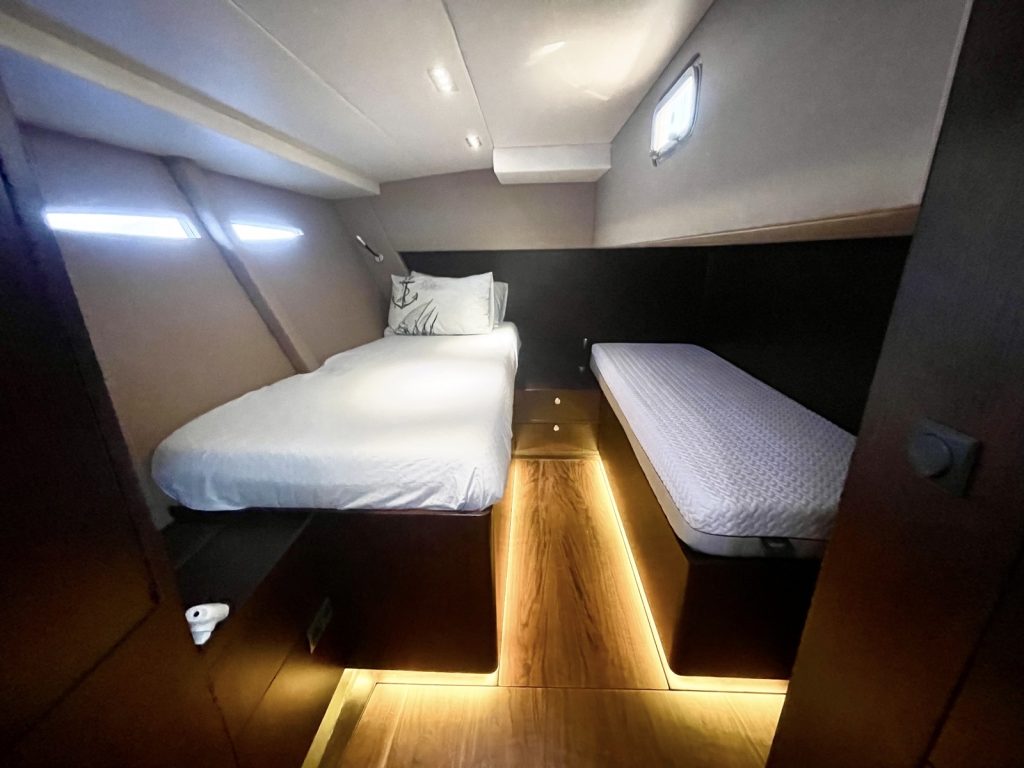

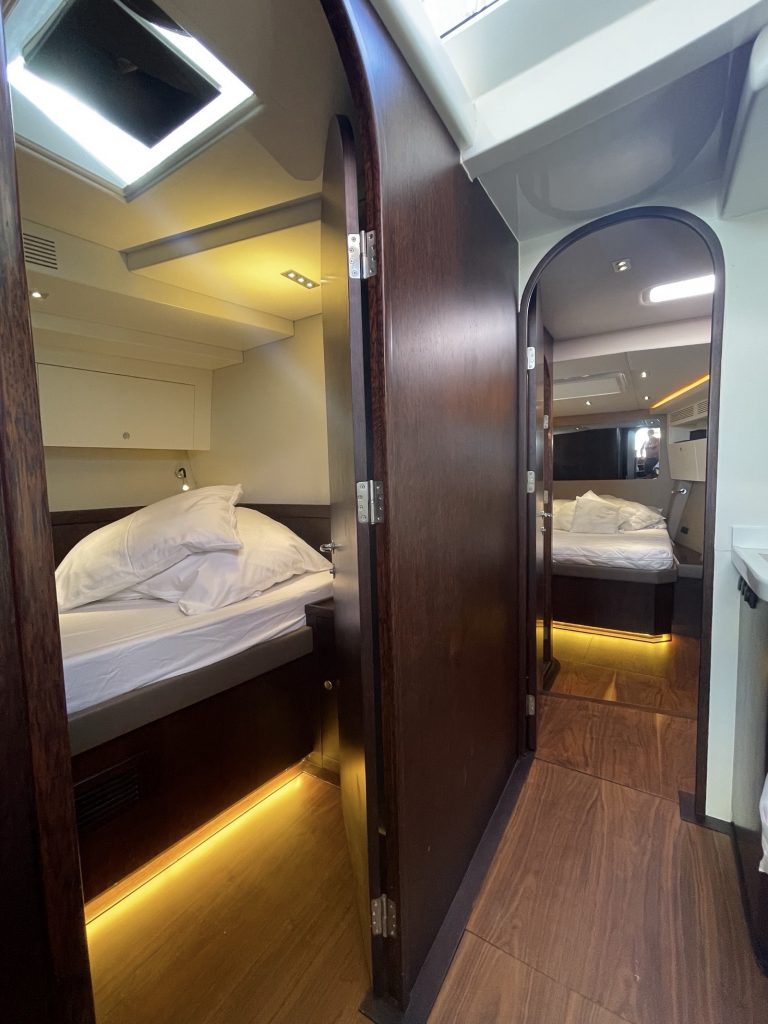

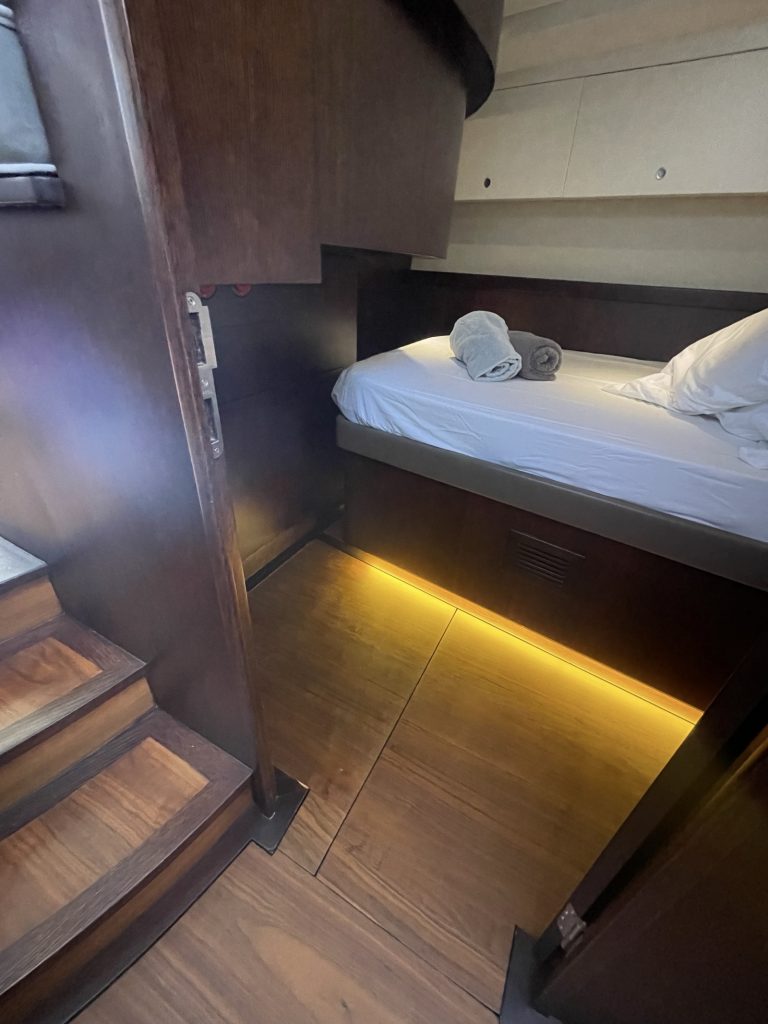

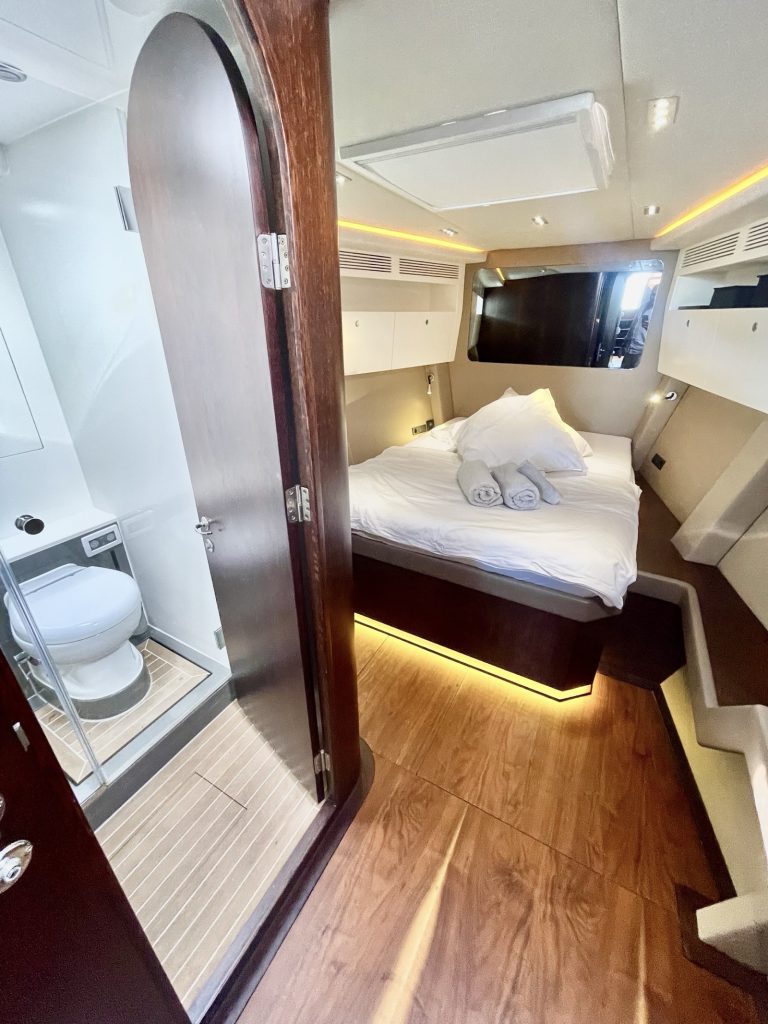

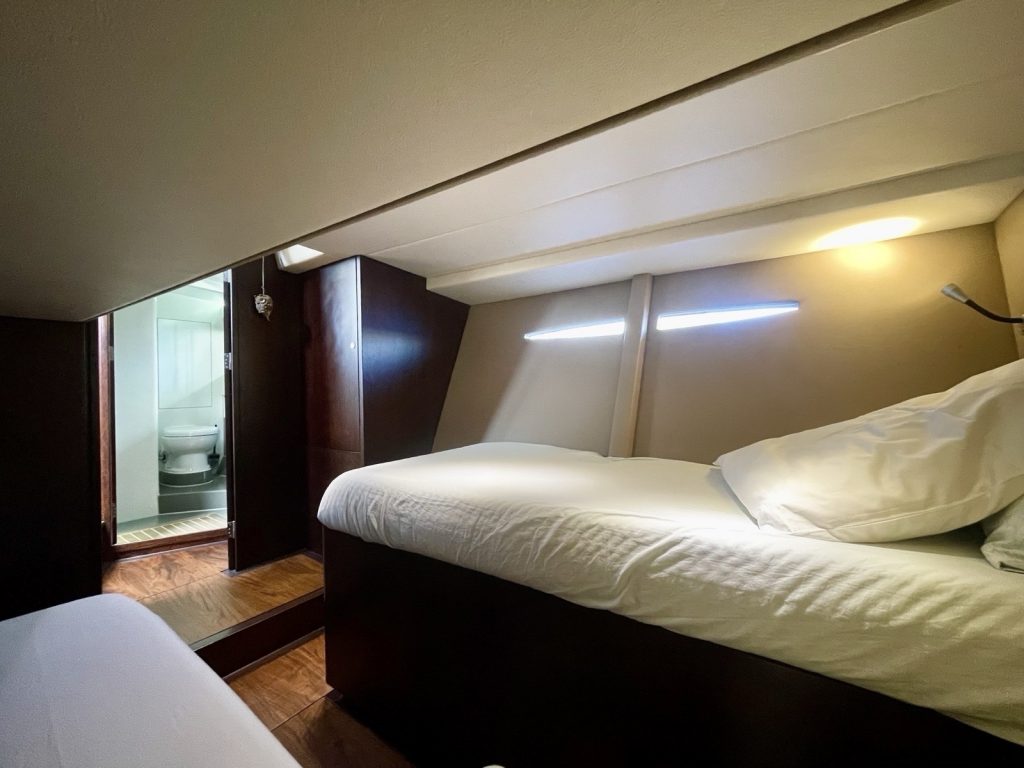

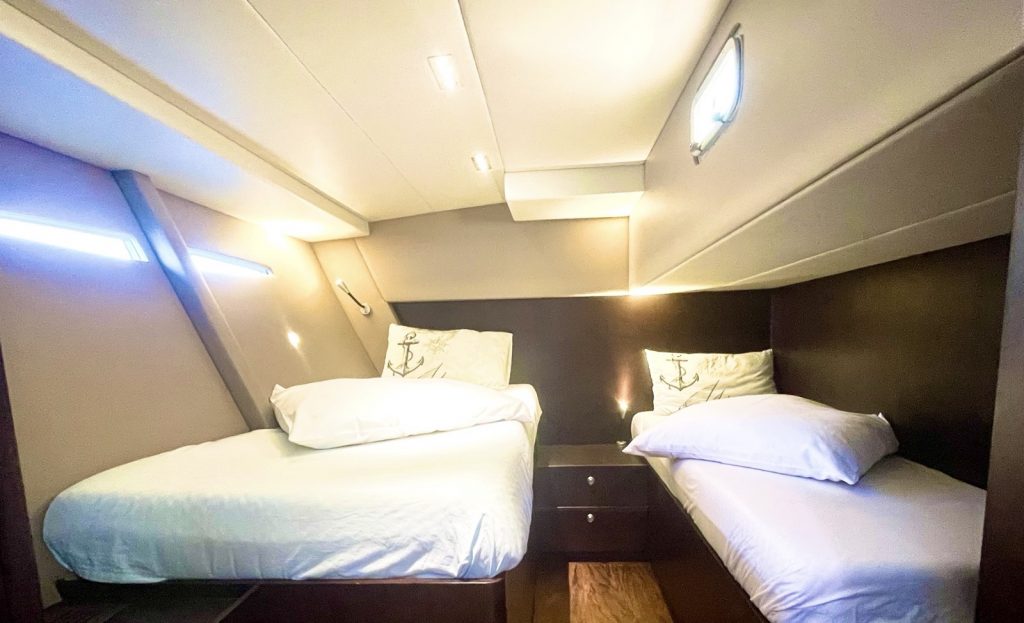

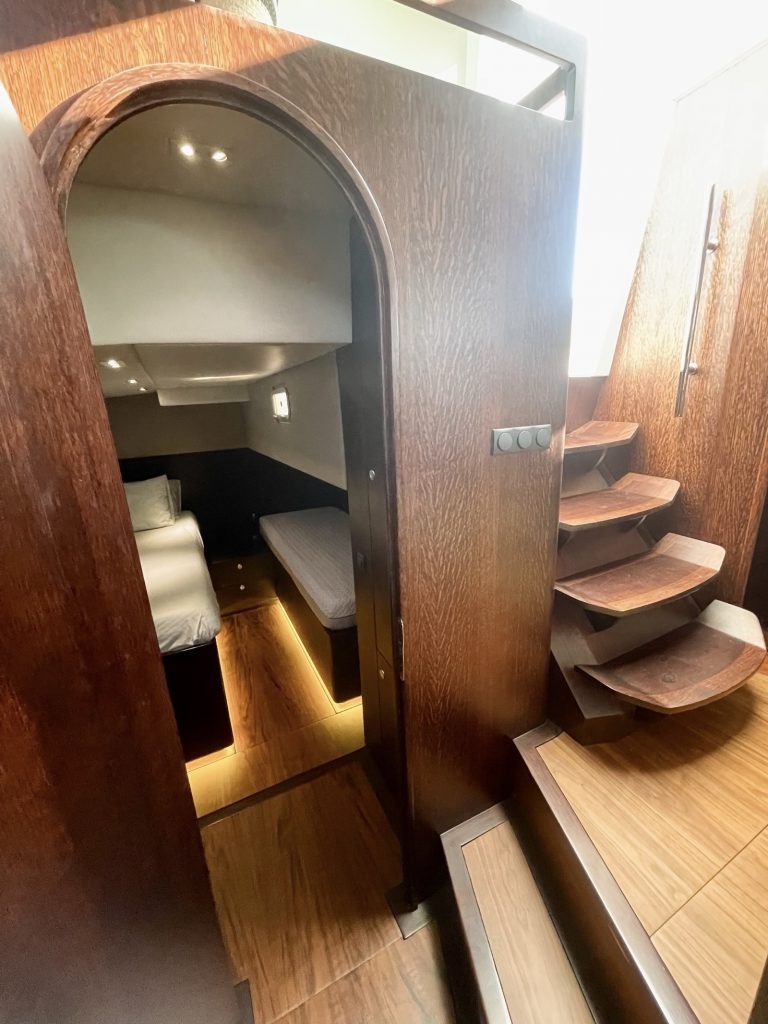

Aft Cabins (PORT AND STARBOARD)

• Access from the saloon, starboard cabin 2 single beds / port cabin 1 double bed
• Ensuite heads with shower
• Hanging locker to the boat side
• A full-size double beds
• Mattresses 12-15 cm foam, fabric covered
• Stowage under berths.
• Hull side liners in foam-backed fabric
• A hanging locker with a shelf above.
• 2 reading spot lights.
• 220 V outlet
• An opening portlight to the cockpit side with a shade

Center (4th) Cabin

• Access from the saloon
• A full-size double bed
• Mattresses 12-15 cm foam, fabric covered
• Stowage under berths.
• Hull side liners in foam-backed fabric
• A hanging locker with a shelf above.
• 220 V outlet

Sail Locker

• The front section of the yacht forms a sail locker and is separated from the rest of the yacht by a watertight bulkhead to enable storage of sailing gear,
• An automatic bilge pump is installed in the bottom of the locker aft
• A large opening hatch on the locker ceiling

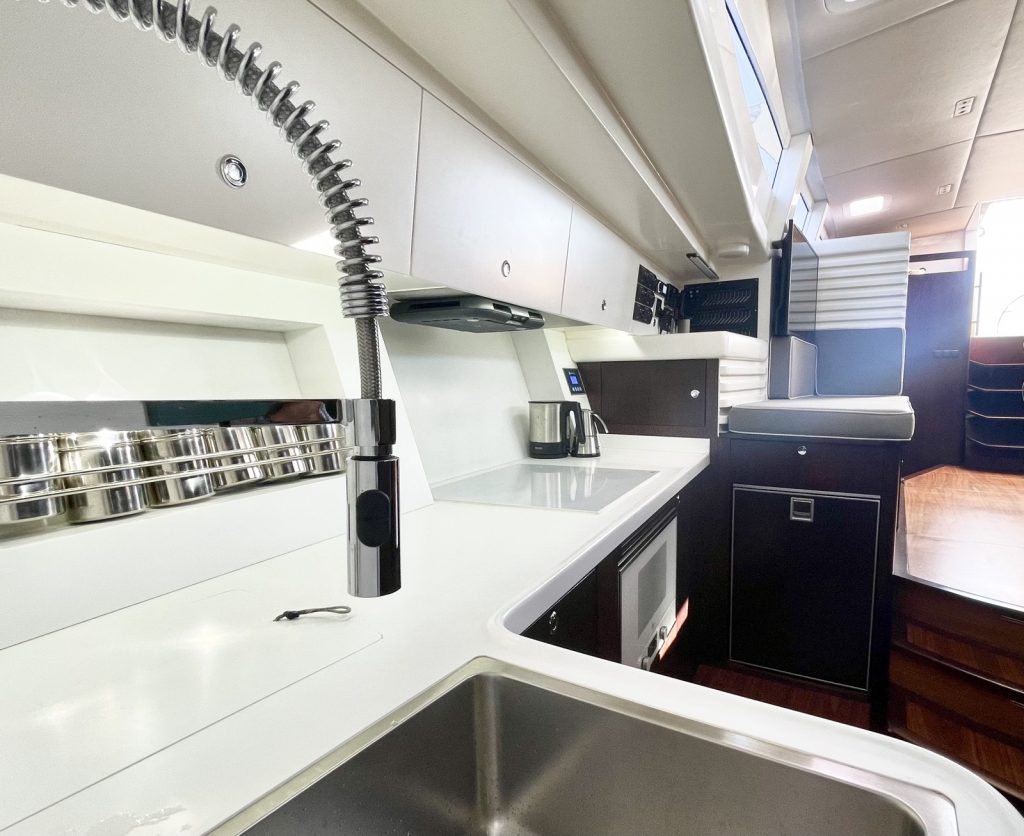

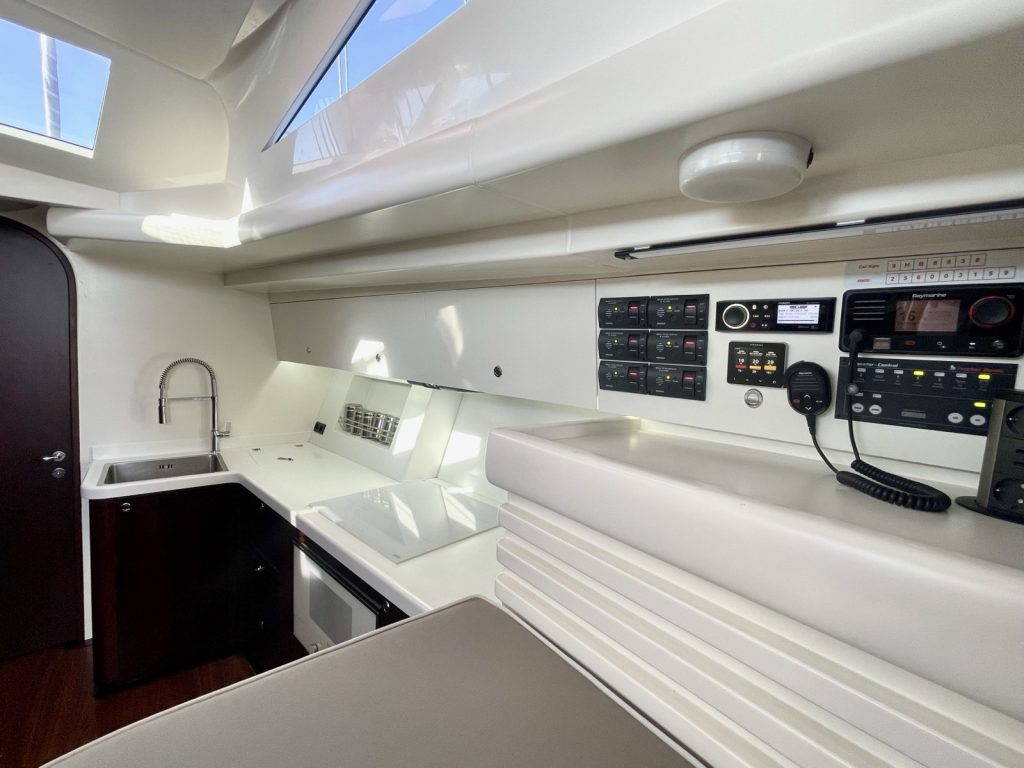

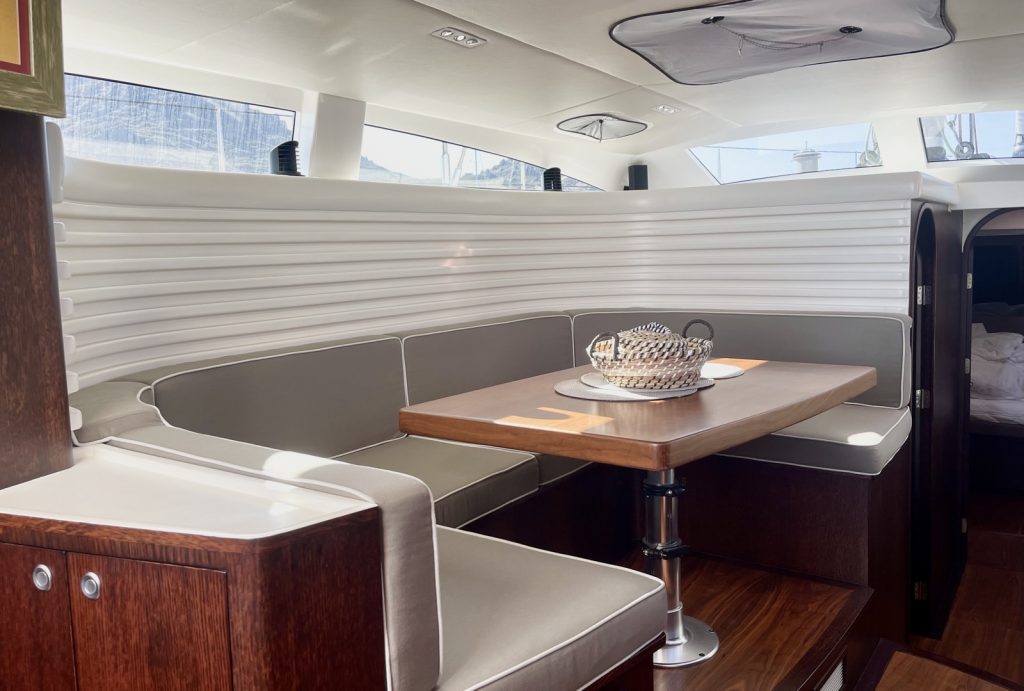

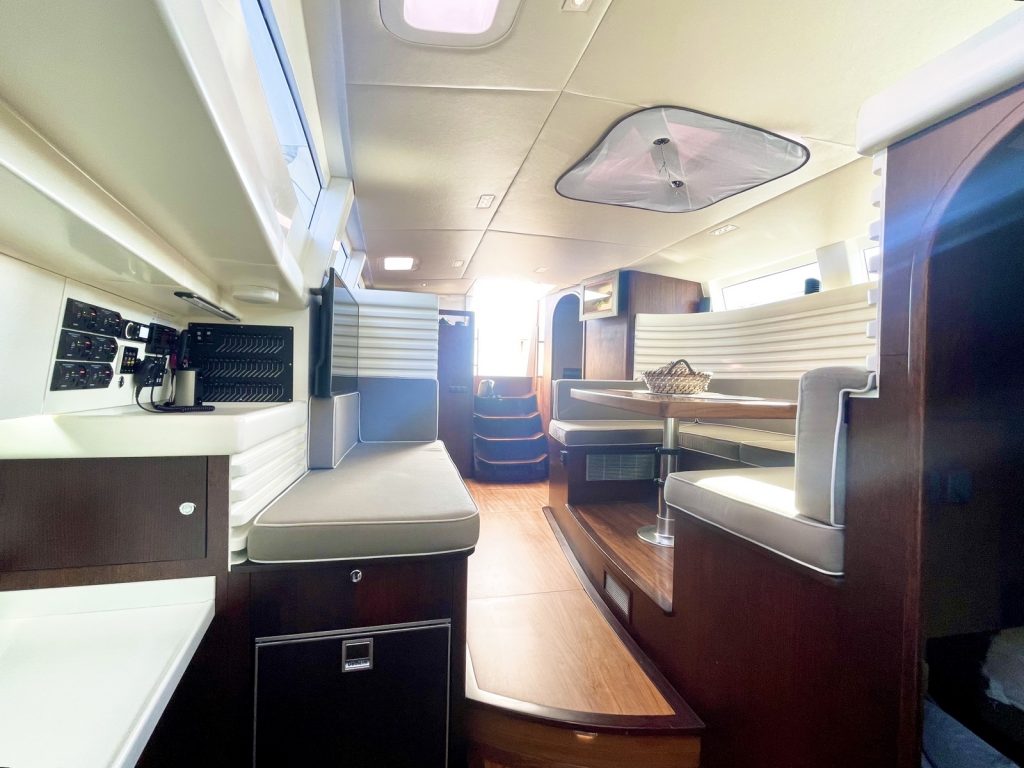

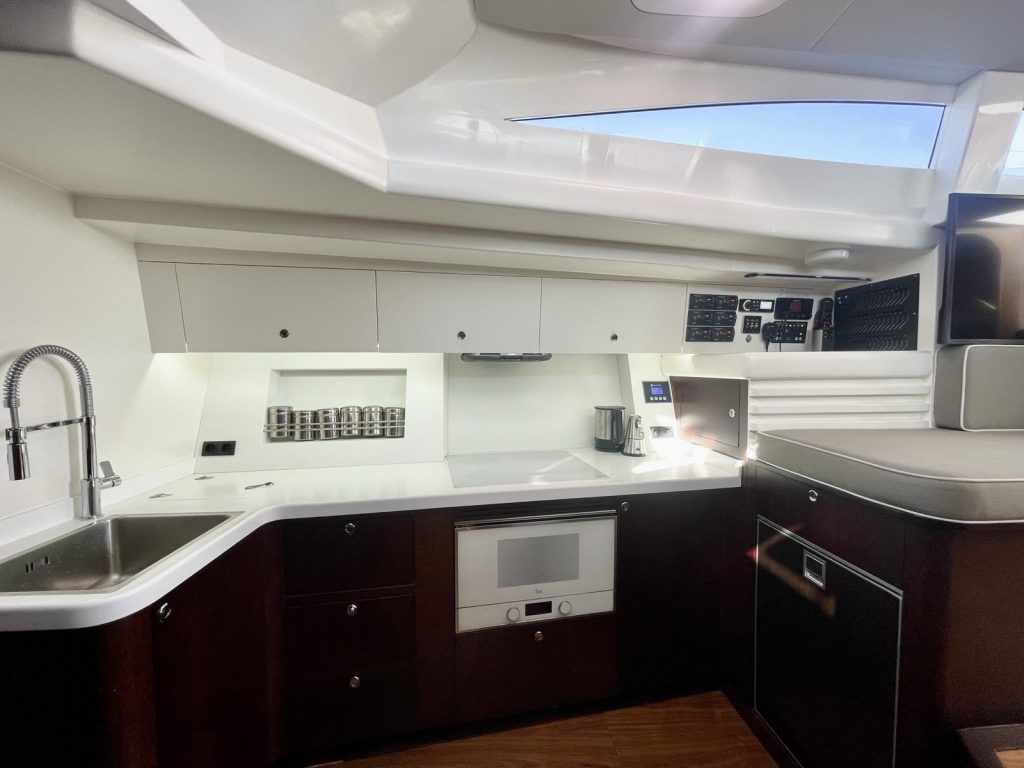

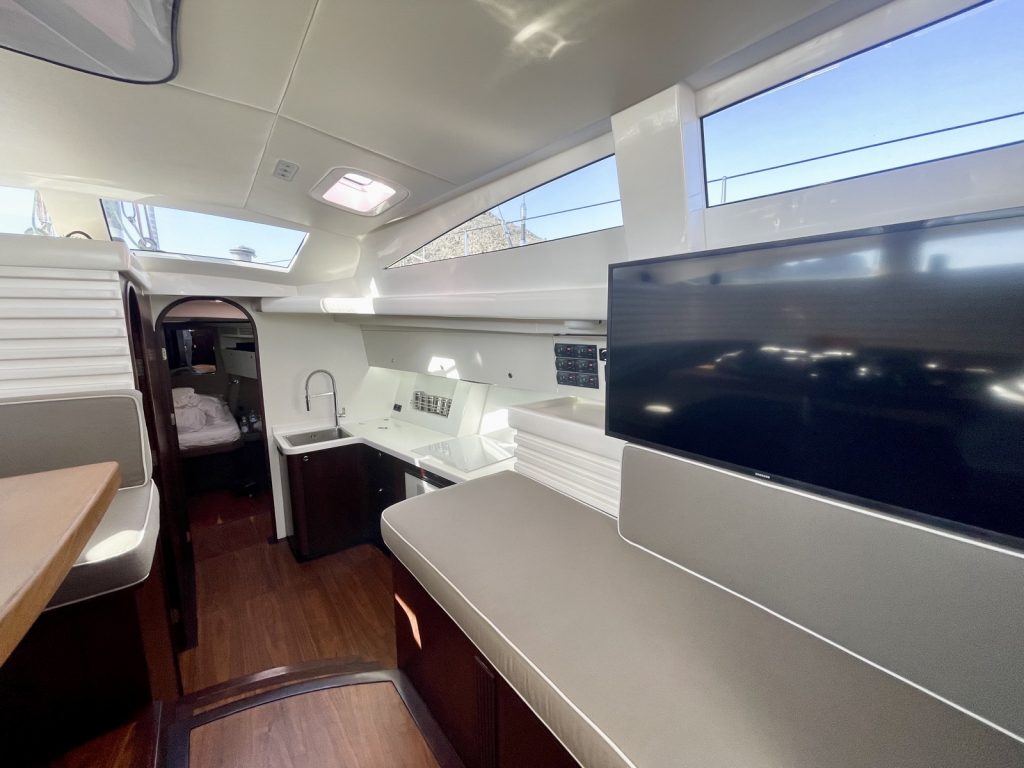

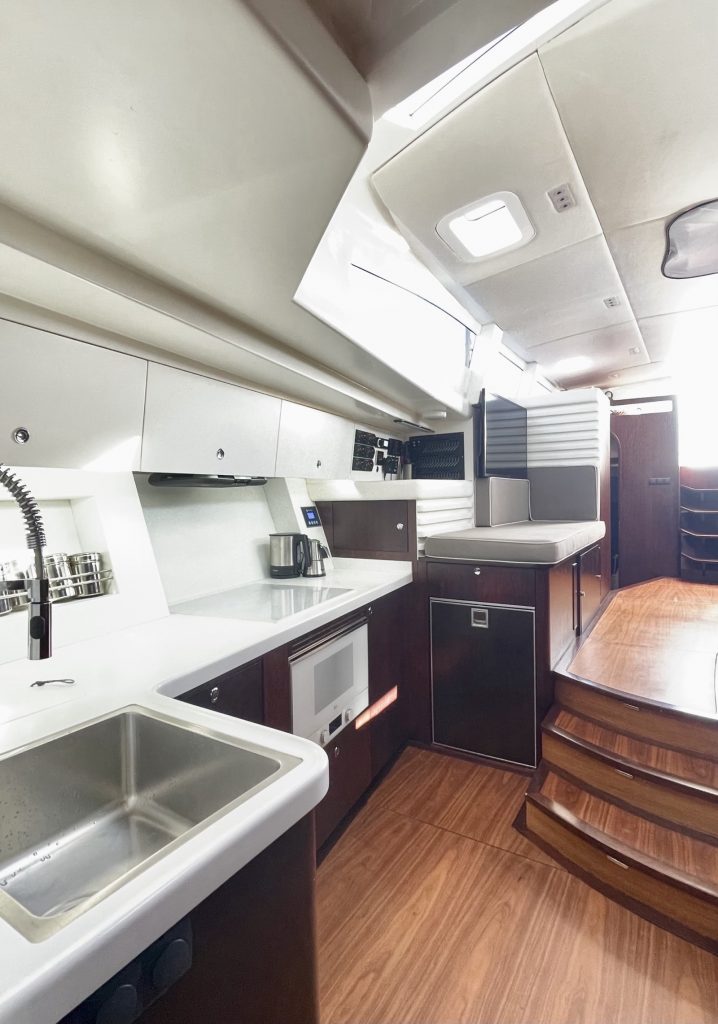

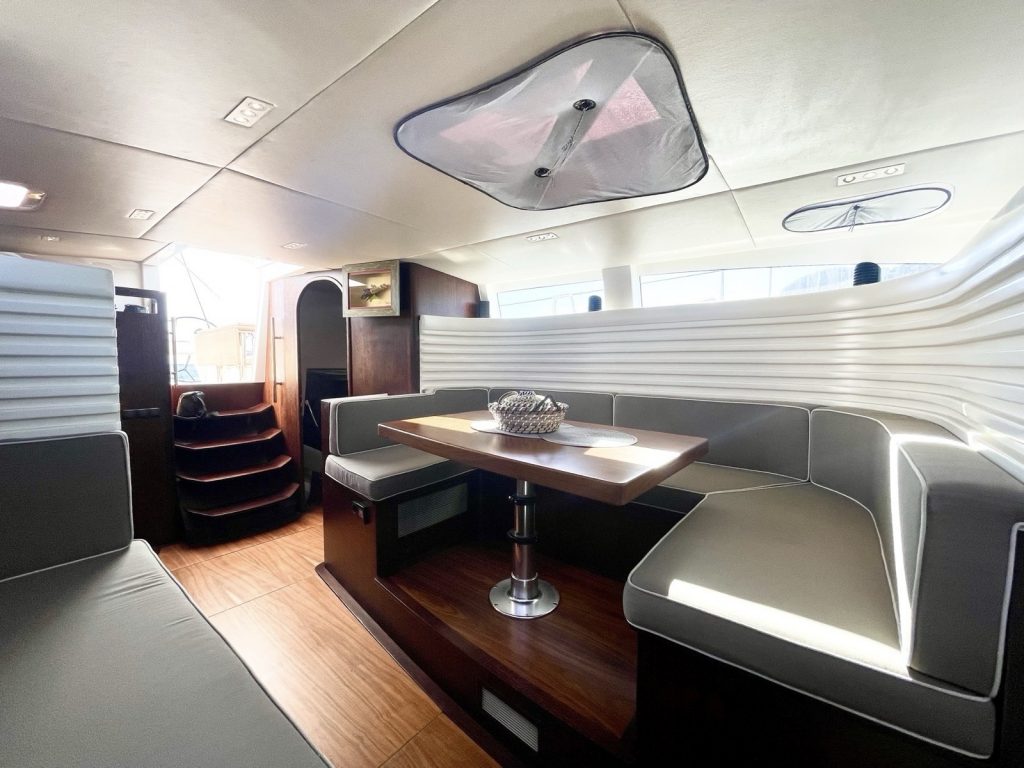

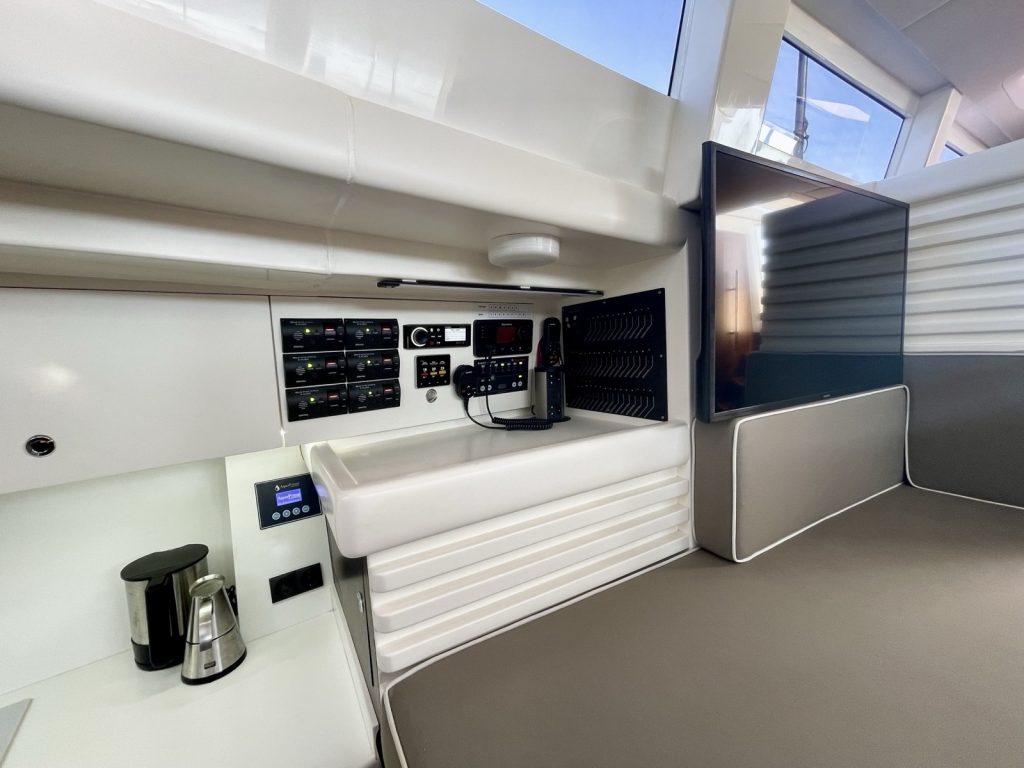

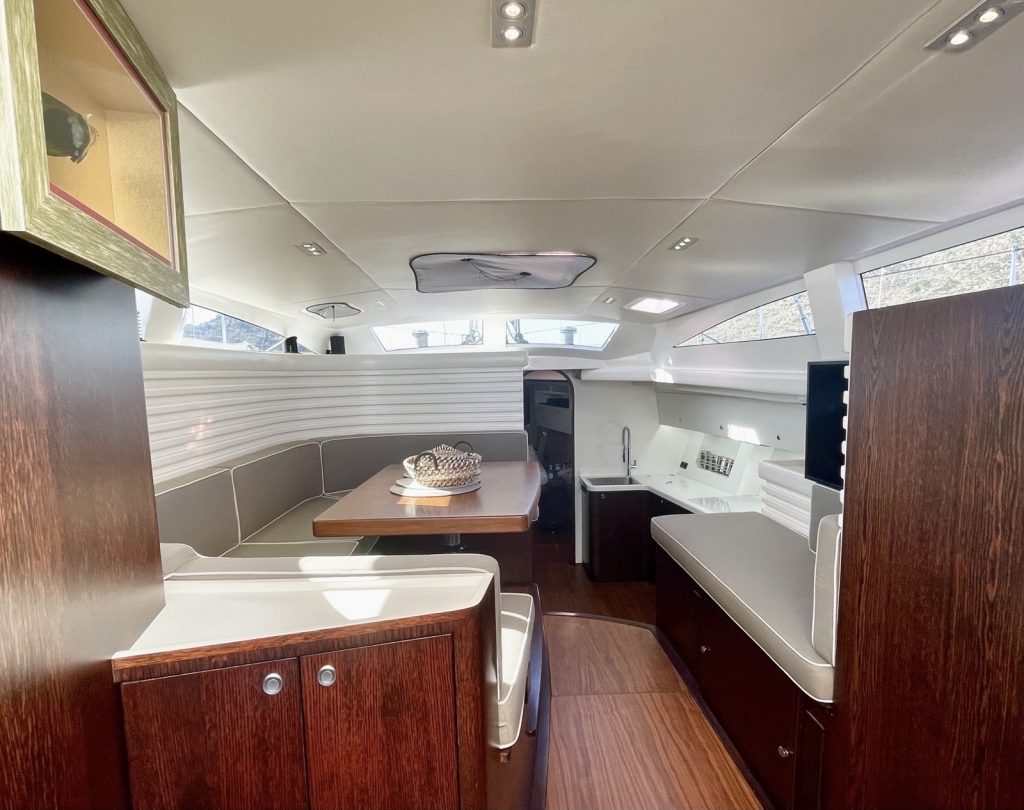

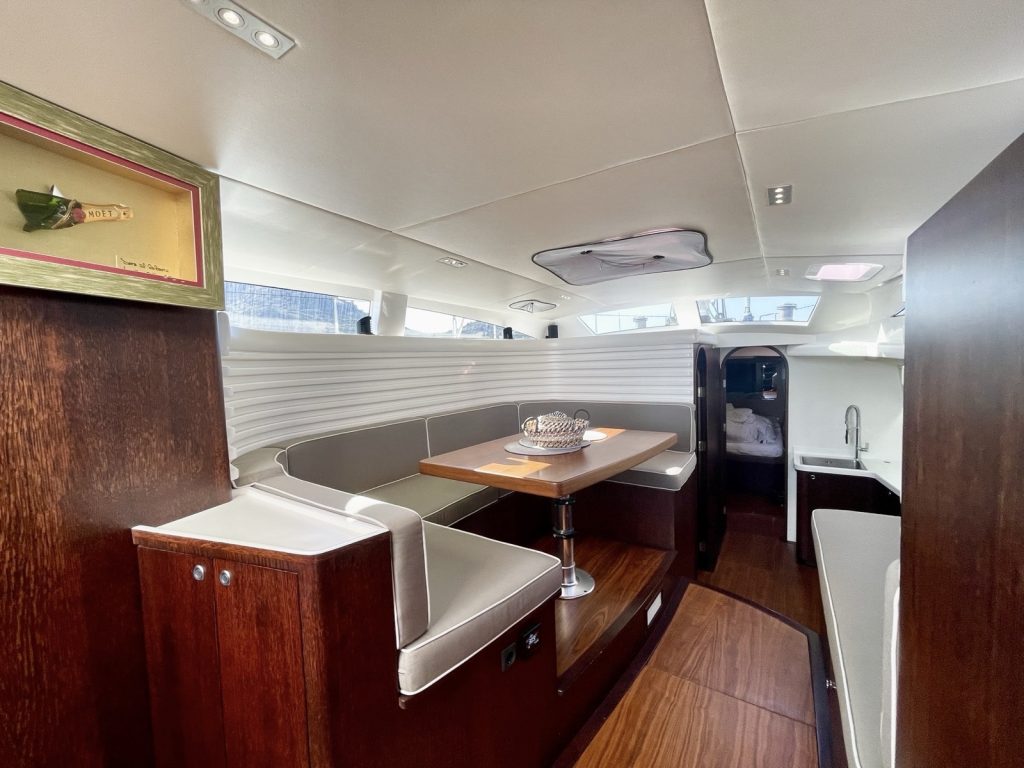

Saloon and Kitchen

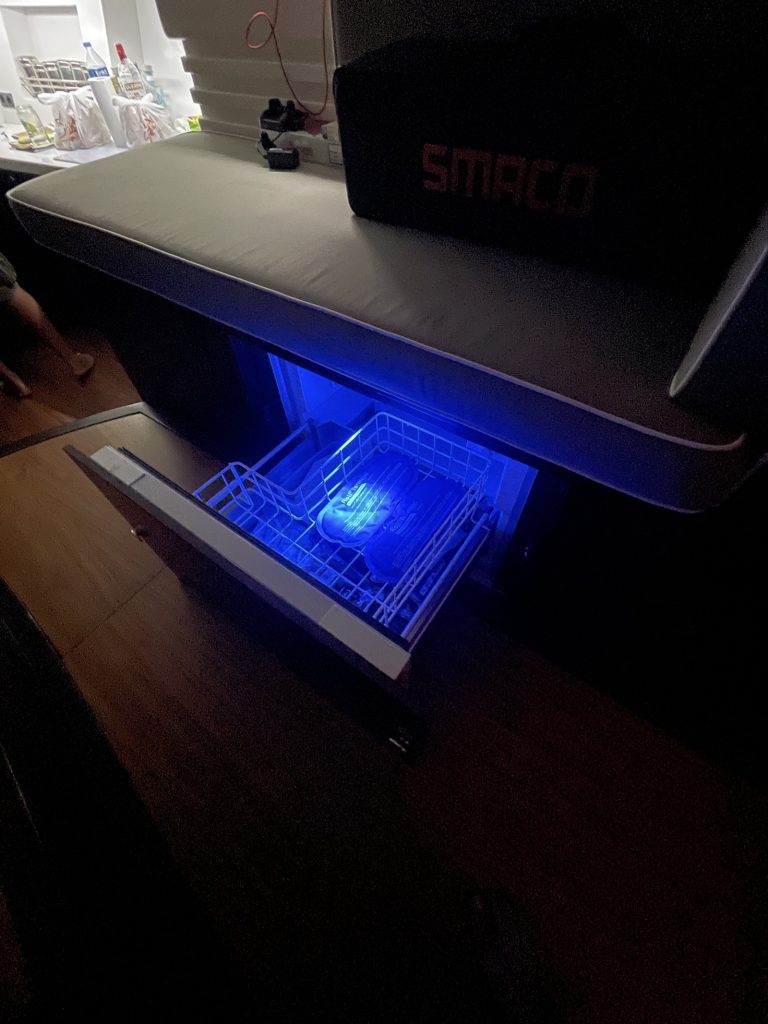

• Isotherm Fridge
• Deepfreeezer
• Dometic Aspirator
• Induction Franke Stove
• Teka Owen
• SS sink
• Sitting area
• Storage area
• Samsung OLED TV

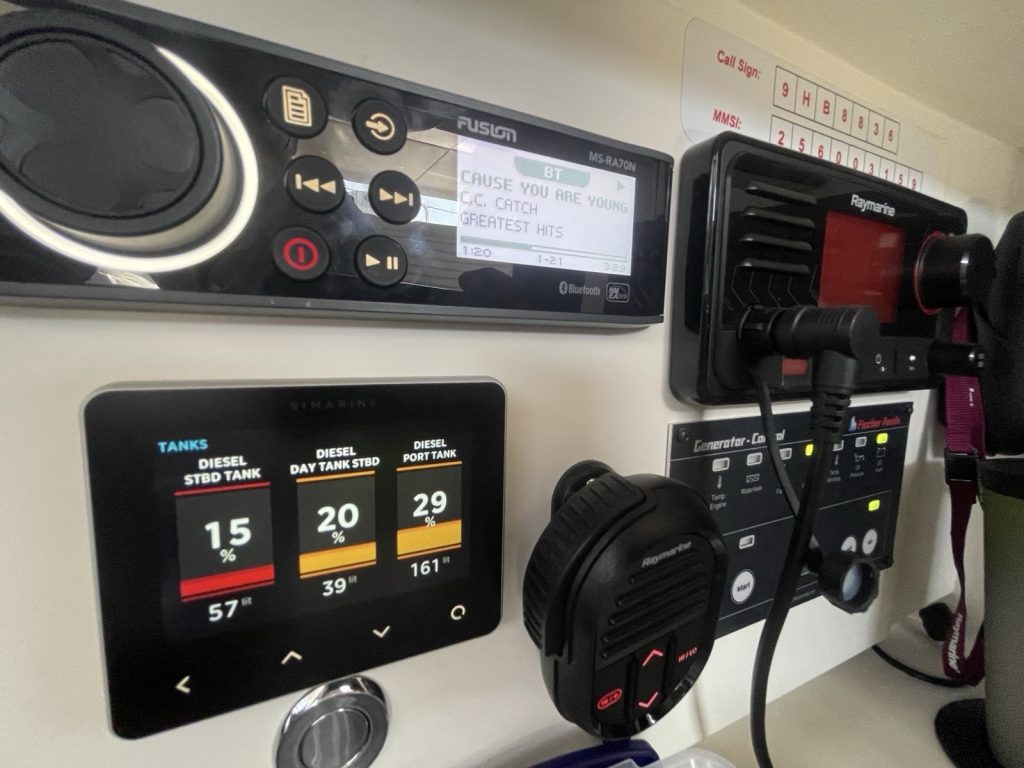

• Fusion control units, and Bose speaker sound system with subwoofer (interior),
• JL audio cockpit sound system
• Water maker control unit
• Generator control Unit
• Raymarine VHF
• All switches renewed
• Saloon table convertible to a large bed

Electrical / Mechanical

• Cummins 180 hp engine 1490 hours (25 Sept 2024),  is mounted on resilient mounts with special hard rubber to prevent excessive vibration.
• Folding 4-blade propeller Bruntons
• Sound and heat insulated engine compartment
• Access to engine from the saloon floor/ access from aft port head side wall
• A fuel filter with water separator is built in the fuel supply system.
• A single lever engine control, is mounted on the starboard side of the steering position.
• Three aluminium fuel tanks
• Manuel and automatic bilge pumps (Johnson)
• 24 V DC/ 220 V AC
• 18 KVA generator Ficher Panda 1889 hrs (25 Sept 2024)
• Inverter and Charger (Victron)
• Lewmar 24/48V  bowthruster
• Watermaker Aquaprime 250 lt/h

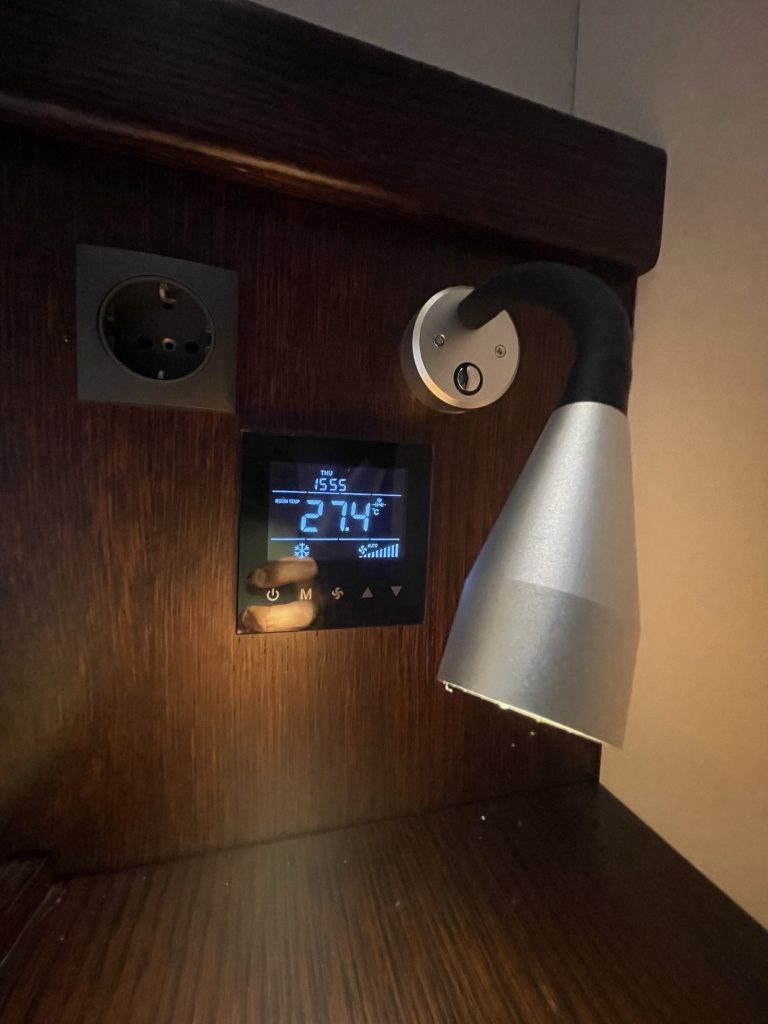

• Air conditioning 5 units (12000 Btu Saloon and 9000 Btu cabins) SeaMach
• Batteries 12x Main service dedicated, 6x Forward Service dedicated, 2x Engine Starter and 1x Generator Starter
• Battery Chargers Victron x4 dedicated

Lights

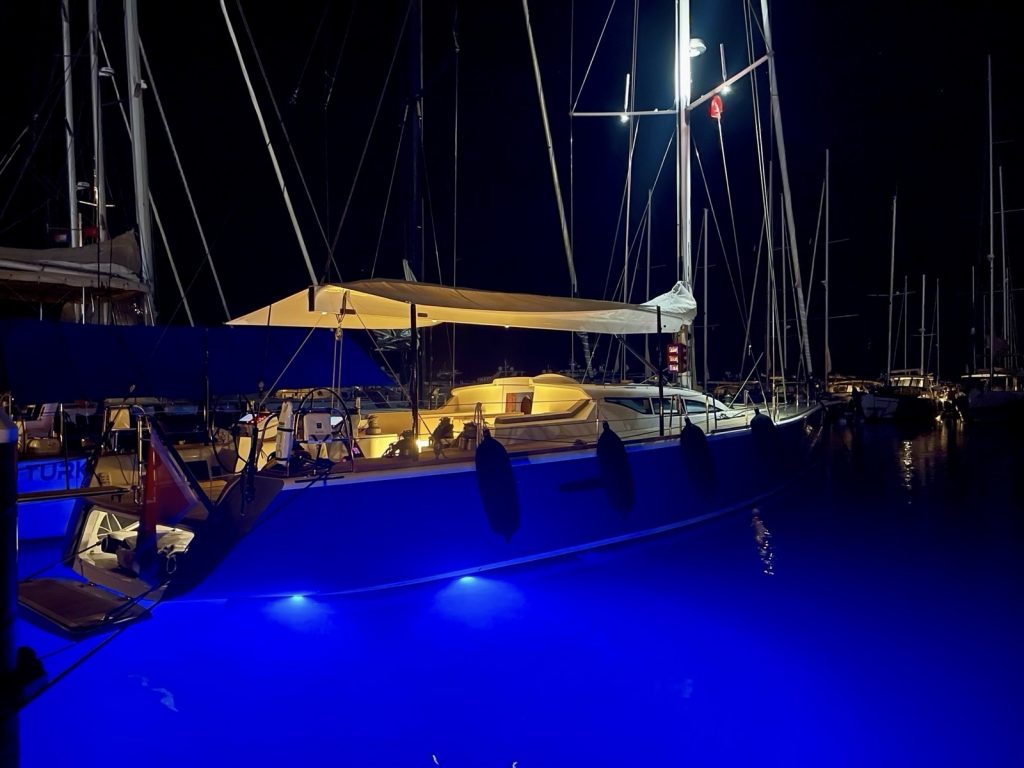

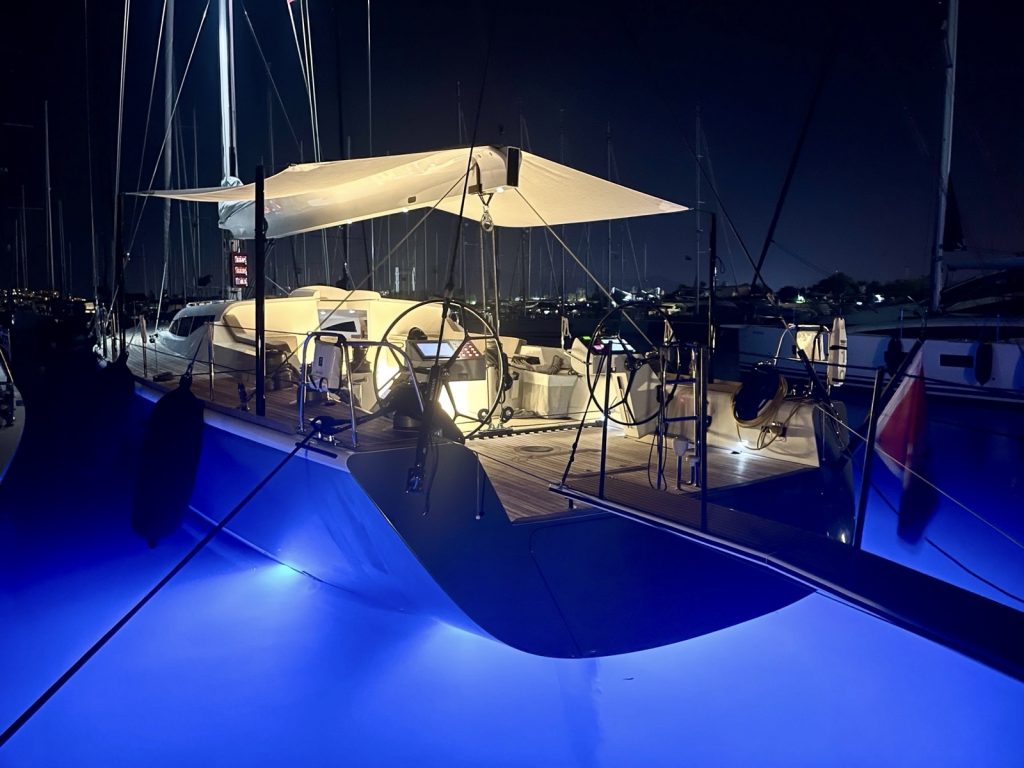

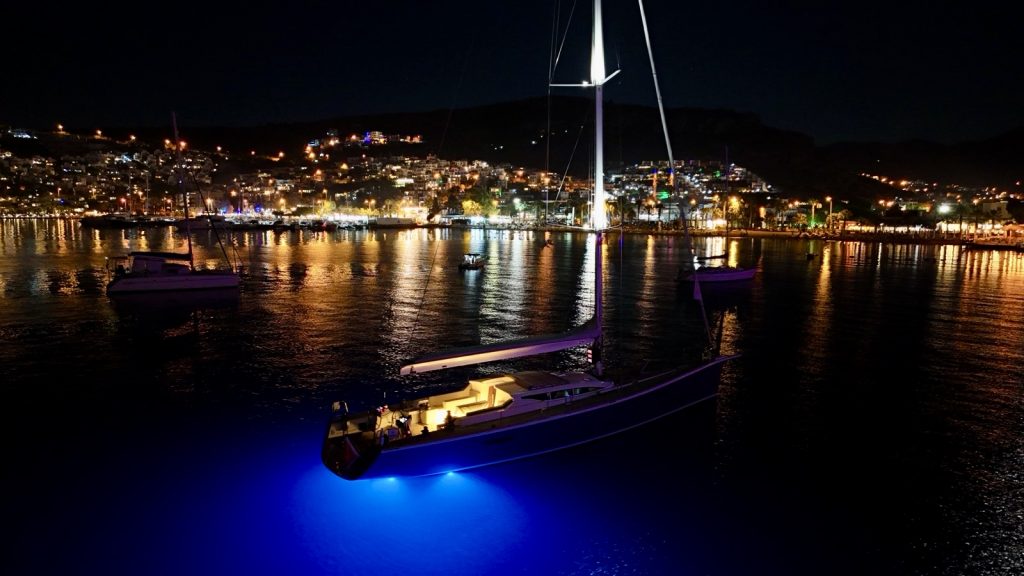

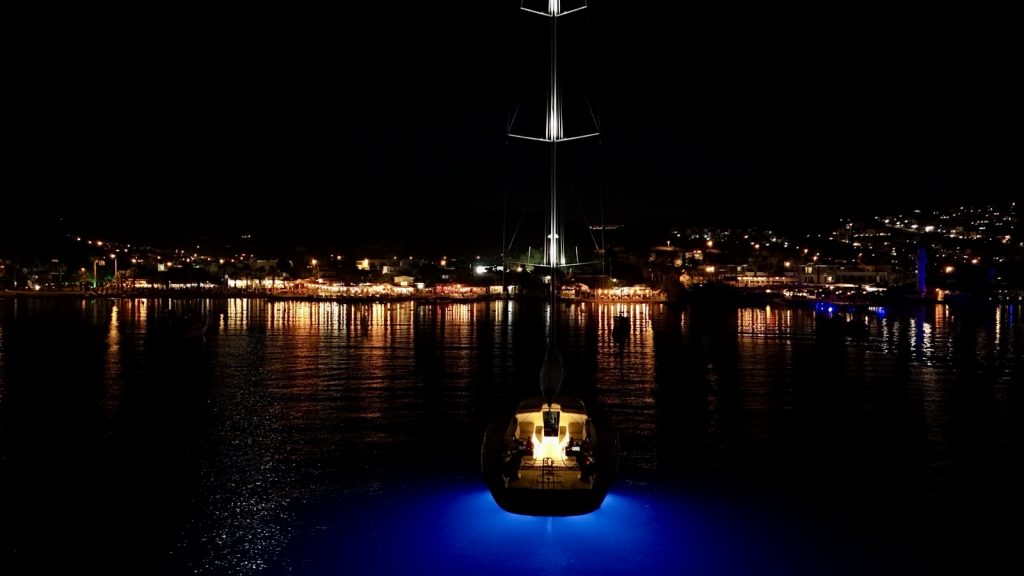

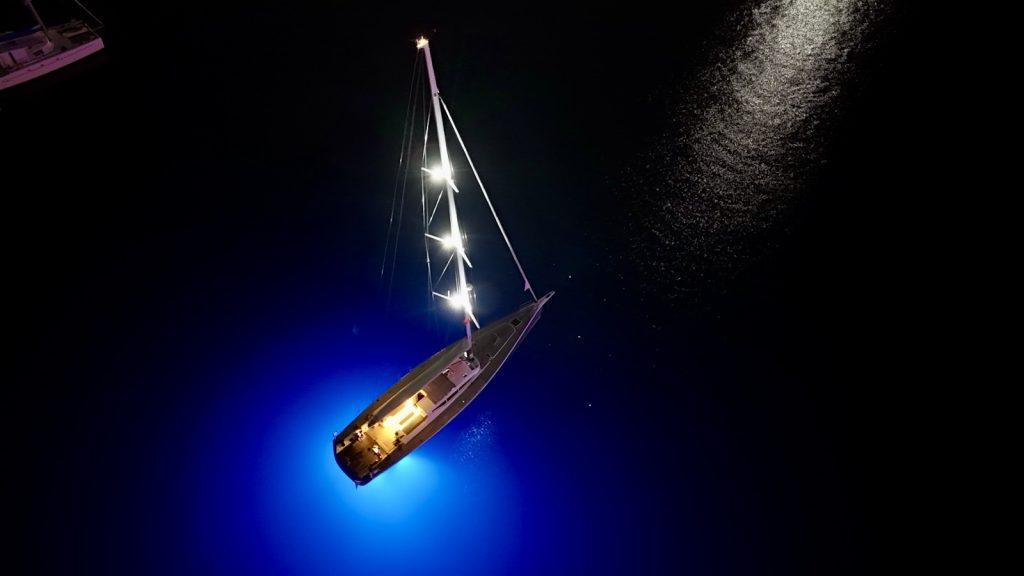

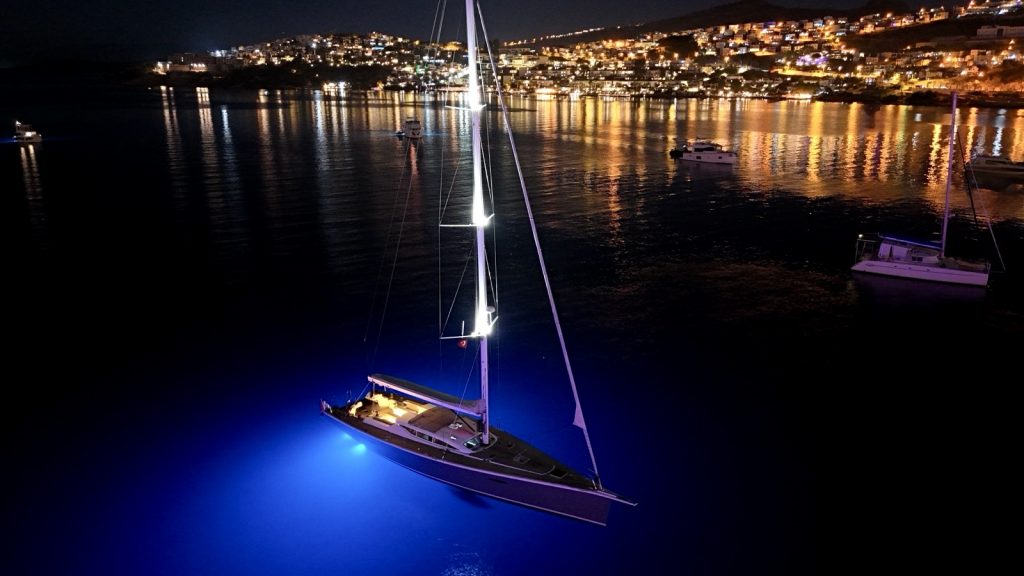

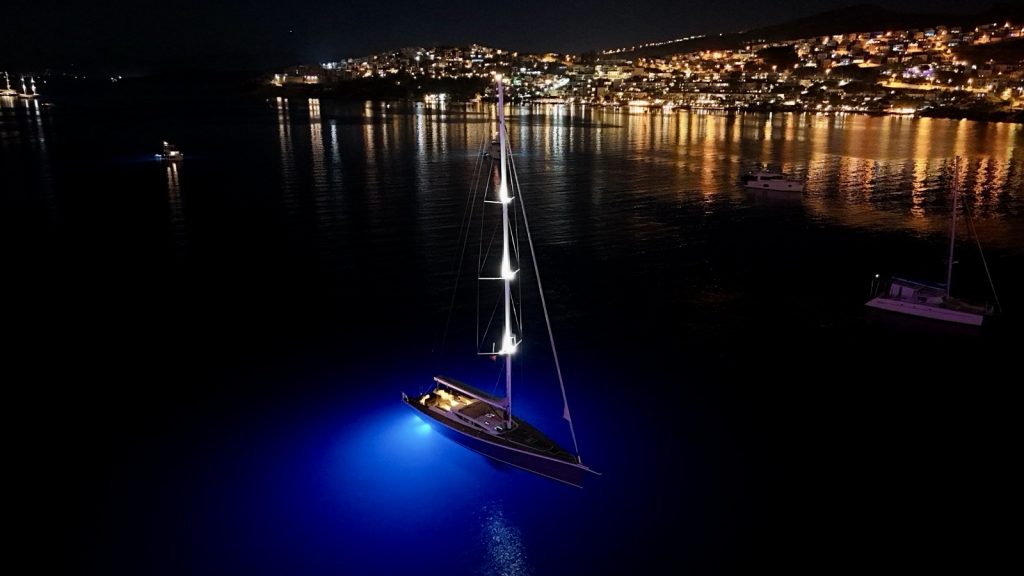

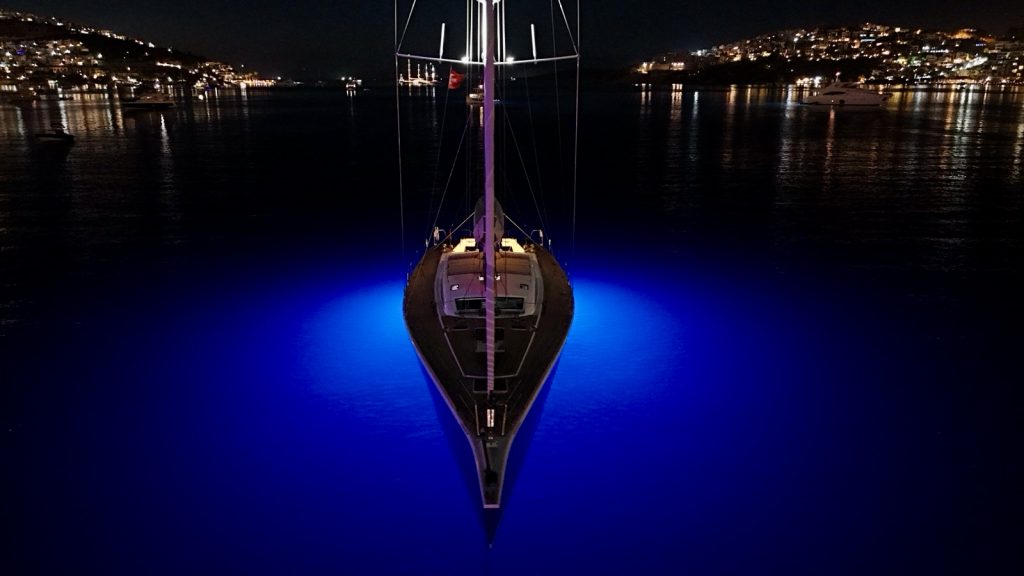

• Underwater lights Lumitec Seablaze (Bi-color white and blue)
• Dimmable spreader lights x 6
• Dimmable spreader deck lights
• Led navigation lights Aquasignal
• Led ambiance lights on cockpit
• Led boom cockpit lights
• Interior led lights

Navigation Instruments

• Raymarine Chart Plotters Touch Screen 12’ Axiom Plus 12
• Otopilot Raymarine 1070S

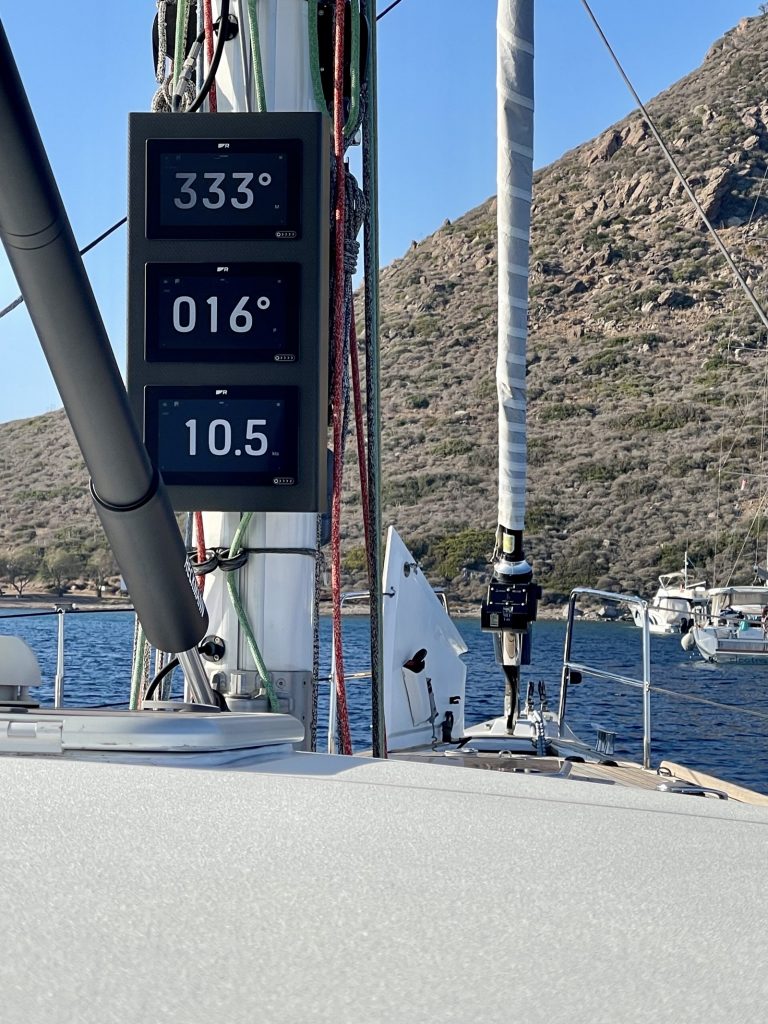

• Axiom 9’ mast screens x3
• I70S Navigation instruments
• Lewmar Chain Counter
• RMK 10 control units x 2
• Silva Compass
• AIS Raymarine (receiver and transmitter)
• VHF Raymarine
• Remote otopilot unit
• Simarine control unit
• Raymarine GPS
• Raymarine Radar Quantum 2Doppler

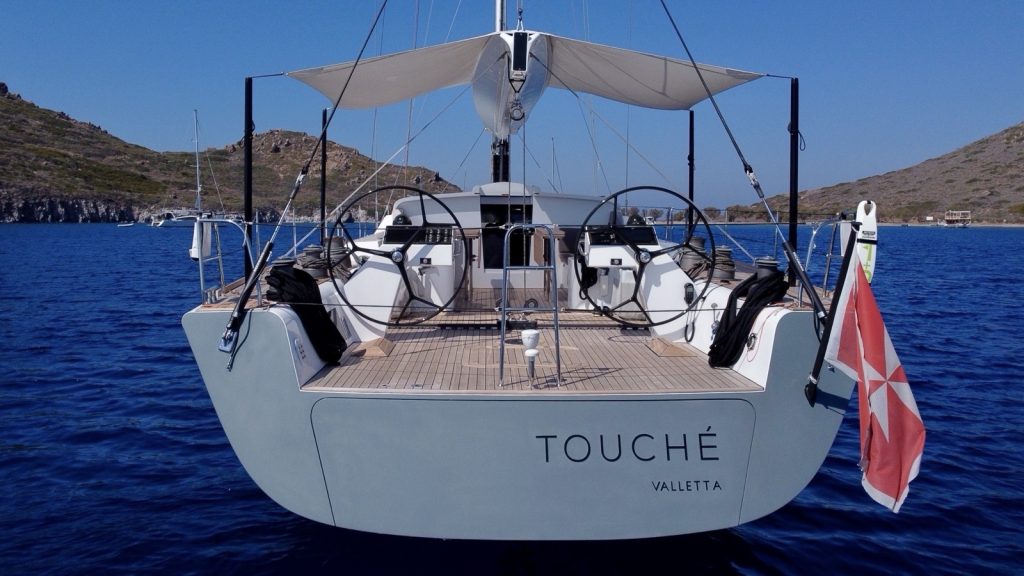

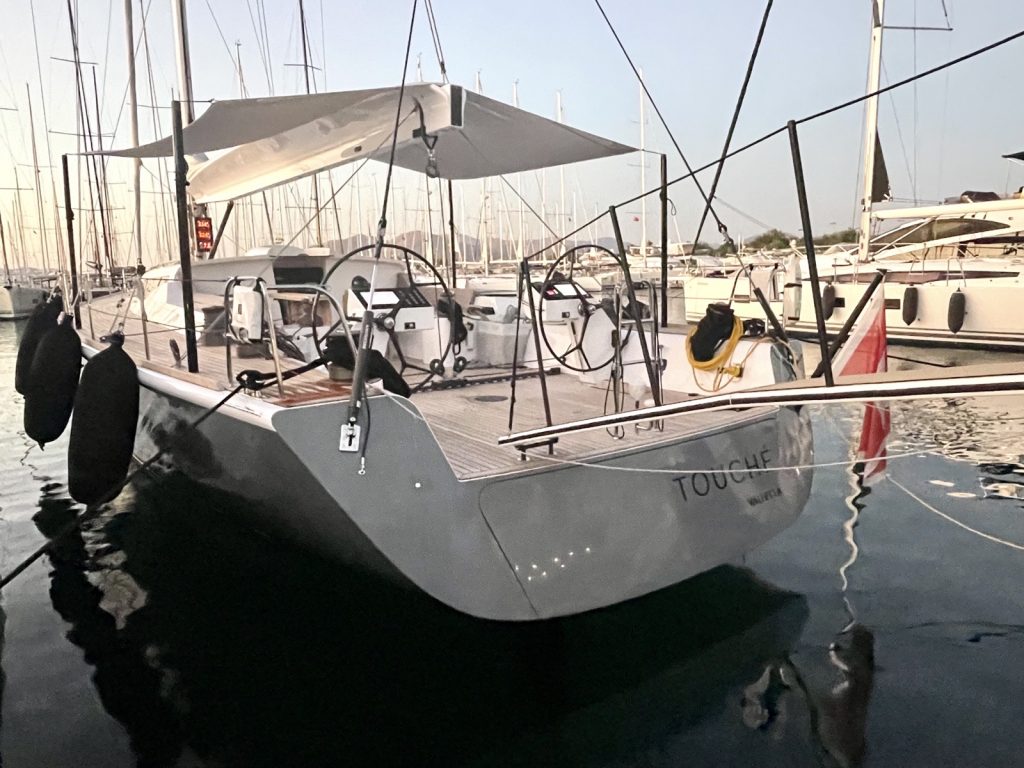

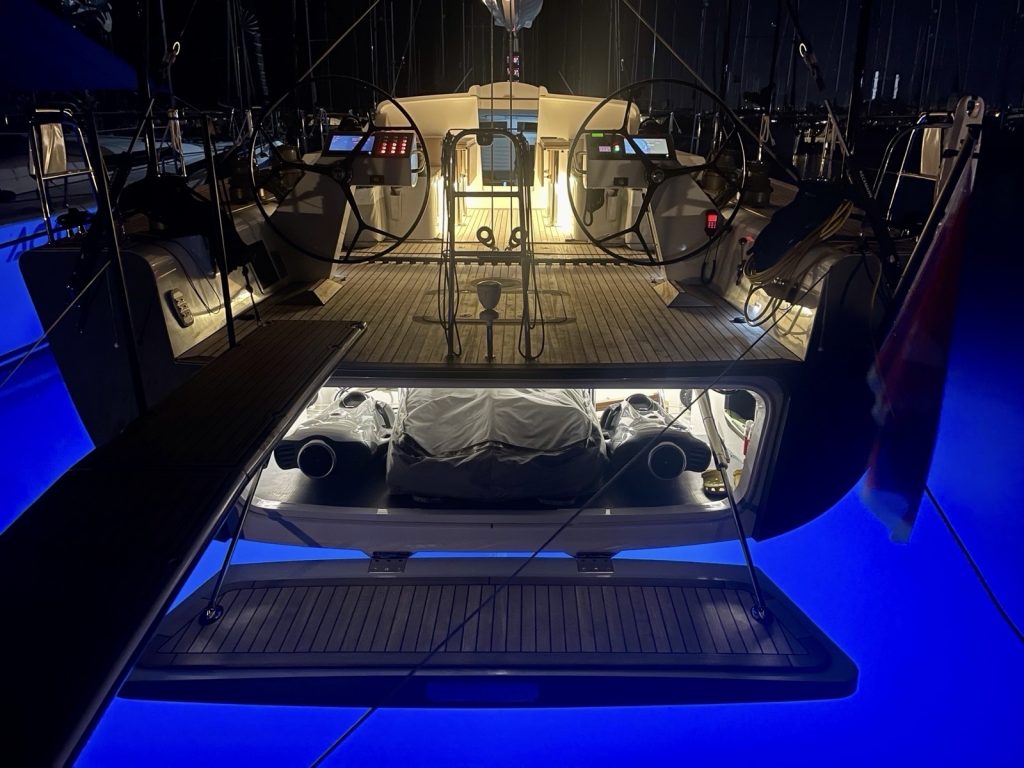

Transom door aft storage area

• Hydraulic opening aft transom door
• Storage area for dinghy
• GRP battom dinghy (3.1 m) and Torpeedo outboard electrical engine (Travel 603)
• Seabob FS5 x 2 (2022) charger units

Security Equipement

• 8 life west
• Soft pack life raft 8 pers
• 2 x emergency ledder
• Dromboy MOB System

  Touche was Refitted almost entirely in 2021 on owner demand at Magmarin Shipyard Main works done 2021:

• Interior Furnitures renewed (Dark veneer)
• Floors renewed
• Kitchen and navigation area completely renewed
• Kitchen Equipements renewed
• All teak deck reviewed
• Carbon boom modified to Park Avenue
• Navigation Instruments renewed (2021)
• Sails One Sails renewed (2021) Forte 220C Fullbatten main vertical batten jib
• All ropes are renewed (2021)
• Deck equipments
• All pumps and electrical system renewed (2021)
