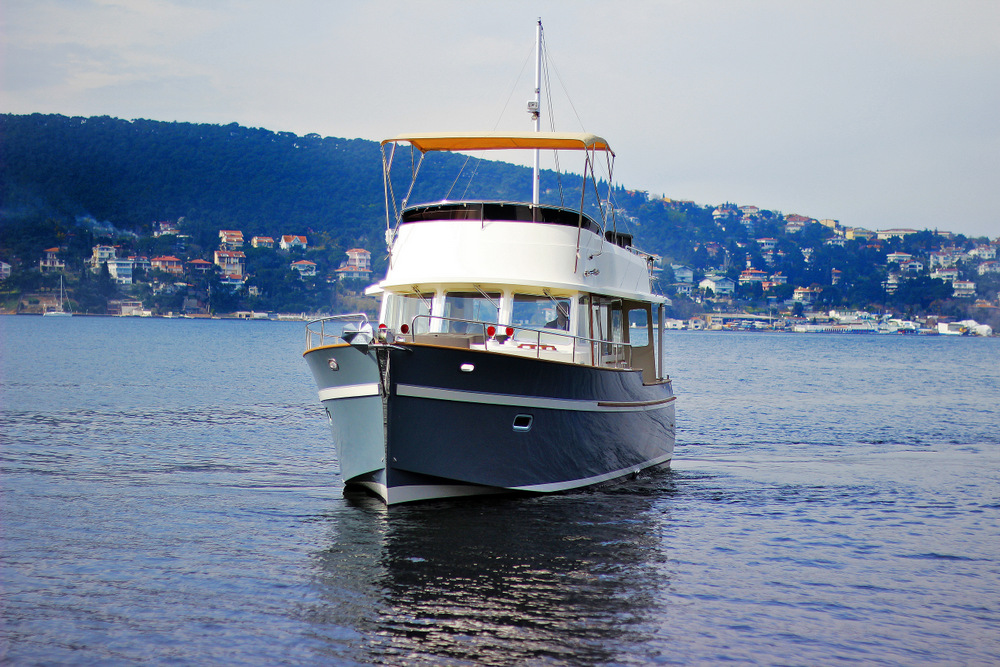

The Rhea 36 Trawler is the latest addition to the Rhéa Trawler range. With its elegant lines and classic sea excursion appearance, this boat offers all the necessary comforts for cruising. Modern in design, the Trawler 36 can ground safely thanks to the shape of its hull and the protected propeller and rudder. In addition, its carefully designed hull offers limited drag and a sharp clean entrance whilst the tunnel propellers optimise consumption.

My Venus, is a unique example with two double bed cabin designed version. This layout has been optimized with a sliding door for the guest cabin area.

INVENTORY
Rhea Trawler 36 ”VENUS 34’’

L.O.A : 11,30 m
Length of hull : 10,80 m
Beam : 4,10 m
Serial Number: Fr – RHE03006J313
Construction Year : 2013
Light displacement: 9 000 Kg
Loaded displacement: 12 000 Kg
Draft : 1,10 m
Fuel tank capacity: 900 Lt
Water tank capacity: 420 Lt
Engines: Twin-engined diesel YANMAR 6BY3-260 hp
Transmission: Propeller shaft
EC certification: B
Designer: Bertrand Danglade
Architects : Mortain – Mavrikios – Chabaud
Accommodation: 2 x double cabin version
Flag : Turkish / Ayvalık
Location Kalamış İstanbul Turkey

1. CONSTRUCTION
·Sandwich with isophitalic polyester resin and
·Balsa/PVC core.
·Grey Hull Color

2. HULL
·Teck on strip board
· International anti-fouling paint
·Bow Truster Side Power 100 kgf and remotes on
navigation panels
·Two side doors on hull.
·Two rudder protection monolithic keel – hull bottom
·Galvanized steel keel band for hull bottom & rudder
protection
·Bathing ladder attached on transom.

3. DECK & COCKPIT

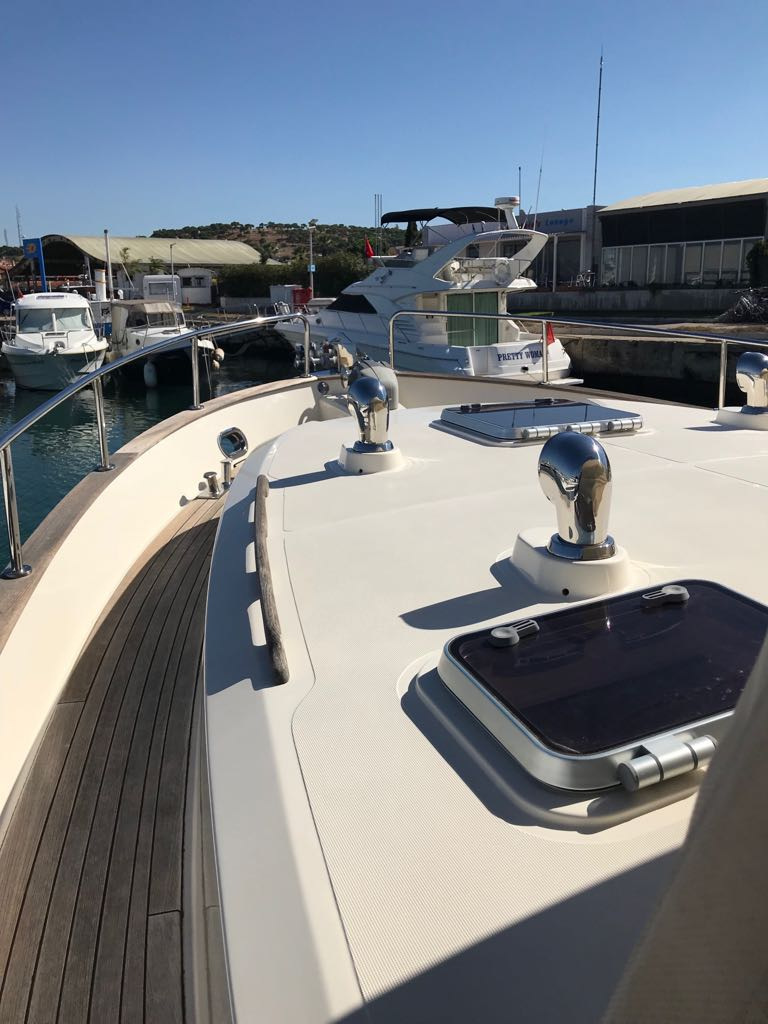

·Teak deck
·All external wood in Teck

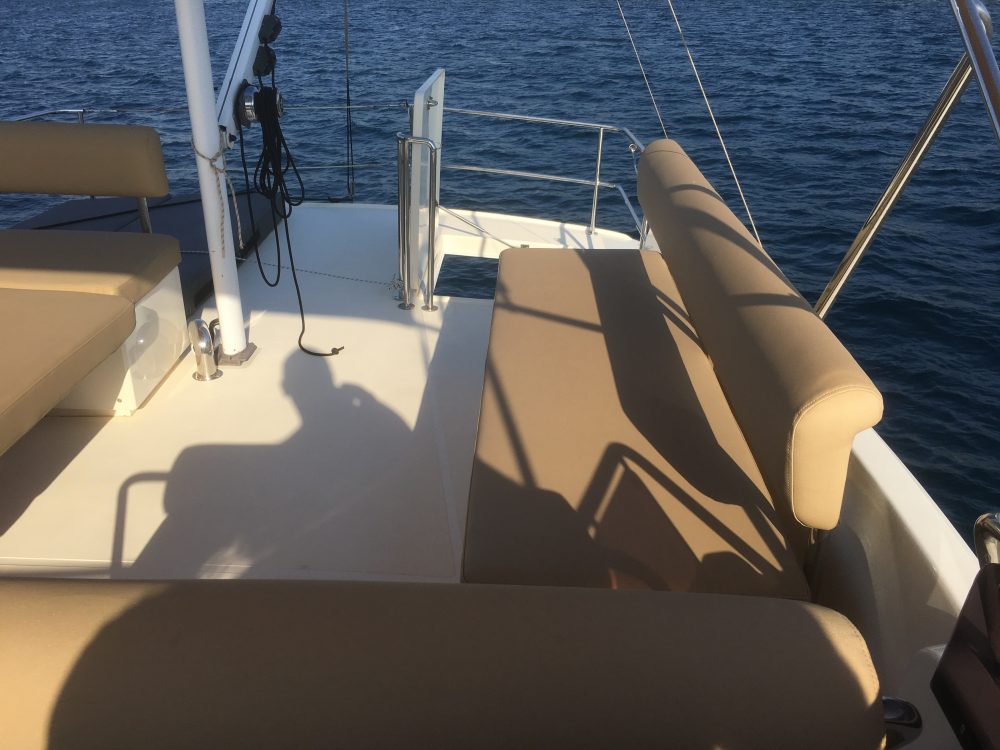

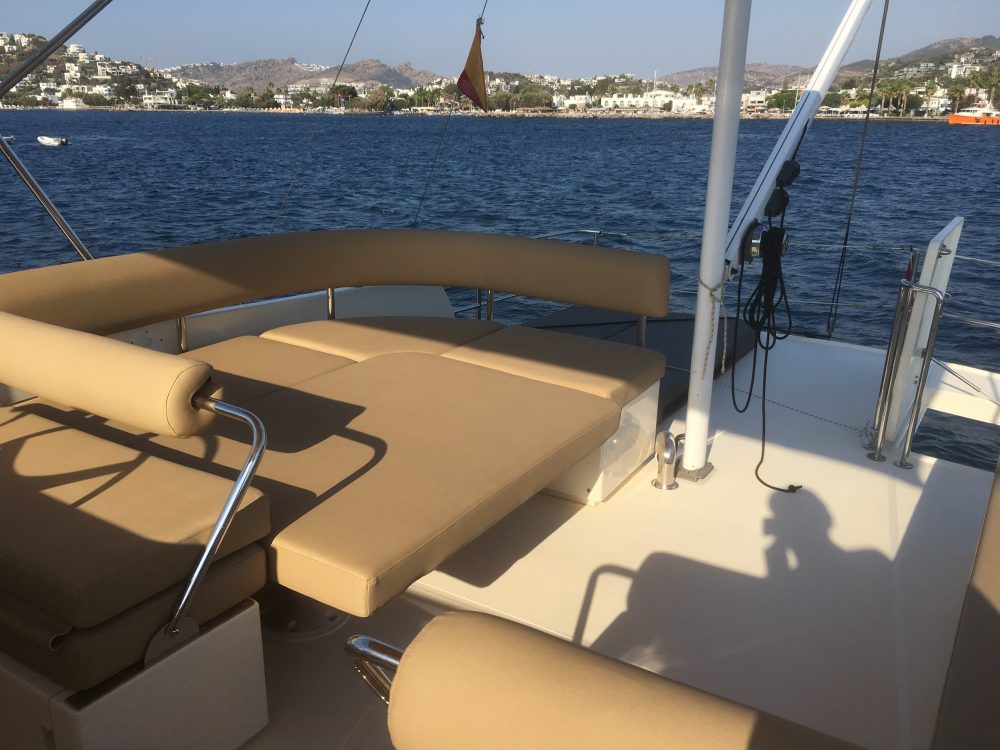

·Sun cushions main deck

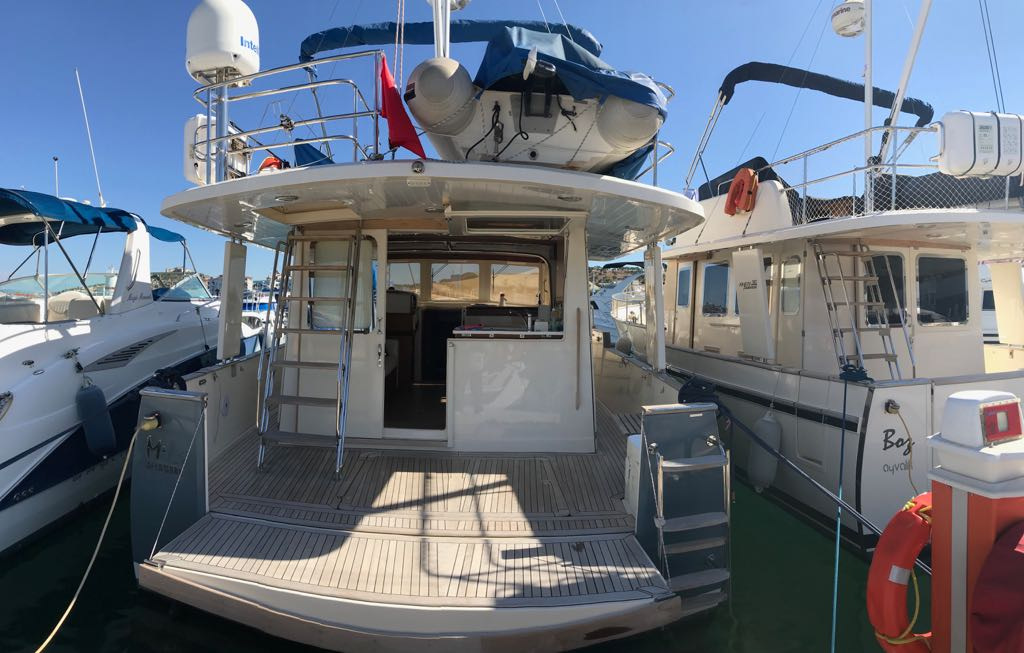

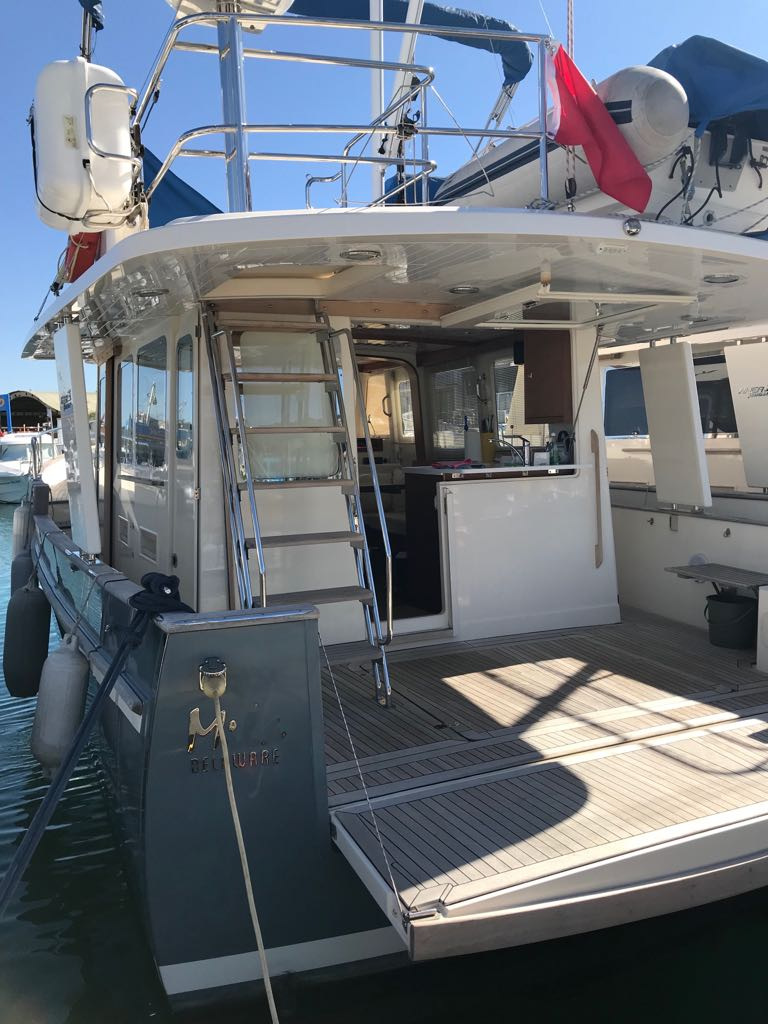

·Opening stern / beach platform and remote control
system
·Starboard folding Teck seat, stainless steel support.
·Aft flexible shower with hot & cold water.
·Alleyway doors to protect cockpit from wind and spray
·LED light on steps
·Two waterproof loudspeakers on cockpit.
· Salt water deck wash pump.

4. FLY BRIDGE

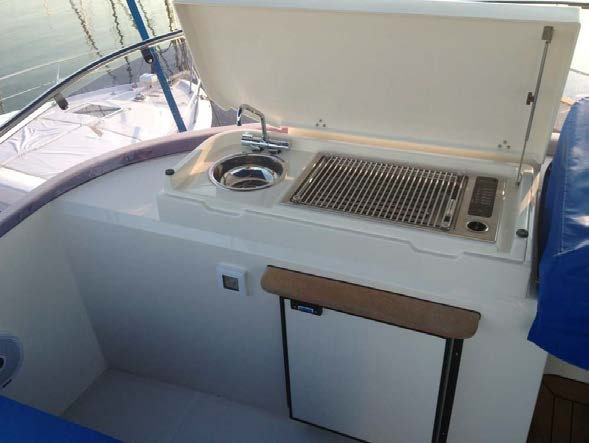

·Kichen on Fly ( refrigerator 40L – h c water tap – sink)
·Grill on Fly
·Fixed table.
·Stainless Steel ladder with teck steps.

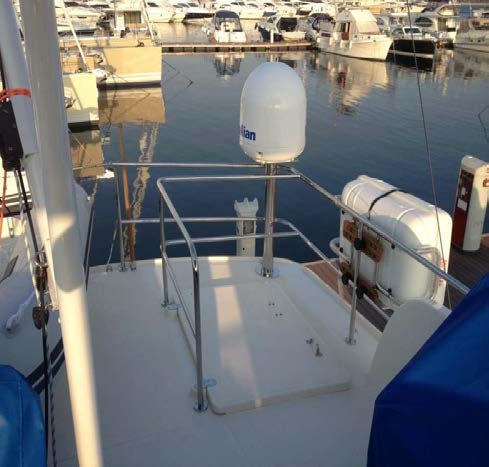

·Quarterdeck for storing dinghy and life raft / Sun deck.
·Electric winch for dingy on Fly

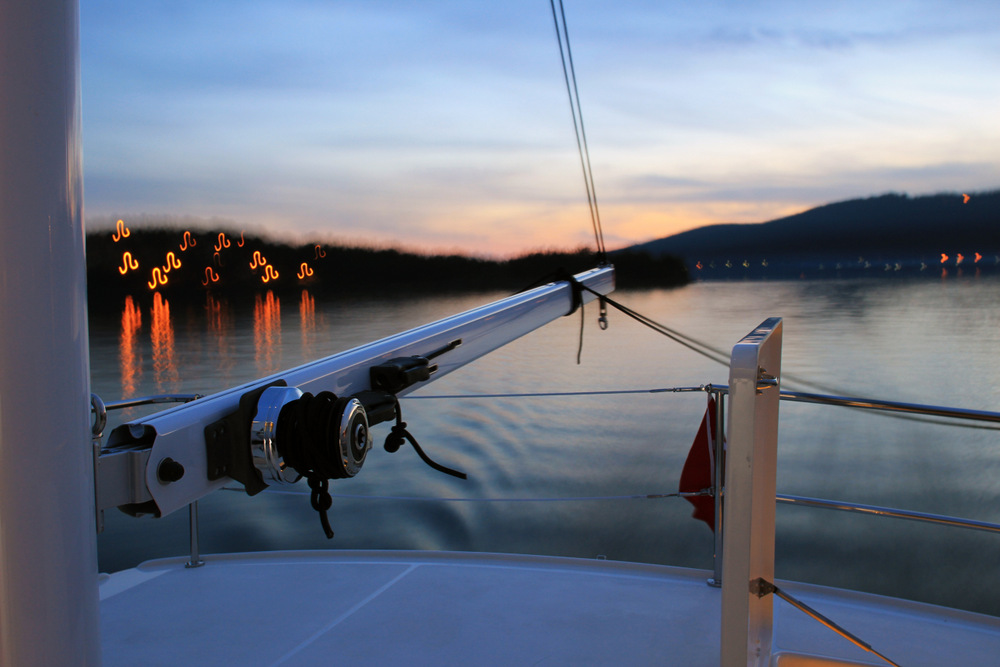

·Folding mast and boom – sailboat type aluminium
·Two waterproof loudspeakers.

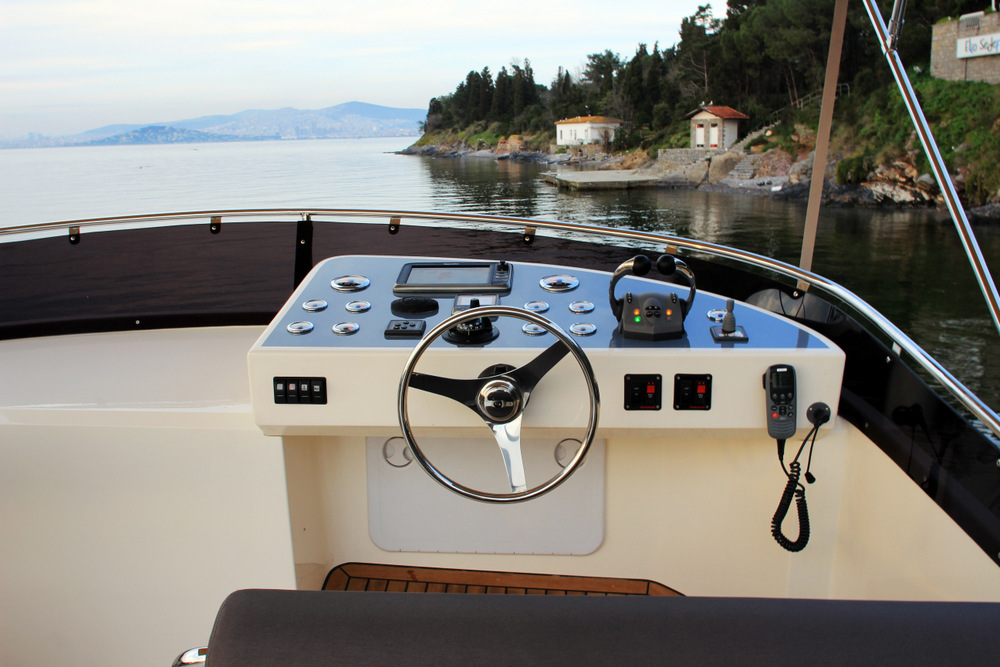

· Instrument panel on starboard, Grey
·Stainless Steel wheel; compass; engines controls, fuel gauge.
·Switches for instrument panel,horn, and deck light.
·Remote for Windlass on wheelhouse & Flybrige
·Remote control for bowthruster on Flybrige
·Raymarine C95 9″ CHARTPLOTTER GPS REPEATER
·Oto pilot package
·RAY 55 VHF
·RADAR – Raymarine RD 418 D
·12V socket.
·Satellite system Intellian 45cm
·Tridata Wind Monitor

5. MACHINERY
·ENGINES:
Twin-engined diesel 2 x 260 hp YANMAR 6 BY3 (330 hrs)
Starboard Engine: S/N 1812023
Port Engine : S/N 1794023
·GENERATOR:
Generator Fischer Panda 8 Kva inside cocoon (47 hrs)
Dedicated Battery

6. ELECTRICAL EQUIPMENT
·Electrical panel 12V/220V
·Manual battery switches for service and engine batteries. Remote
switch for forward battery.
·220V shore supply with 20m extension lead.
·220V socket in galley.
·Battery charger 12 Volt 30 Ah. Victron
·Inverter 1200 VA / 50 Amp Vivtron
·12V sockets in fly bridge and wheelhouse.
·5 Gel Batteries (4 x 105 Ah for engines and service,
1 x120 Ah for bow thruster and windlass)
· Electric Quick windlass 1000 W.
· Navigation and mooring lights in stainless steel.
·Automatic electric bilge pumps
·Electric water heater
Air Conditioning
• Air conditioning Webasto reversible system (Saloon
16000 +Cabins 12000 Btu)

7. ACCOMMODATION

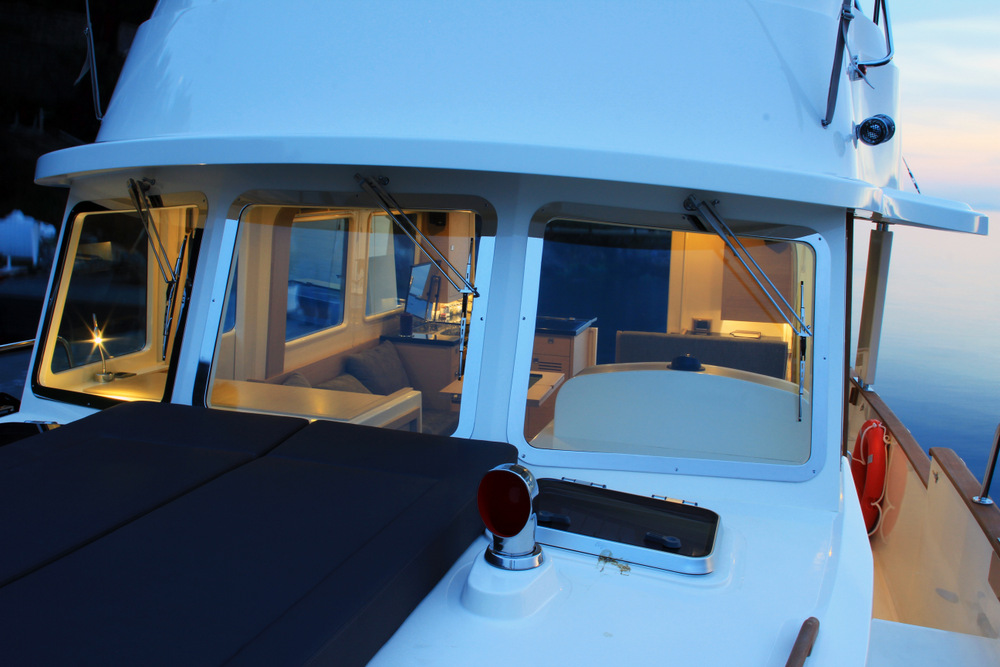

WHEEL HOUSE
·Wheelhouse floor: Wood parquet
·Copilot seat two persons to starboard. This seat in high position, switch
to the complementary seat of the square. Teck footrest.
·Stainless steel steering wheel and wood varnish. Ø 50.
·Radio-CD / MP3 with I-pod socket. (under the captain’ s
·Fusion sound system 700 series, speakers
·Fusion Subwoofer under pilot seat
·Wheelhouse 24′ flatscreen TV-DVD up and down system at chart table
seat)
·Woodwork magohany
·Custom wooden made Chart table
·Sliding bench on wheelhouse (starboard)
·Steering console, space for navigation electronics and engine
instruments.
·Displays fuel & water gauges, engine control levers, thruster’s controls,
steering compass.

OWNER’S CABIN
·Central bed (1.60×1.95m), and mattress.
·LG TV system
·Curtains & mosquito nets Oceanair

BATHROOM
·Electric toilet
·Teck seat in shower.

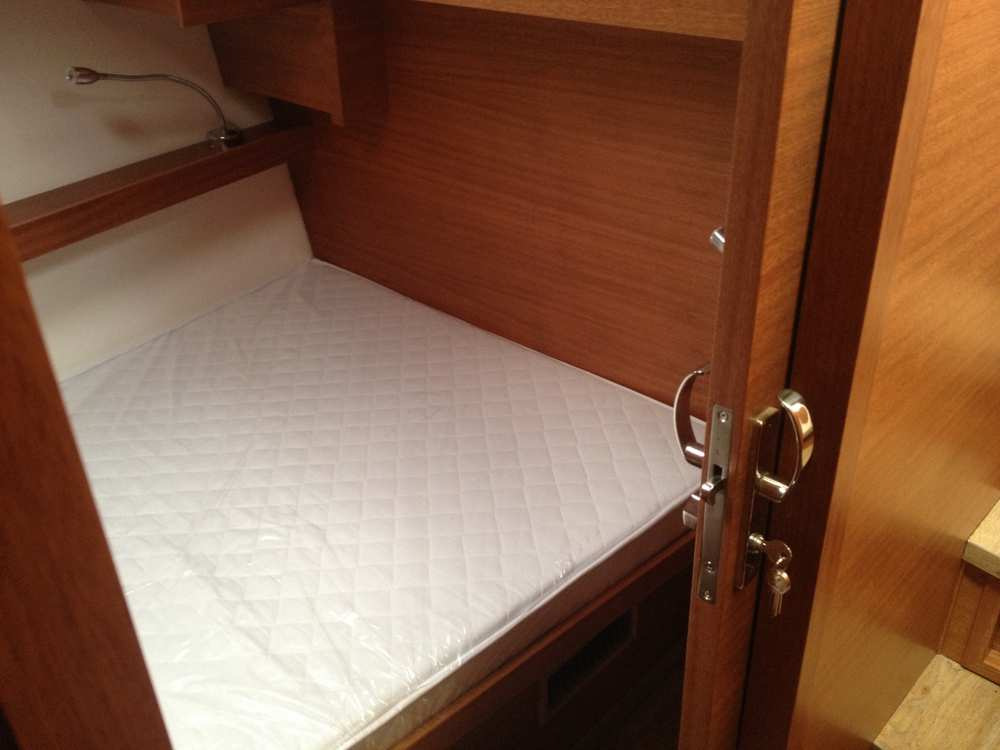

GUEST CABIN
·Double bed version
·Sliding guest cabin door
·Cabin floors: Wood parquet
·Cabin hull surfaces leathered.

GALLEY
·Resin worktop with stainless steel double sink, washing
and drainer.
·Gas Oven and stove Smeg
·Dish washer 230 V

8. COMMUNICATIONS, NAVIGATION & ENTERTAINMENT EQUIPMENT
Navigation Instruments
·Wind Tridata Receiver
·RADAR – Raymarine RD 418 D
·Satellite system Intellian 45cm

Wheelhouse
·Raymarine E127 12″ MULTIFONCTIONAL
CHARTPLOTTER GPS REPEATER (FISHFINDER)
·Autopilot package P70R
·VHF Ray 55e Raymarine
·Preloaded navigation maps for Europe

Flybrige
·Raymarine C95 9″ CHARTPLOTTER GPS REPEATER
·Oto pilot package
·RAY 55 VHF

10. Storage ROOM
Washing Machine
Isotherme 130 lt Freezer
Generator Panda Fisher
Grey Water tank, electrical pump.

11. ENGINE ROOM & SERVICES
·Stainless steel diesel oil tank (900 L), safety valves on the DO
departures.
·Propeller 4 blades
·Stainless steel shaft.
·Two automatic bilge pumps.
·HDPE water tank 420 L.
·Hot water tank 40 L (engine exchanger and 220V)
·Holding tank with gravity of 50 L, anti-odor filter
·Trim Tabs and controllers on navigation panel

11. TENDER
·Plastimo RIB with 6 hp engine

12. MOORING & ANCHORING
·Bow fitting with twin roller in stainless steel.
·Electric windlass, Quick 1000 W with foot control
buttons.
·Anchor in stainless steel, Brand: ULTRA, 21 kg
