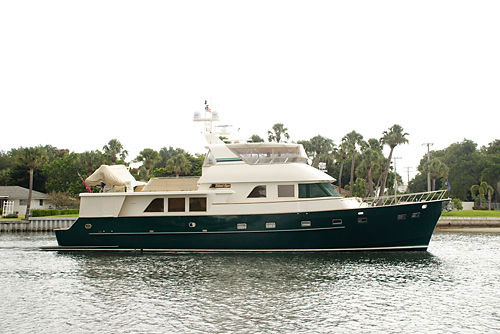

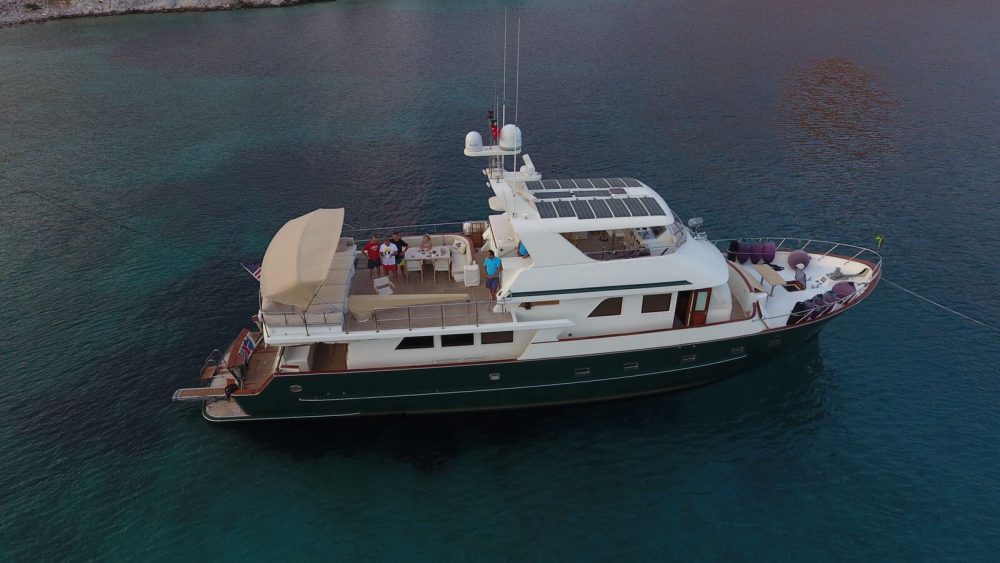

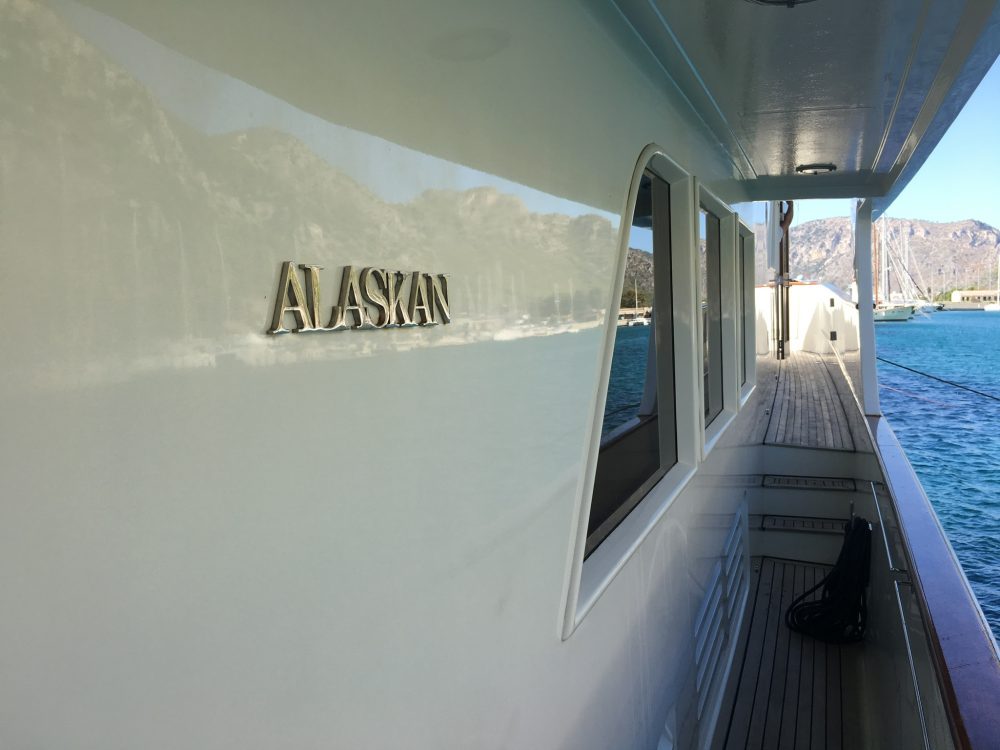

‘’Zuzu’’ is a Grand Alaskan 78’ long range Atlantic capable motor cruiser a traditionally styled raised pilothouse yacht with luxury accommodations and teak interior in excellent condition.

Having been specified by the owner for his use as a family cruising yacht and professionally maintained with crew. The yacht was customized to accommodate a 4 cabin layout, with 4 private head/showers.  1 Master, 1 vip,1 guest cabin and 1 cabin with superposed bed. The Fly bridge area offers different spaces as aft area for dinghy convertible into huge sitting area with cushions. İnterior layout, Fly bridge area, with all equipments, ‘’Zuzu’’ offers total comfort and security on board as a long range cruising palace.

My ‘’Zuzu’’

Designer Oviatt Marine

Builder Grand Alaskan

Build year 2000

LOA 23.40m – 75‘’70’ft

Beam 19′ / 5.97 m

Draft 4’11’’ / 1.43 m

Displacement 63,000 Kg

Flybridge Yes

Hull Material

Laminated fiberglass reinforced wtth pvc rigid foam core in all hull & deck areas above the waterline and-solid hand lay-up below the waterline; vinylester barrier hull laminated for osmosis protection; double laminations @ chine, keel & running hardware locations: unidirectional & bidirectional laminates

Max Speed 18 Knots

Cruise Speed 15 Knots

Machinery

Engine Make Caterpillar

Engine Twin Caterpillar 3406e 800 HP Engines

Fuel Type Diesel

Horsepower 2 x 800 HP

Engine Hours 3500 Hours

• Drive System – transmission Shafts
• Aquadrive Systems
• Fuel Capacity / Tanks 2,400 US gallons (9000 Litres) Total fuel capacity
• Fuel Consumption 60 lt per hour twin engine @ 1,550 Rpm

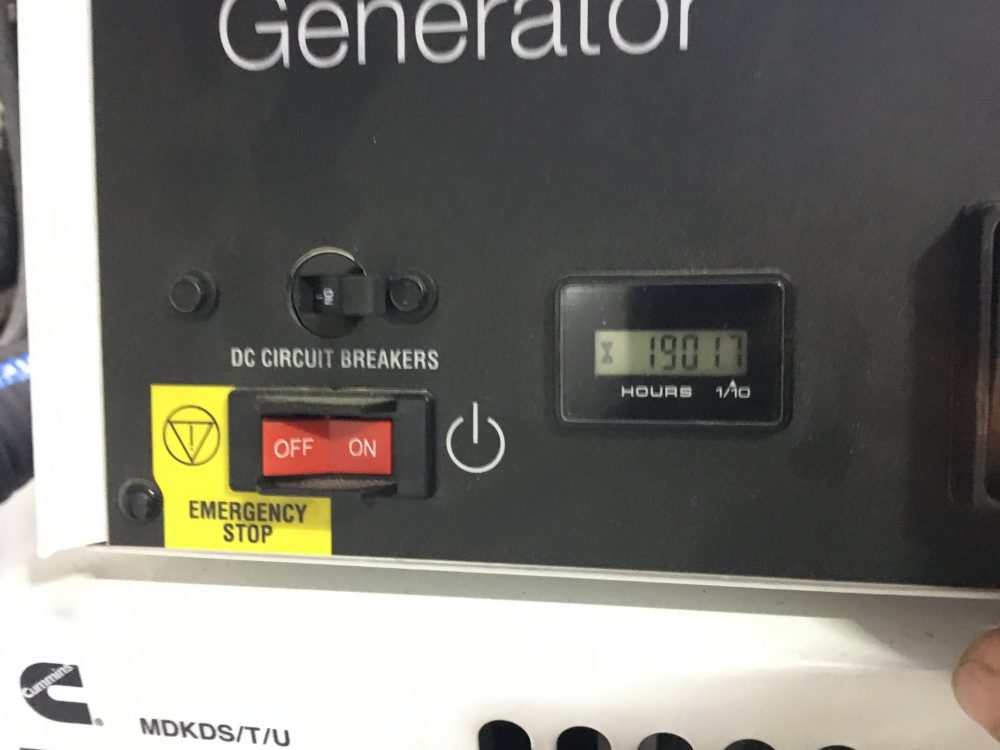

• Genset

1x Northern Lights generator – 32kW

1x Onan 22,5 kW

• Watermaker FCI, 250lt /hour
• Compressor Bauer dive compressor mounted in lazarette
• Hydraulic Bow and stern Thruster – American Bow trusters
• Hydraulic Stabilizers – TRAC
• Electrotab trim tabs and controllers

Accommodation

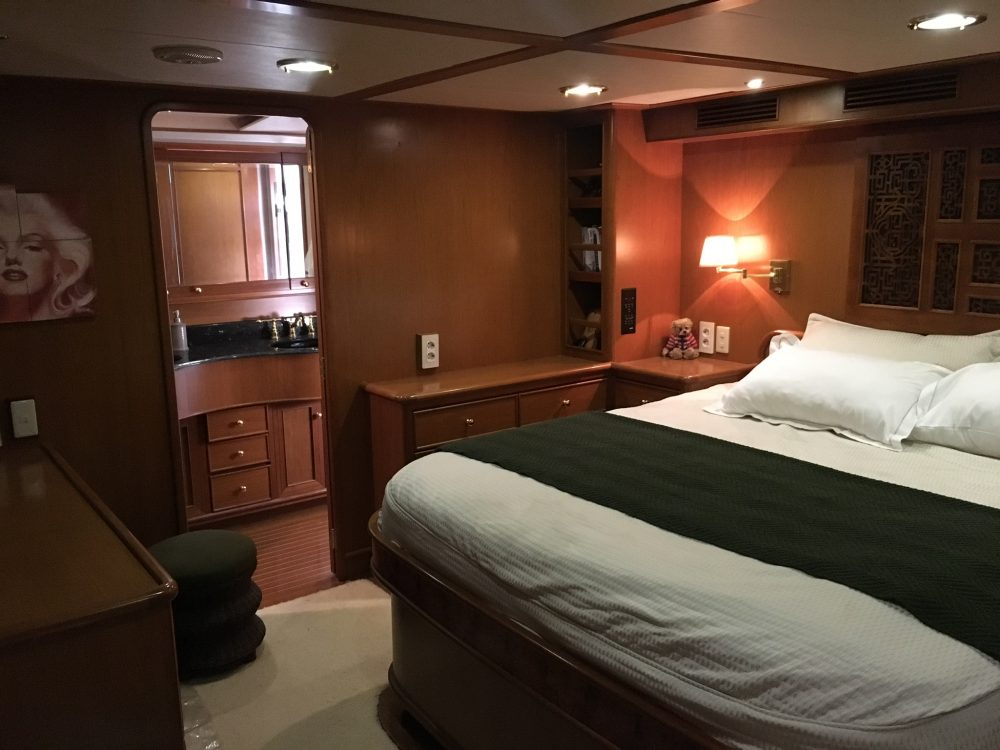

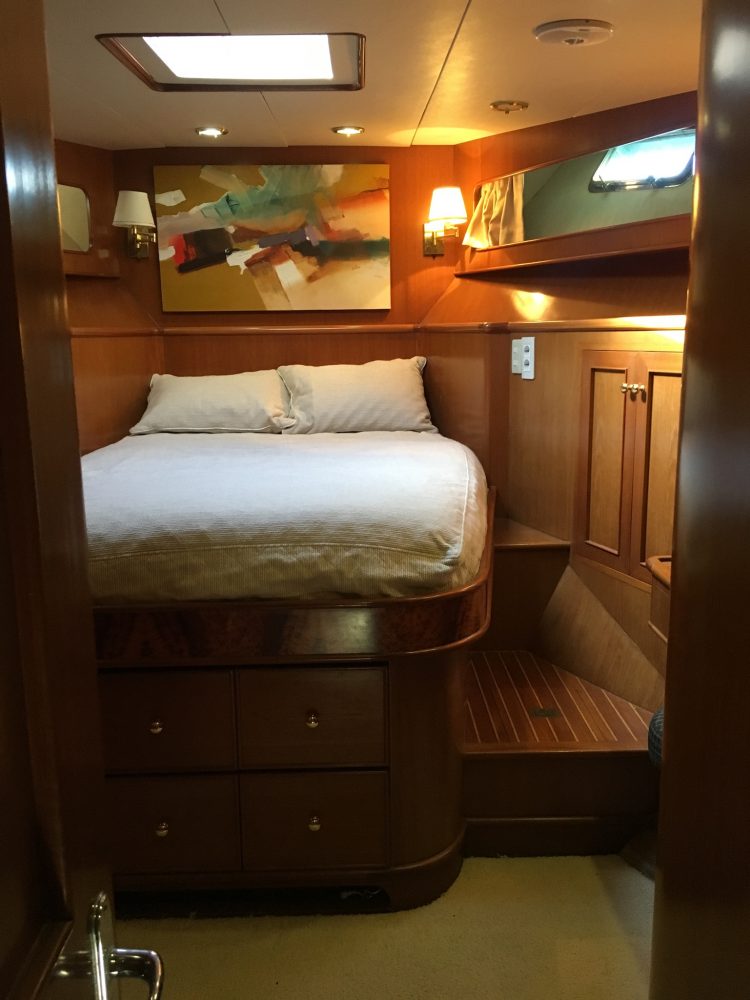

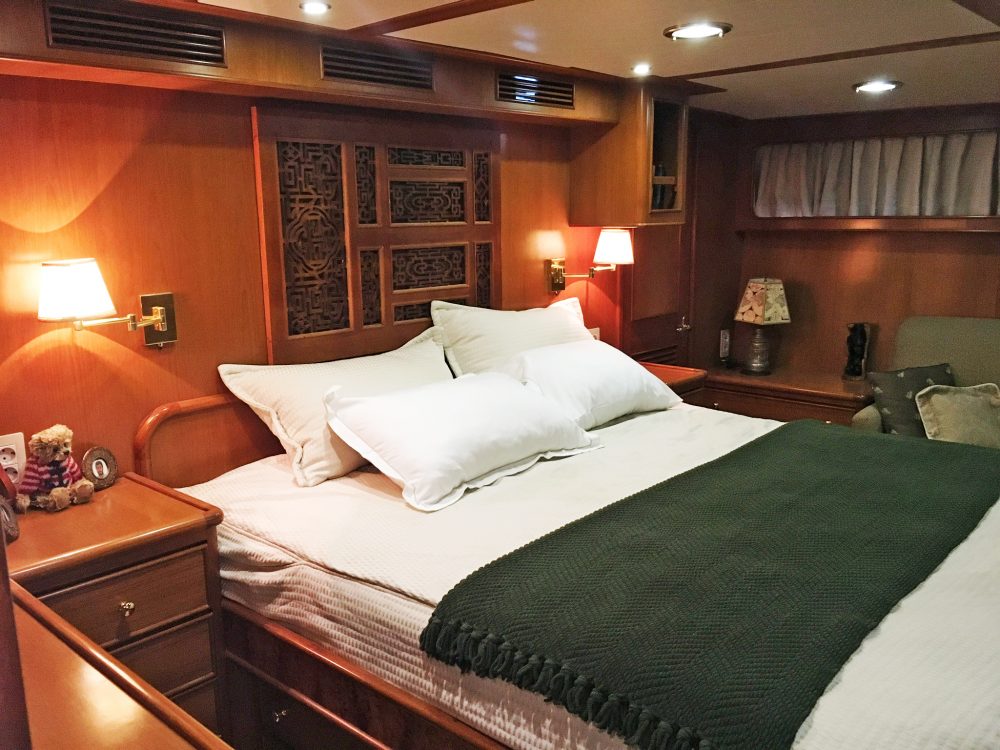

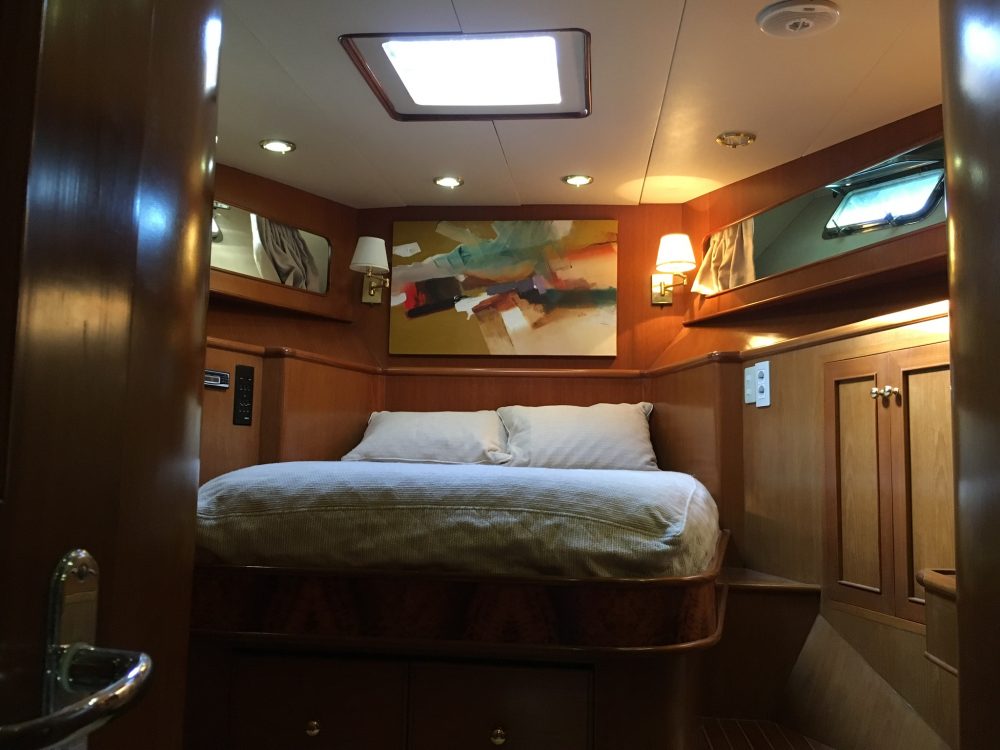

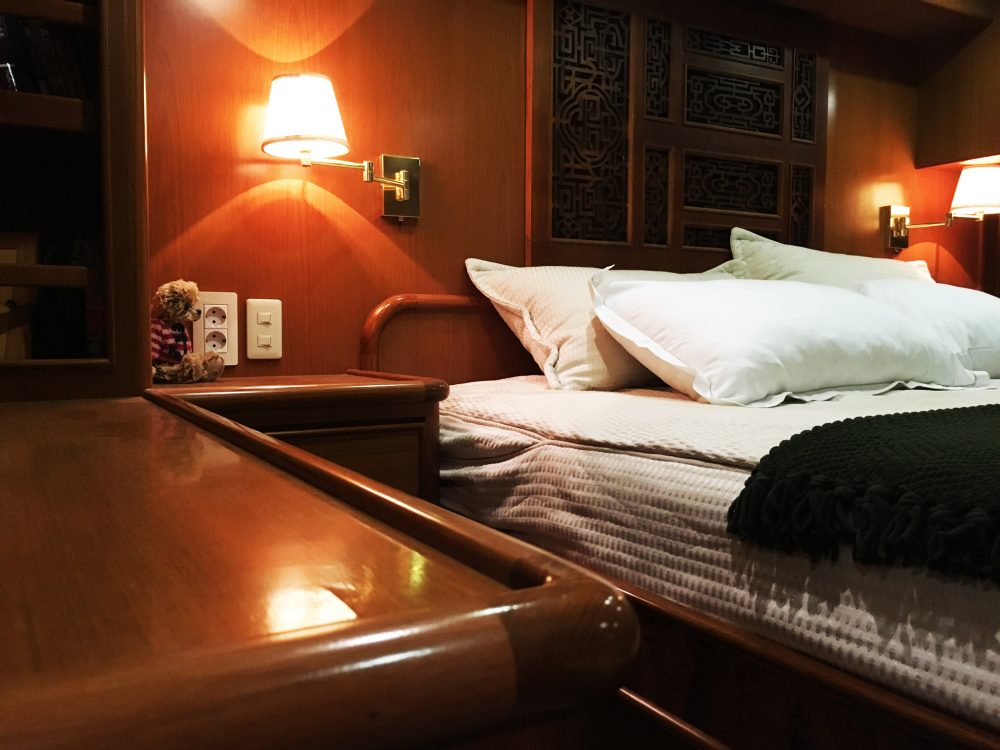

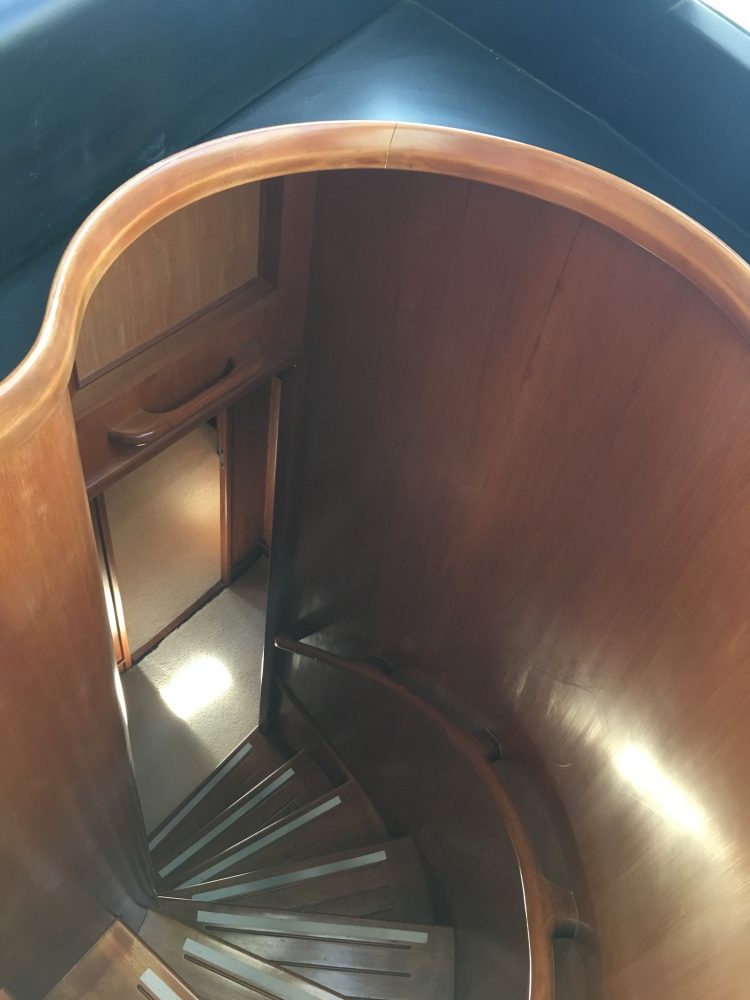

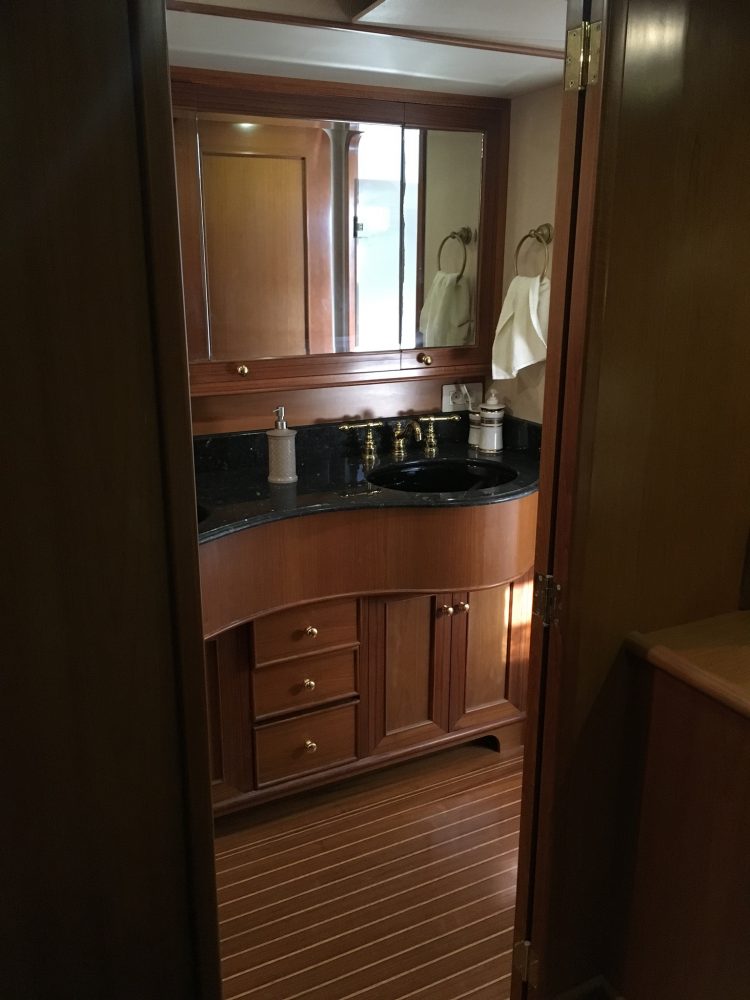

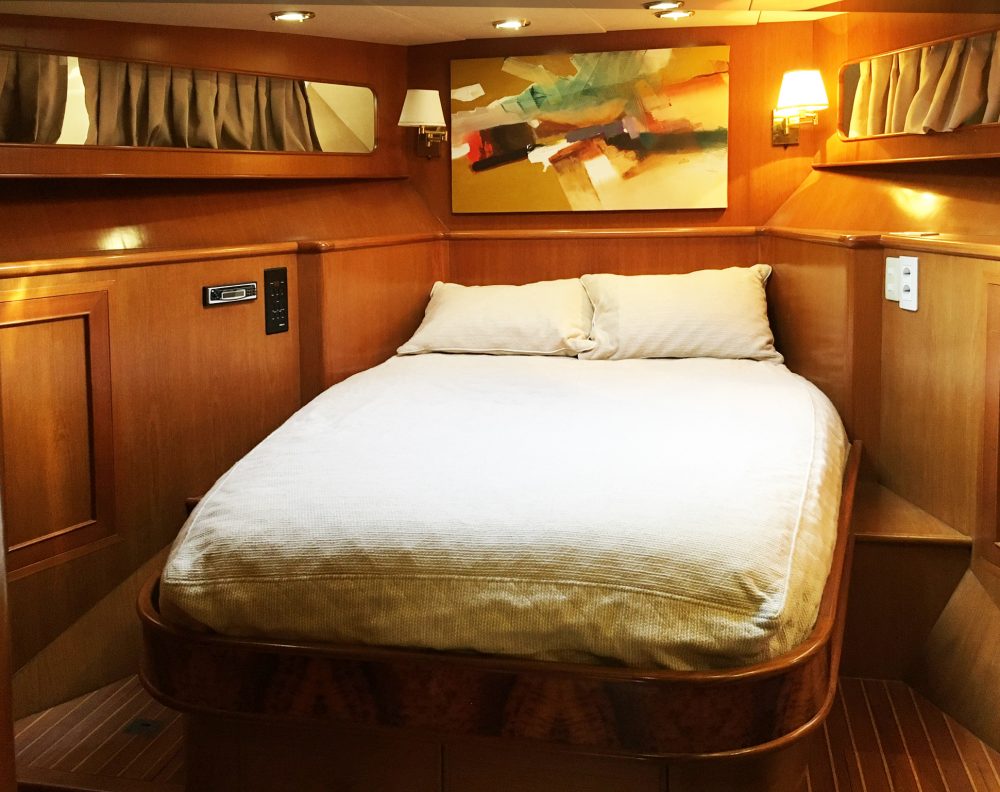

Cabins Interior is teak throughout, decorated in classic style, with teak and holly floors in some areas and beige carpeting in salon and master suite. Custom interior layout is designed to allow privacy in the owner’s suite which is accessed from the main salon aft with a staircase. There is also a passage through owner’s wardrobe from guest staterooms. Guest staterooms are accessed from forward in pilothouse to starboard down staircase to central landing. VIP queen V-berth cabin with ensuite head/shower, plus two large double cabins with over/under accommodations and ensuite head/shower in each. The Owner’s Suite is full beam with king size berth, vanity bureau, large wardrobe and double sinks in head with separate shower. Each cabin has A/C control.Crew quarters for 2 crew are aft of engineroom with 2 single berths, washer, dryer, full head and shower. Access is through aft cockpit door or engineroom. Separate forced air A/C system in Crew area.

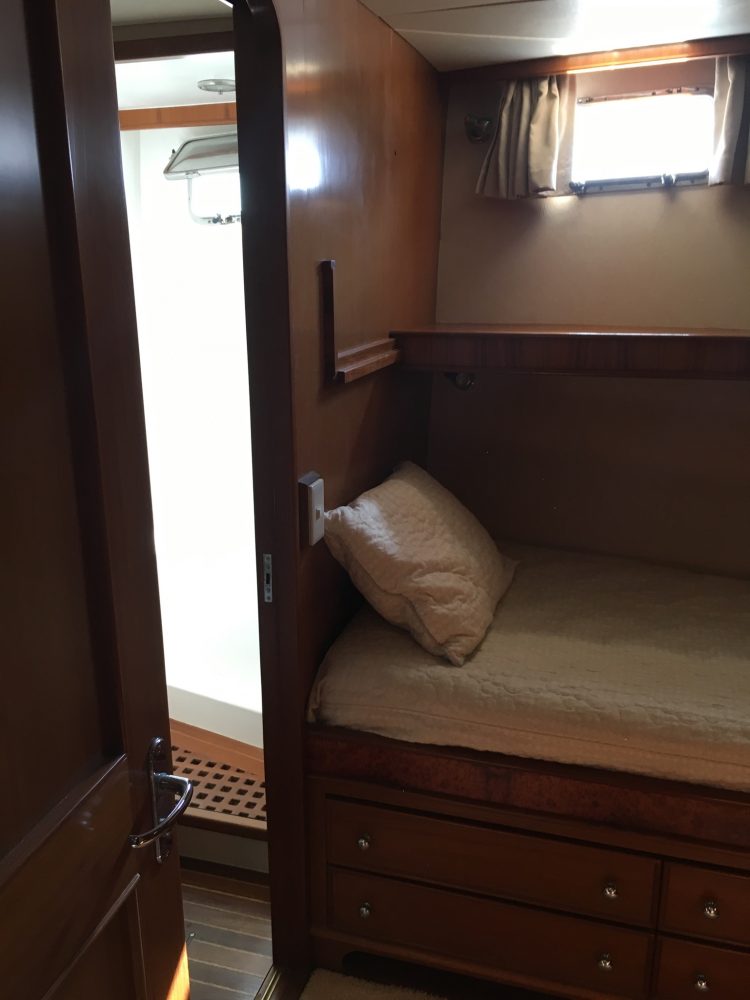

Cabins 4 (1 Master, 1 Vıp, 1 Guest , 1 Superposed bed) + Crew Cabin

Total Berths 10

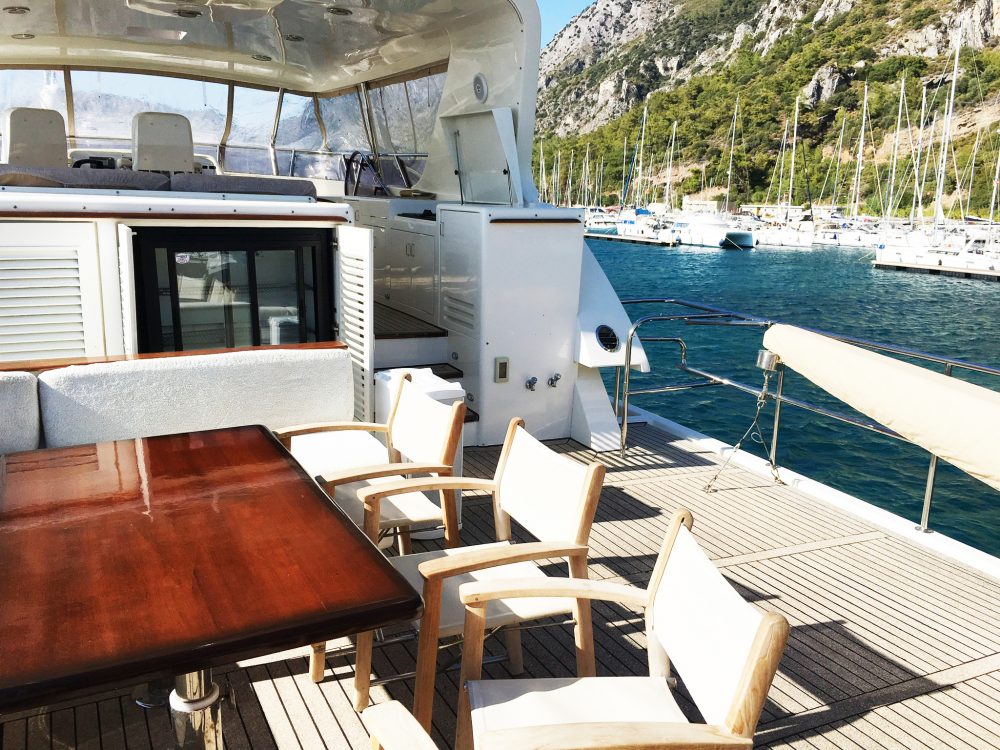

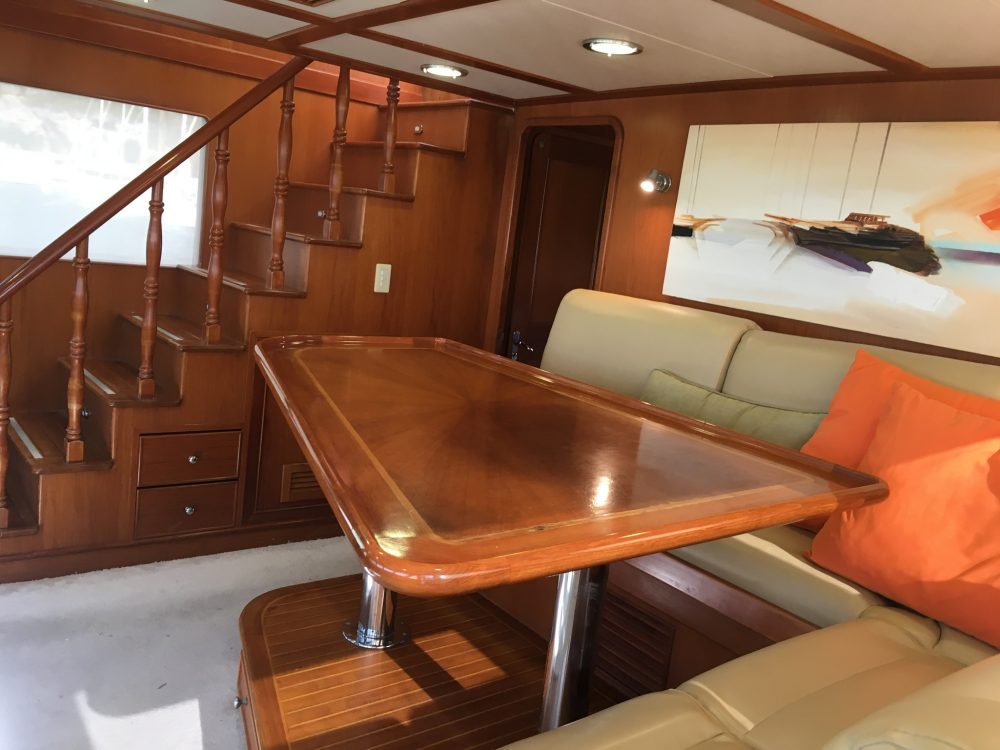

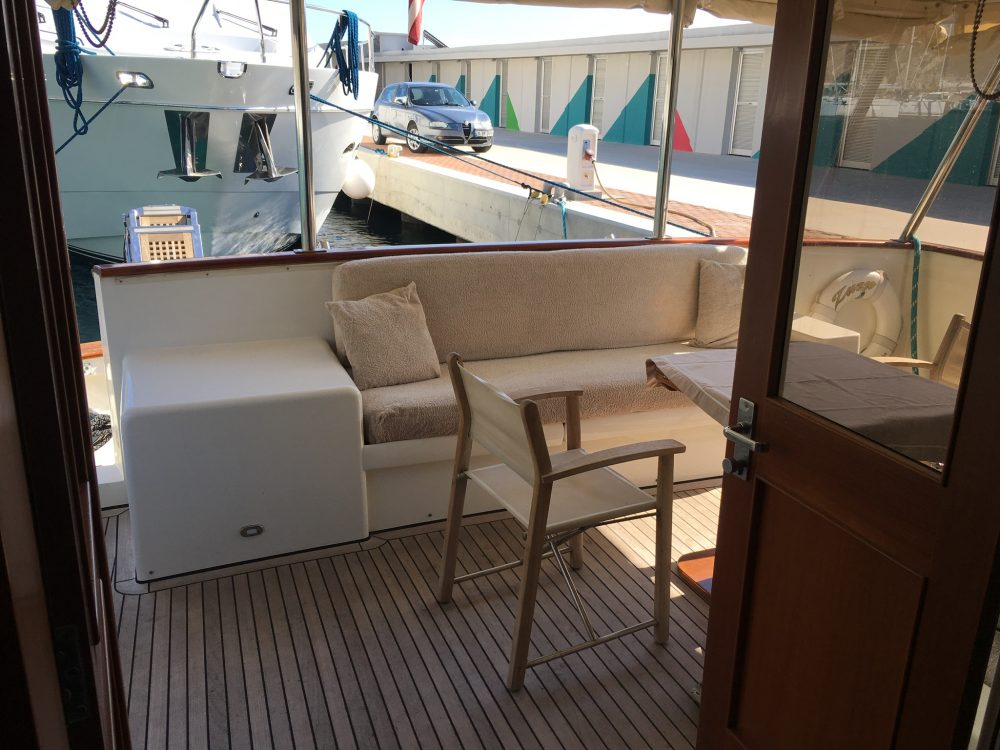

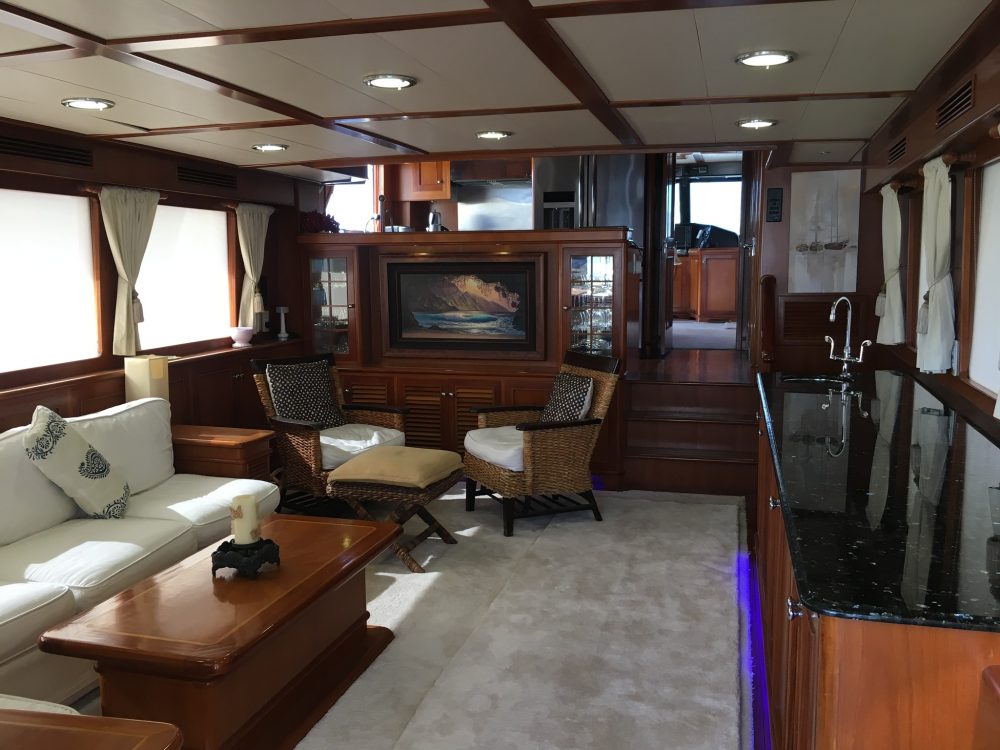

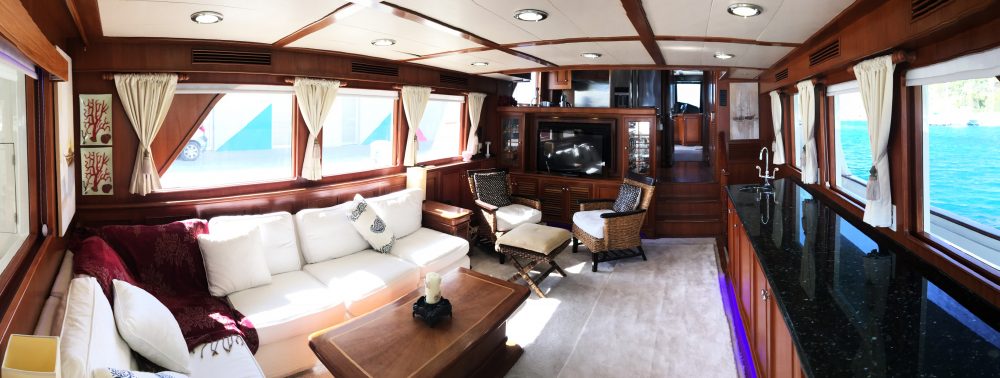

Saloon The salon opens aft to a spacious covered aft deck dining area and steps down to the aft cockpit. There is access from the aft cockpit through a watertight door into the crew accommodations and engine room, as well as through an opening door aft to a 3’ molded bathing platform. The main Salon includes all teak furniture with an L- shaped sofa, recliner chair and 42” Plasma TV visible in either static low position or elevated.

H/C Yes

Toilet –  6 x Headhunter Royal Flush

Holding Tank Capacity : 264 US Gallons / 1000 lt

Galley

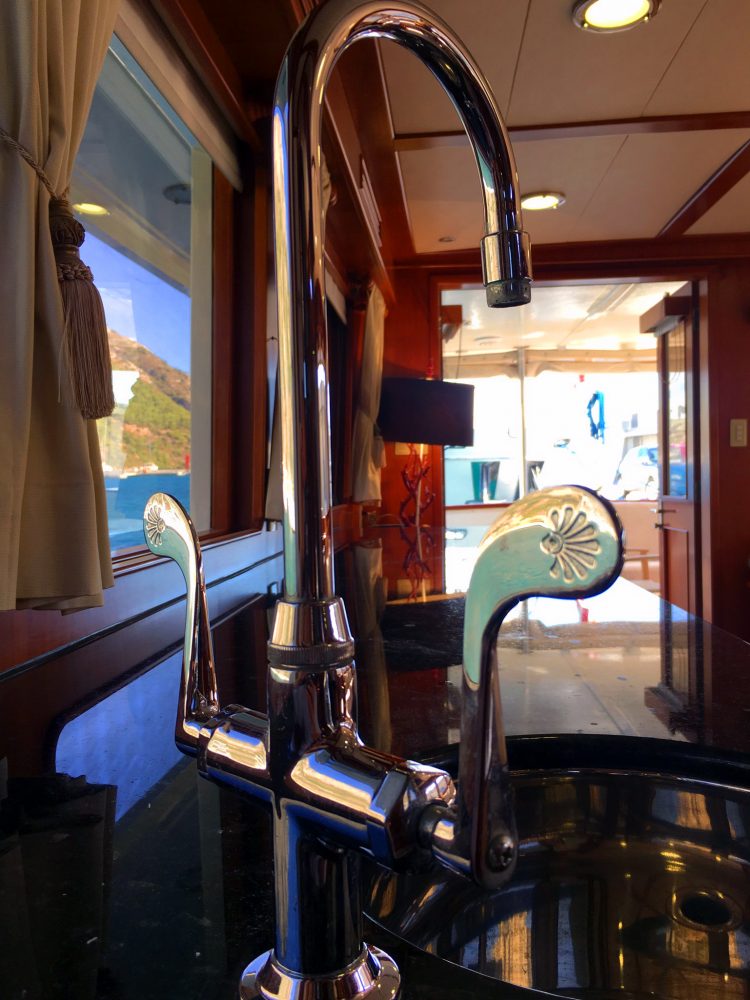

Layout The Galley is forward of the Main Salon and a few steps up on the pilothouse level, equipped with all GE Profile appliances. A day head is forward of the galley.

• Microwave Yes
• Hot Water System Yes
• Water Capacity / Tanks 800 US Gallons (3000 Litres)

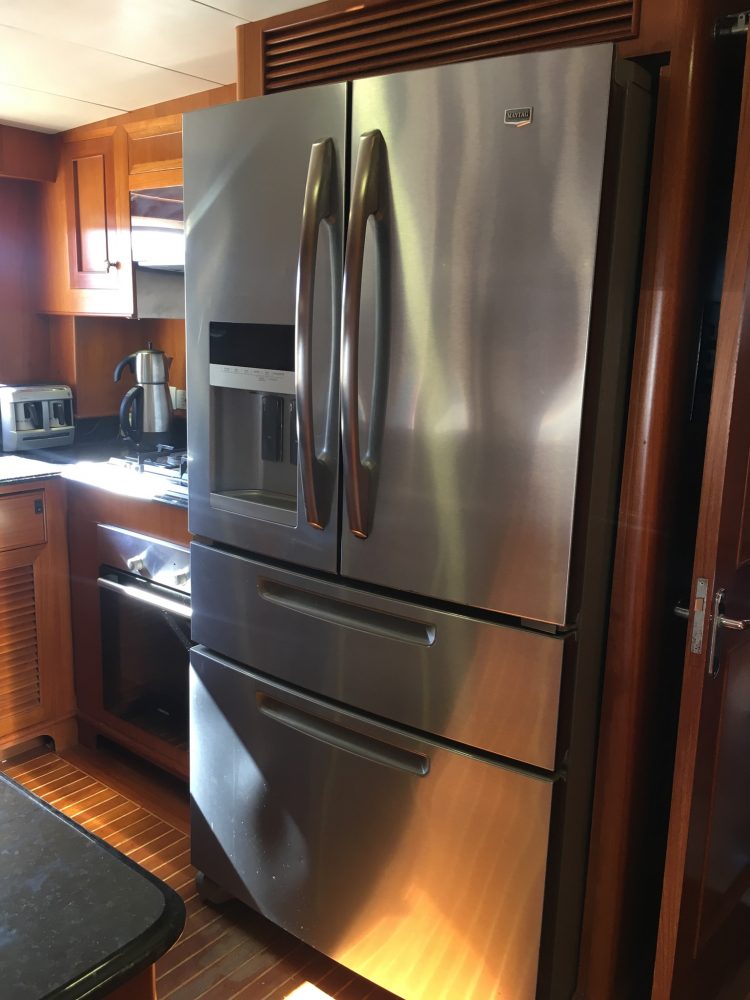

• GE Profile fridge/freezer – Maybay
• GE Profile s/s oven
• GE Profile s/s microwave Siemens
• GE Profile s/s dishwasher Siemens
• GE Profile s/s trash compactor
• GE Wine Cooler in pilothouse
• Expresso Coffee Maker
• s/s garbage disposal

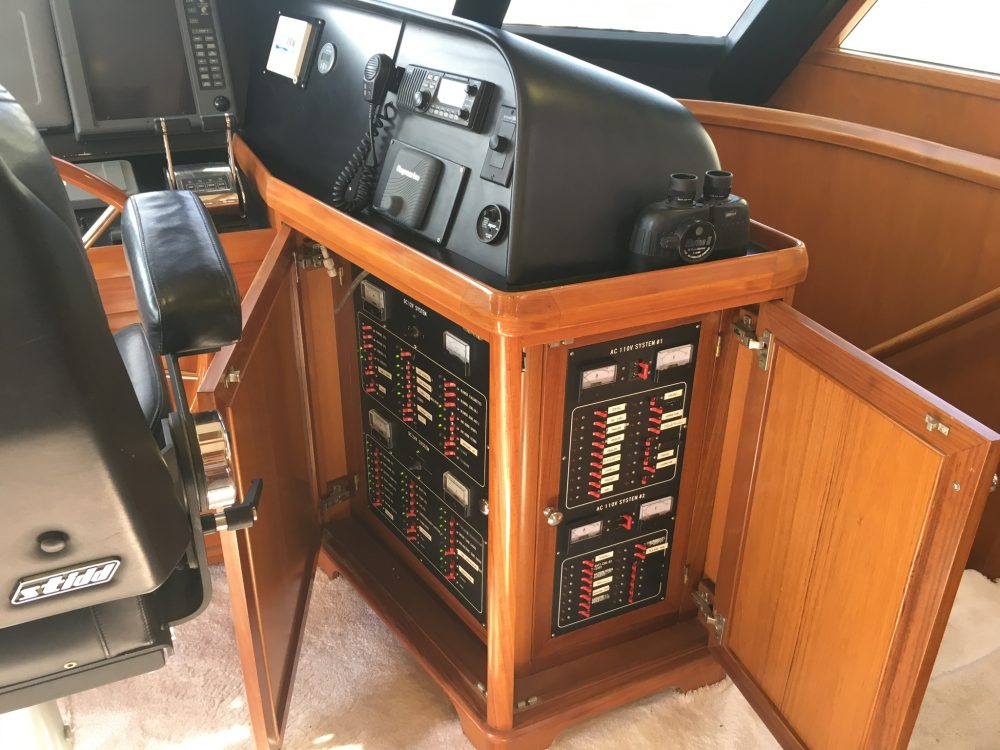

Electrical

• Lighting System 220v AC / 12/24vDC
• Shore Power Shorepower Is 2x 50amp
• Victron 200 Amp Quatro Charger / Inverter
• 16 x Solar Panel MPPT 75/50 Victron Blue Solar Charger
• Batteries are Gel Cel / AGM,
• 6 x 210 Amp Service
• 4 x 210 Amp
• 2 x 12v Service
• Air Conditionning – Marincold chilled water system with compressors,– separate unit for a crew area

Electronics & Instrumentation

• Furuno Radar x 2
• Raymarine autopilot E140
• Raymarine autopilot
• CAT digital controls
• Hedworth windshield wipers
• Network compass system

Entertainment

• 42″ Plasma screen TV in salon (retractable)
• Televisions/ DVD players in all cabins
• Fusion and Bose sound system
• Stereo CD in all cabins
• Satellite TV receiver KVH M7

Safety Equipment

• Spotlight Yes
• CO2 detectors throughout
• Hand held extinguishers
• 8-man life raft
• life raft , EPIRB, enclosed
• life jackets

Deck Hardware / Fittings

• Anchor Winch Maxwell 4500 windlass PTO from port CAT
• Anchor 100 Kg anchor, 90 lb. anchor
• Galvanised chain
• Hydraulic davit, portside top aft deck
• BBQ grill
• Cockpit Shower/ Deck Wash
• Hydraulic gang way

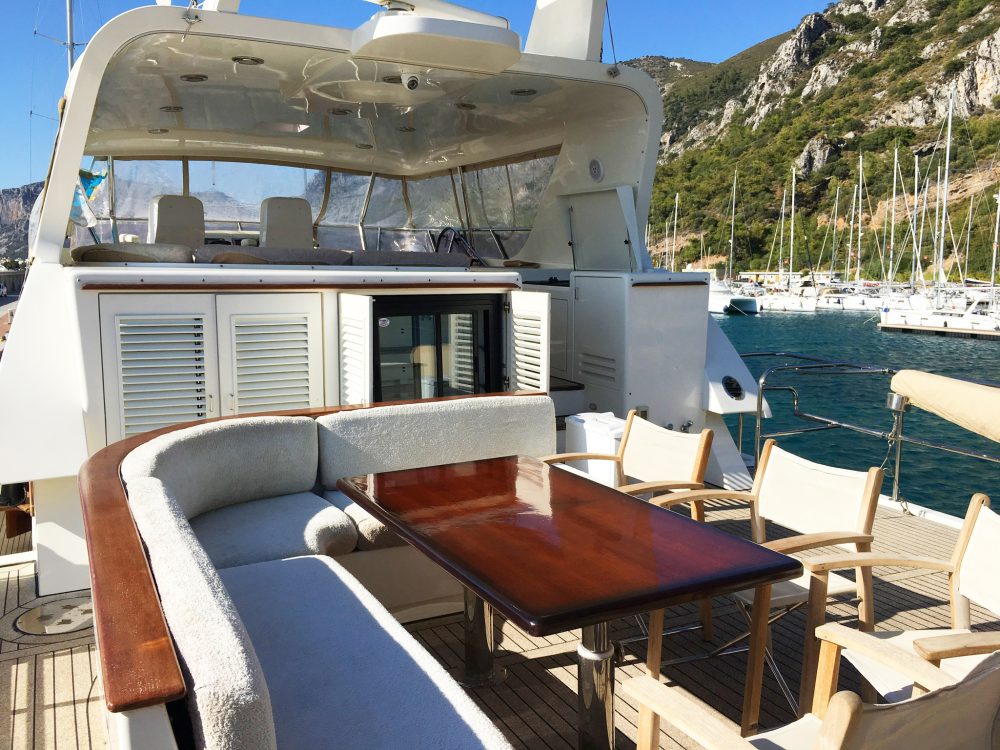

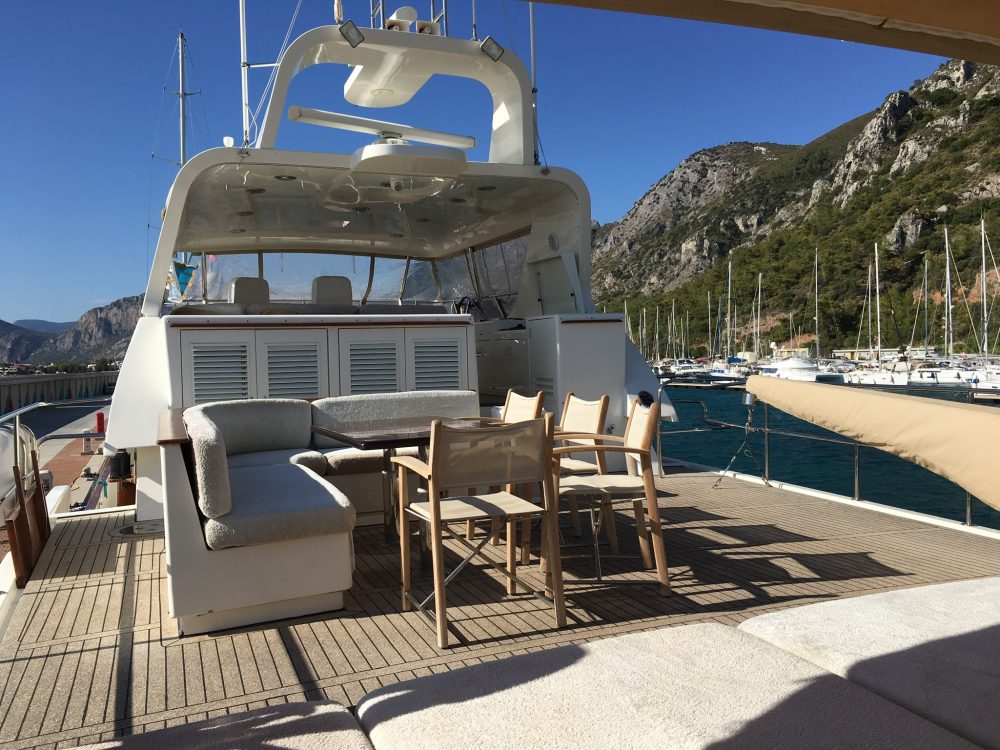

Flybridge

• Aft convertible sitting area
• Davit 500kg
• Sitting area
• Grill, sink, Wine cooler, fridge
• Fusion Sound System Bose speakers

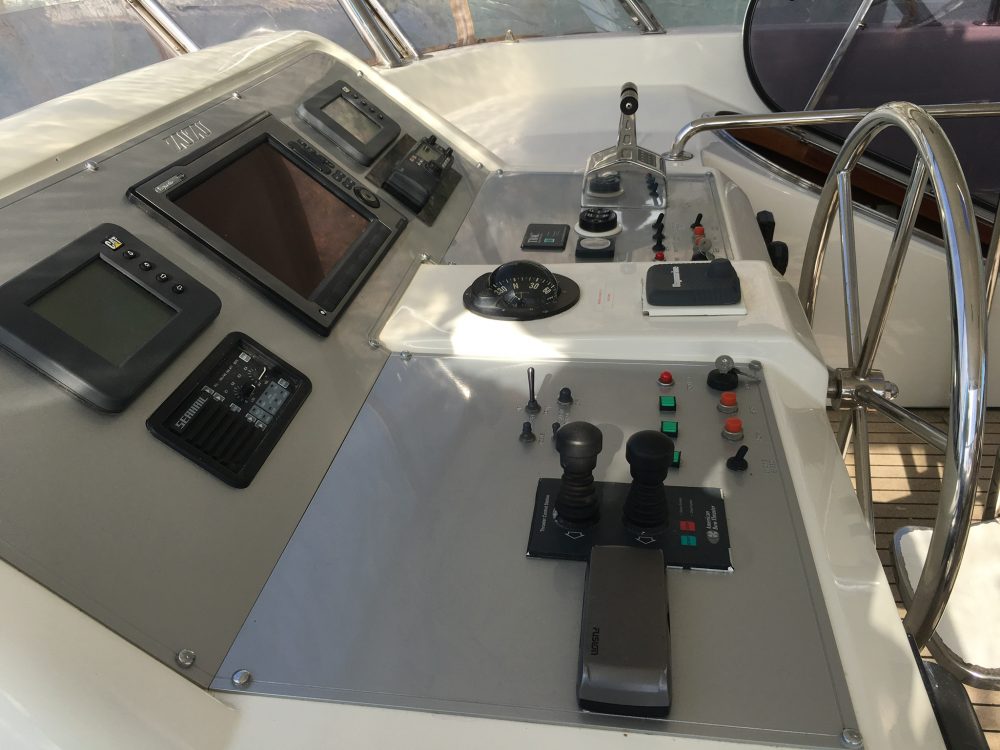

• All navigation intruments, repeaters
• Stidd chairs

Accessories / Additional Equipment

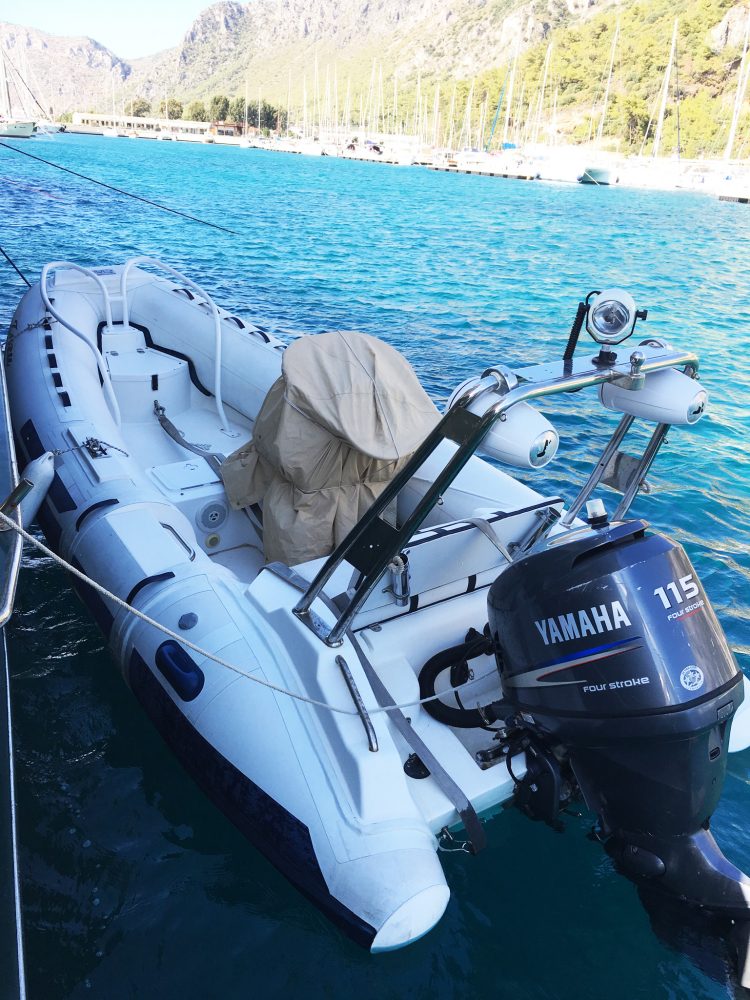

• 6m Nautica tender 6m /115hp 4-stroke outboard
• Maxwell 4500 windlass PTO from port CAT
• 100 Kg anchor
• 90 lb. anchor
• galvanised chain
• Bathing platform aft
• Teak decks
• Varnished teak caprail

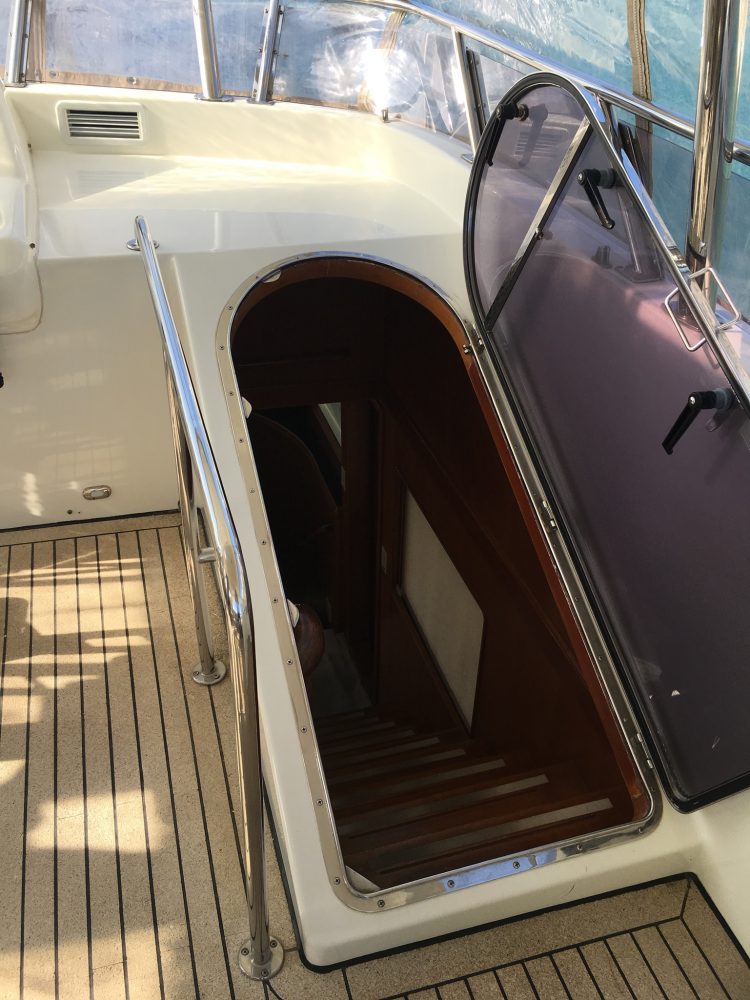

• Aft deck ladder to flybridge
• swim platform with swim ladder
• BBQ grill, sink and U-Line fridge/icemaker in flybridge
• Rod holders
• 2 x Stidd flybridge chairs
• Nautical Structures hydraulic davit, portside top aft deck
• 500kg Davit fore deck
• Arch for instruments
