LADYAR B is a 26.06m luxury yacht, built by Codecasa and delivered in 1984. Her top speed is 11.5kn and
she boasts a maximum cruising range of 2700.0nm at 10.0kn with power coming from two 402.0hp
Caterpillar 3408-C diesel engines. She can accommodate up to 8 people with 5 crew members waiting on
their every need. She was designed by Ugo Codecasa.

Overview
• Name: LADYAR B
• Previous Names: LADY SOHA, NABIL TWO, LADYAR B
• Yacht Type: Motor Yacht
• Builder: Codecasa
• Naval Architect: Ugo Codecasa
• Exterior Designer: Ugo Codecasa

REFITS: 2000/ 2005-2006 / 2010 / 2020

MAIN SPECIFICATION
Length: 26.00 m / 85’ 3’’
Beam: 6.2 m / 20’ 04’’
Builder: Codecasa
Year: 1984 (Refit 2000/1 and 2005/6) – 2010
Construction: Steel & Aluminum
Designer: Codecasa
Classification: Lloyds
Flag: Turkish Flag
Main Engines: 2 x Caterpillar 3408C 402 HP-1800 RPM
Range: 2.400 nm @10knots
Max. Speed: 12 knots
Cruising Speed: 10 knots
Guests: 8
Crew: 6
Asking Price: USD 600,000 (VAT exempt)
Location: Turkey

DIMENSIONS
Length o.a.: 26.00 m / 85’ 3’’
Beam: 6.2 m / 20’ 04’’
Draft: 2.2 m / 7’ 02 ’’
Displacement: 125 tons

CONSTRUCTION

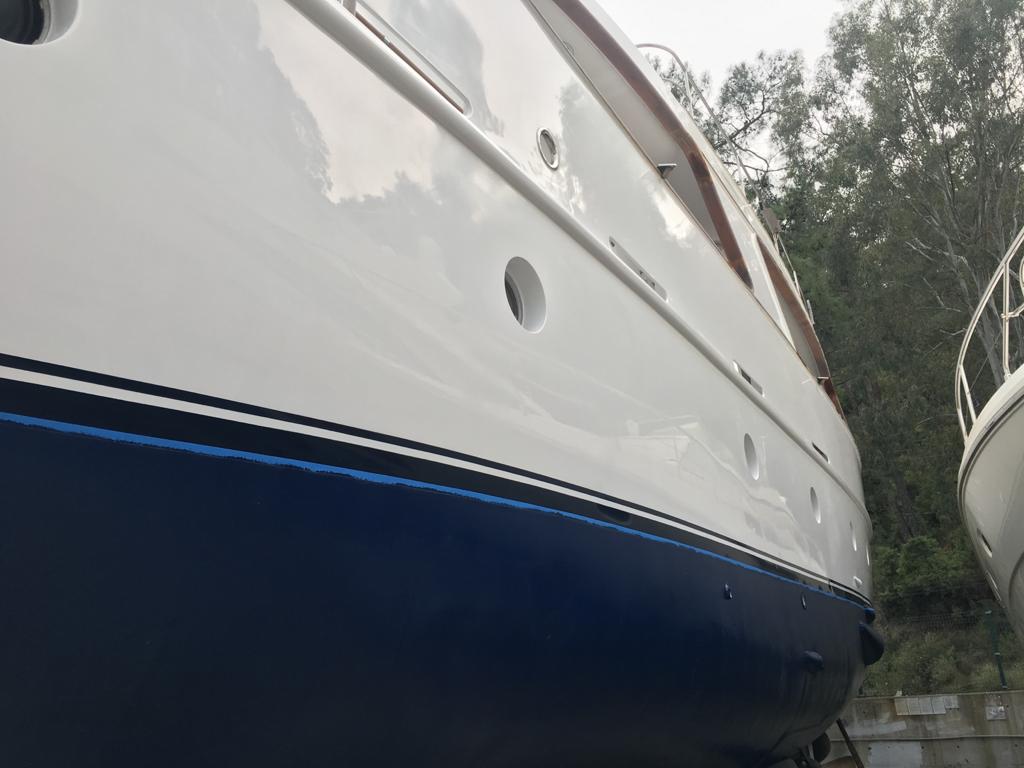

Hull: SteelSuperstructure: Aluminum
Decks: Teak fresh 2010
Naval Architect: Codecasa
External Designer: Codecasa
Internal Designer: Codecasa
CLASSIFICATION
Class: Lloyds

PERFORMANCE
Maximum velocity: 12 knots
Cruising velocity: 10 knots
Consumption (approx.): 65 liters/ hr. approx.
Range: 2.400 nm @ 10 knots MACHINERY
Engines: Twin engine Caterpillar 3408 TA A rated Diesel, 402HP at 1,800rpm
Engine hours: 5300 hrs
Generators: 2 x Kohler 33 KVA (PS fresh 2006, STBS fresh 2008)
Generator hours: 3500 hrs

STEERING & PROPULSION
Steering: HydraulicPropellers: Fix Pitch 5 BladeGearbox: 3.88 : 1

AUXILIARY EQUIPMENT
Water maker: Yes
Stabilizers: Hydraulic
Fuel separator: Yes
Air-conditioning: Yes
Toilet unit: Yes
Boilers: Electric hot water boiler

TANKAGE (approximate)
Fuel: 22,000
Fresh water: 12,000
Grey water: 2,000
Black water: 2,000

ELECTRICAL SYSTEM
Voltage: 3X220 VFrequency: 50 HzShore potential converter: Yes
Inverter: Yes
Batteries:
Service : 24 stationery 2 V each fresh 2014, Starter : 4 ea. 200 Amp fresh 1014, Communication/ nav : 4 ea.
100 amp fresh2014

NAVIGATION EQUIPMENT
Magnetic compass: Yes
Gyro compass: Yes
Depth sounder: Yes
Sonar: Yes
Autopilot: Yes
Radar: 2 xElectronic blueprint unit: Yes
GPS: Yes and DGPS

COMMUNICATION AND SATELLITE EQUIPMENT
Inmarsat: CNavtex: Yes
SSB radio: Yes
VHF: 2 x Mini M: Yes
VHF hand held radio: Yes
Printer / fax: Yes

ENTERTAINMENT EQUIPMENT
TV/ DVD: Yes
Satellite: Yes
Music unit: Yes

DOMESTIC APPLIANCES, EQUIPMENT AND LAUNDRY
Refrigerator: Yes
Freezer: Yes
Oven: Yes
Stove: Yes (gas + electric)
Microwave: Yes
Dishwasher: Bec
oWashing machine: Beco
Dryer: Bosch

ACCOMMODATION
8 visitors in 4 staterooms and 6 team in 3 compartments4 visitor compartments: 2 double berths, 4 single
berths, 4 quantity
Flying BridgeWheelhouse, large settee shaded by a bimini top with a dining desk for ten.Refrigerator and ice
maker
Main DeckOwner’s Cabin with a king dimensionsd cot, wardrobe and a lady dressing desk.
Ensuite powder room fully provisioned.
GalleyDining RoomSaloon with coffee desk, armseats and settee.
TV and player machinery.
Aft deck provisioned with a round desk and seats.
Capstain and gangway.
Lower DeckChain safe.
Crew’s quarters with 3 double compartments with ensuite powder room.
Emergency exit.
Laundry area.
Two cotded visitor compartments with powder room.
From the bar there is an aft staircase going to the VIP king dimensions cotded compartment with powder
room.
A lazarette is accommodating the rudder and some storing space.

DECK EQUIPMENT
Anchors & chain: 2 x 140 kg mainstays, 2 x Anchor Chain 18 mm
Cranes: Electric davit for 800 kg
Windlass: Electric heavy duty
Passarelle: Yes, with electric pulley
Bathing ladder: Yes
Bimini top: Yes
Stern capstans: Yes
